Input Shaft: Service and Repair

Input Shaft

Disassembly






1. Position Bearing Splitter, D84L-1123-A or equivalent behind the bearing and press the input shaft out of the bearing. Discard the bearing.

Assembly

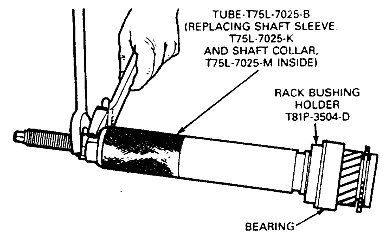

1. Position a new bearing on the input shaft and press the bearing onto the shaft using Tube, T75L-7025-B, Replacing Shaft Sleeve, T75L- 7025-K, Shaft Collar, T75L-7025-M and Rack Bushing Holder, T81P-3504-D (or an appropriate size washer).
