Countershaft: Service and Repair

Countershaft

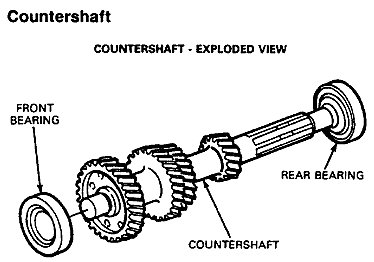

COUNTERSHAFT - EXPLODED VIEW

Disassembly

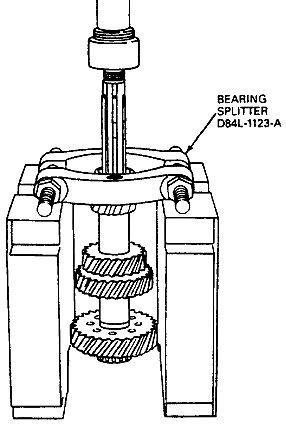

1. If required, press the front and rear bearing off the countershaft, using Bearing Splitter, D84L-1123-A or equivalent. Remove and discard the bearings.

Assembly

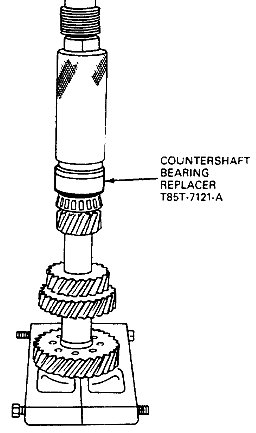

1 Press new bearings on the countershaft using a press and Countershaft Bearing Replacer, T85T-7121-A or equivalent.
