Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
1989
>>
F 250 4WD Pickup V8-7.3L DSL
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
Differential Technical Data
>>
Front Differential
>>
Dana 44 IFS-HD
Dana 44 IFS-HD

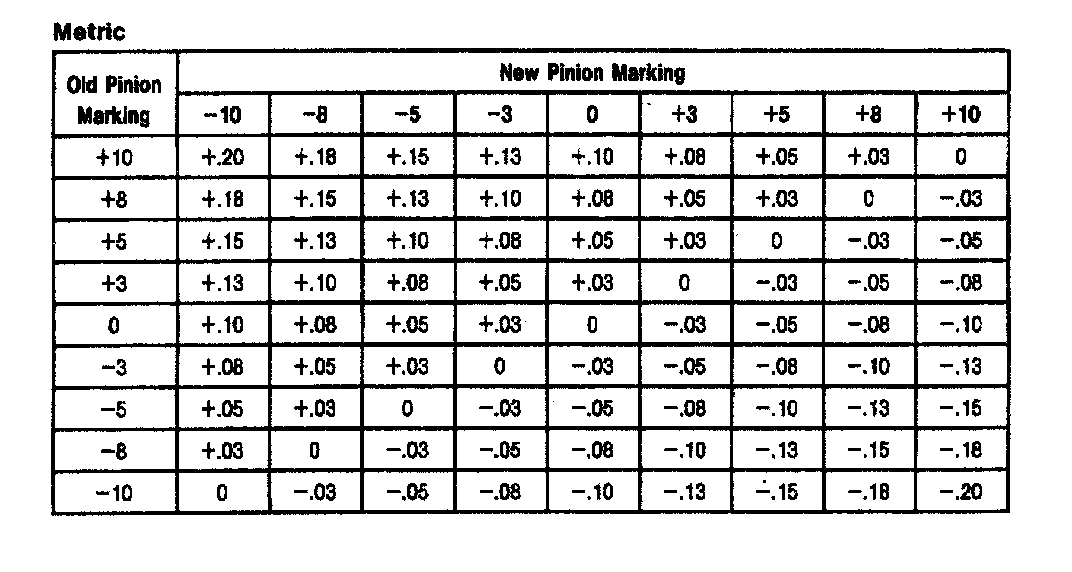

Dana 44 IFS HD, Differential Shim Chart:
Dana 44 IFS HD, Differential Shim Chart:
Dana 44/50 IFS, Ring Gear Backlash:
