Solenoid Vacuum Valve Assembly

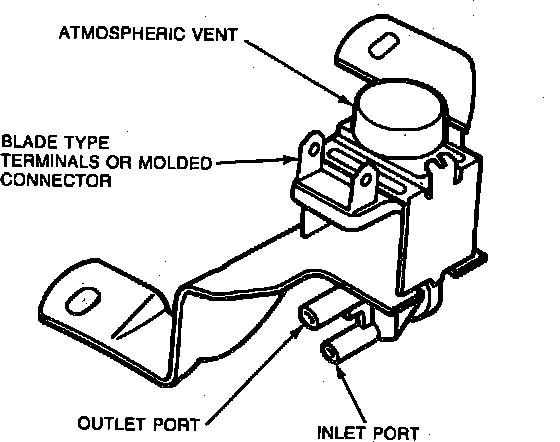

Typical Solenoid Valve Assembly:

Functional Check

1. Determine the function of valve by externally energizing with vacuum pump and output gauge, air should flow.
2. Check the resistance of each at the coil terminals, the resistance should be between 51 and 108 ohms.
3. If resistance is not within these values, the solenoid should be replaced.
