Fuel Injector Cooling Fan Control Module: Locations

The Cooling Fan Motor is located at the Right Hand inner fender.

The Injector Blower Relay is located behind the Instrument Panel near the fuse panel.

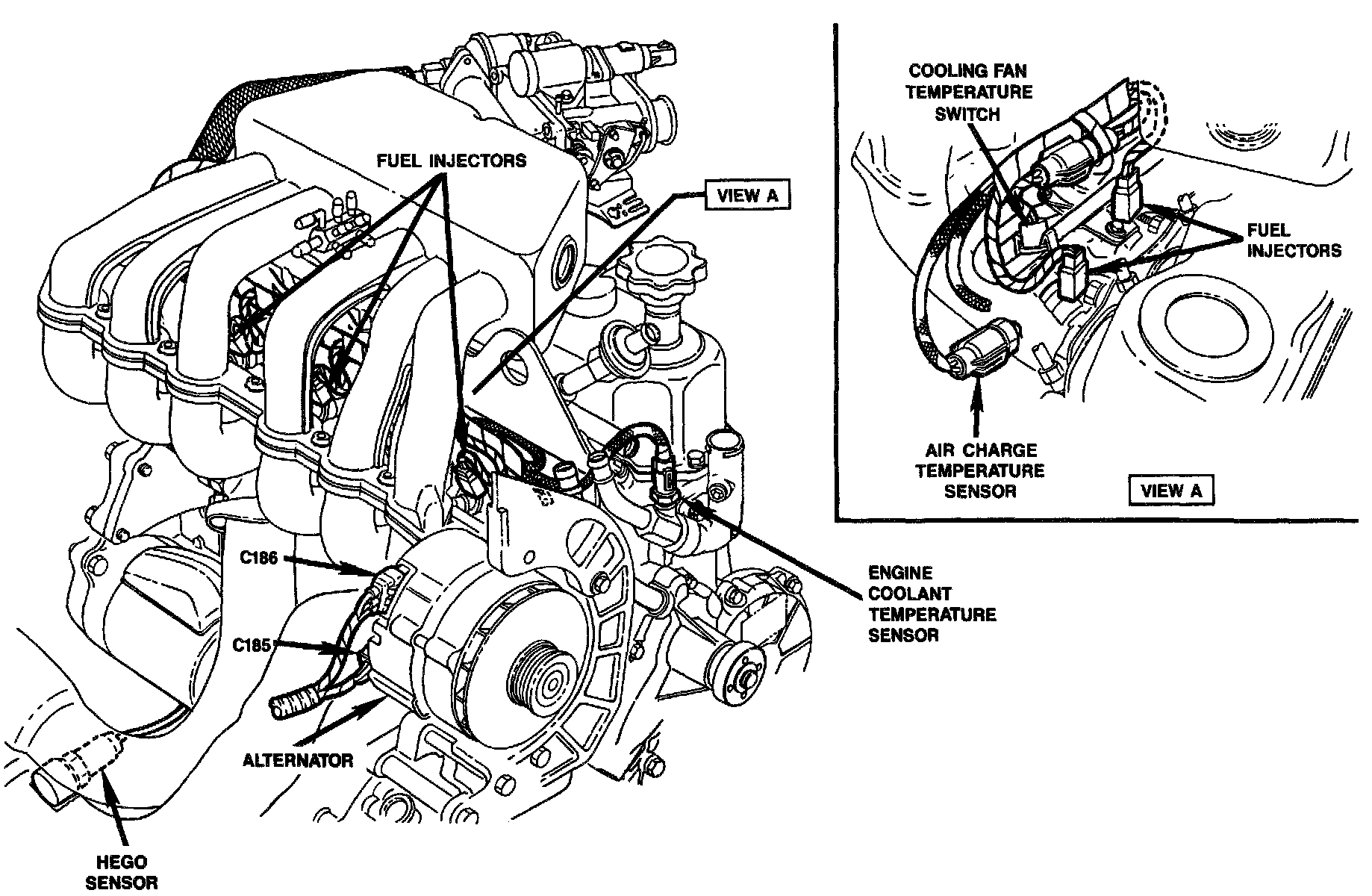

RH View 4.9L EFI Engine:

The Cooling Fan Temperature Switch is clipped to the fuel rail near Number 1 fuel injector.
