Air Injection Muffler: Testing and Inspection

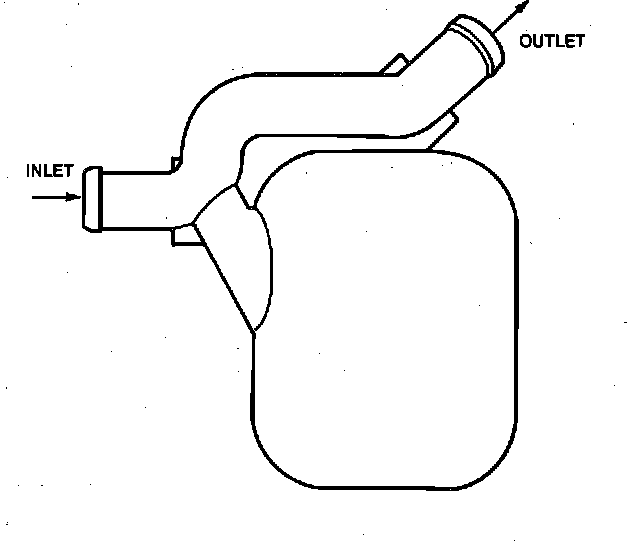

Air Pump Resonator:

Function Check

1. Visually inspect for hoses.
2. Remove hoses and check for restricted/blocked ports.
3. If part has holes or ports are restricted/blocked replace resonator.
4. Reconnect hoses, install clamps, and tighten to specification.
