Fuel Pump Relay
Fuel Pump Relay

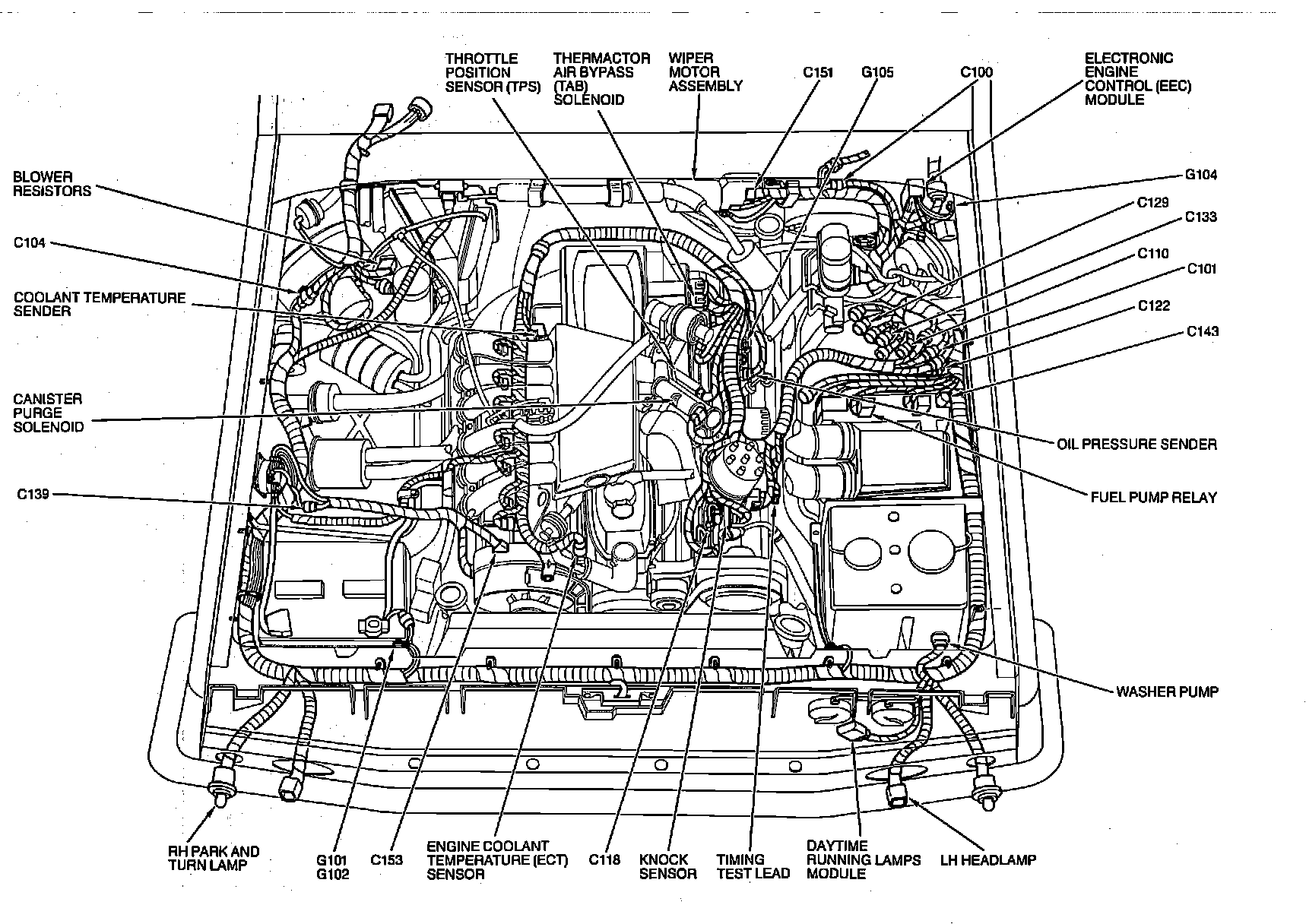

Under Hood Locations:
The Fuel Pump Relay is located under the plastic shield at the air cleaner support bracket.
