Ford Truck
>>
1989
>>
F 150 4WD Pickup V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
>>
System Diagram
System Diagram

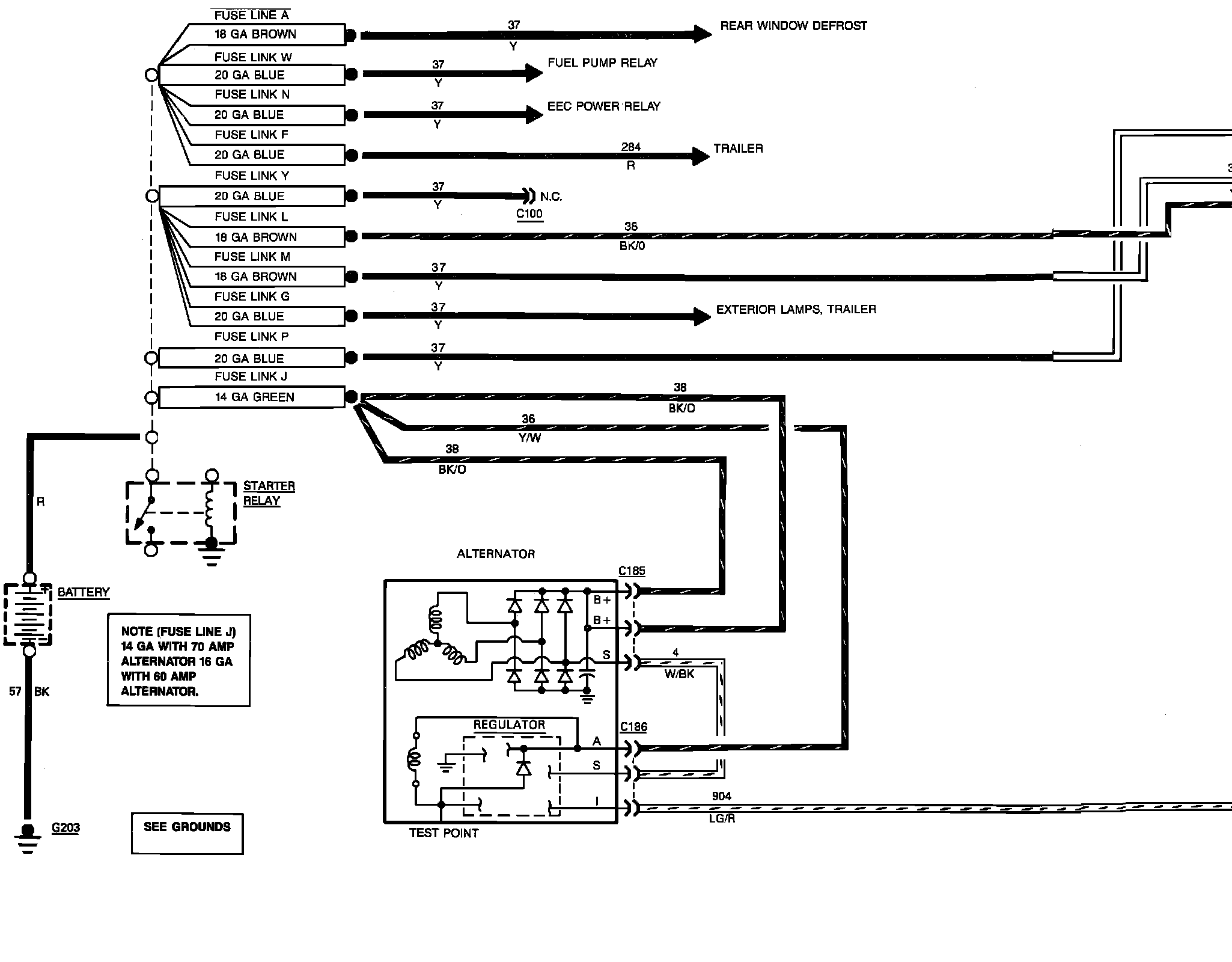

�d`F��`FCharging System & Power Distribution:
