Ford Truck
>>
1989
>>
F 150 2WD Pickup V8-351 5.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Timer Unit
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

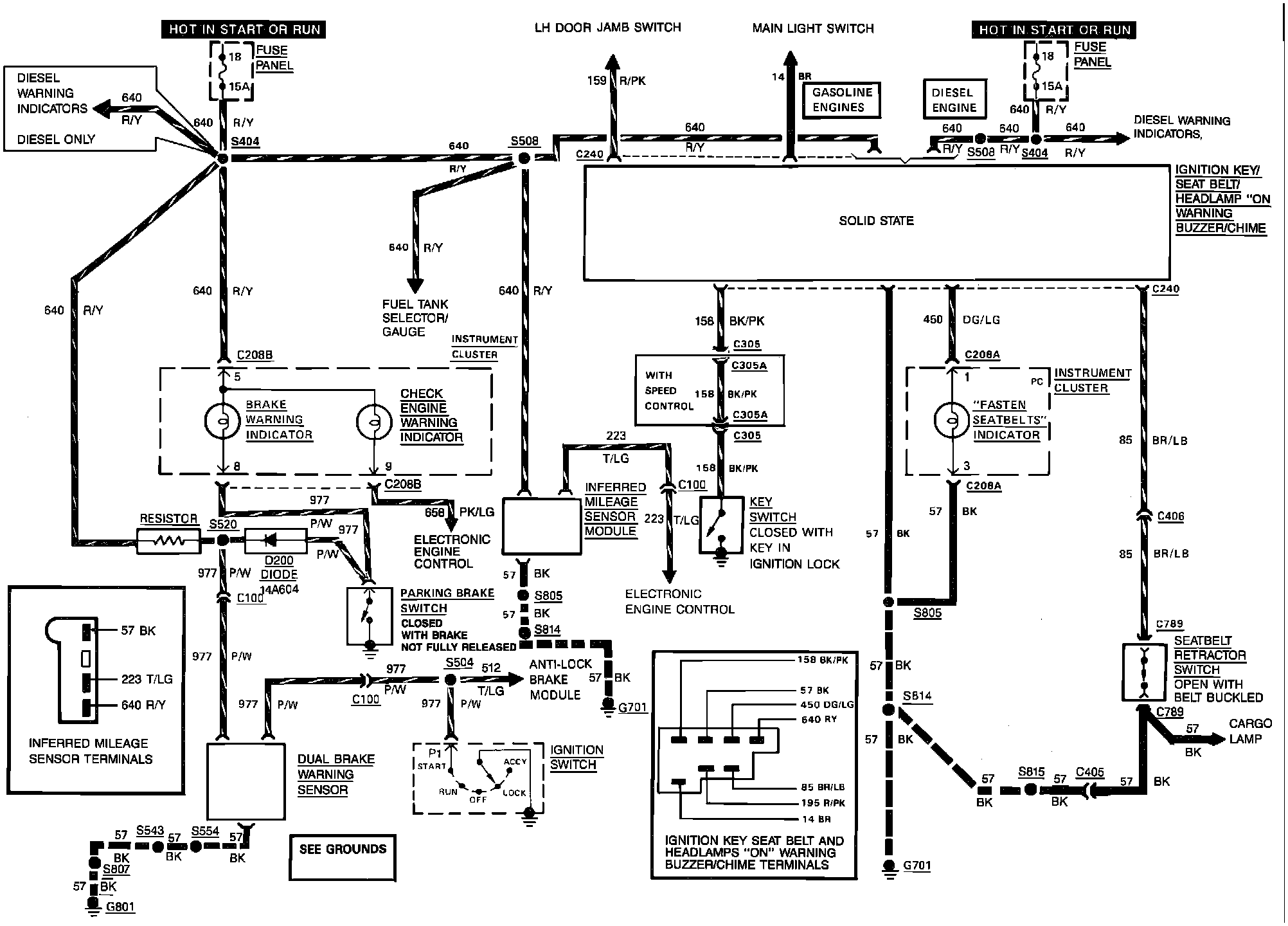

Warning Indicator - Brake, Ignition & Seatbelt:
