Valve Body, Intermediate Band Servo

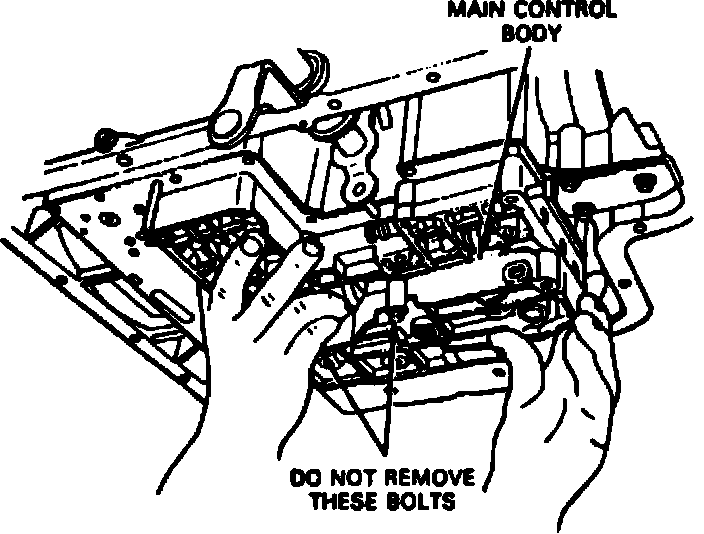

Fig. 8 Removing Main Control Body:

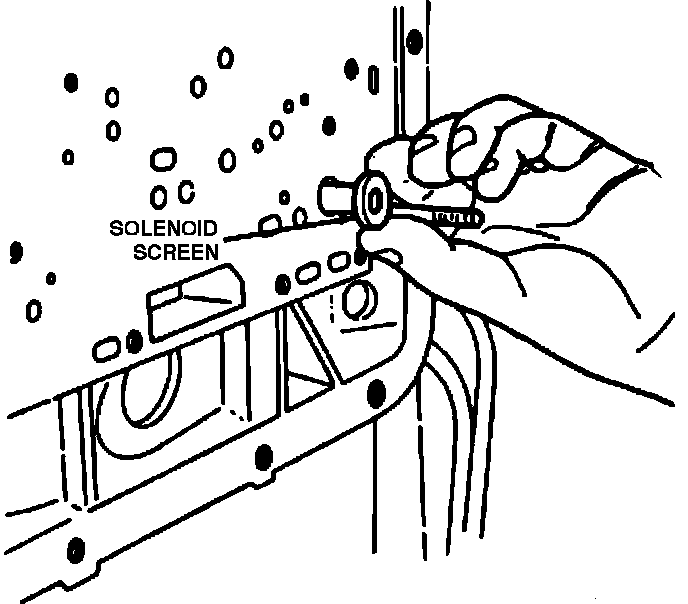

Fig. 9 Removing Separator Plate And Gasket:

1. Disconnect battery ground cable.
2. Raise and support vehicle.
3. Loosen oil pan attaching bolts and drain fluid from transmission, then remove attaching bolts and pan.
4. Remove filter and gasket.
5. Remove accumulator body and main control body attaching bolts, Do not remove two bolts, as shown in Fig. 8, from main control body.
6. Remove solenoid body attaching bolts. Remove solenoid body by pushing down on solenoid body receptacle.
7. Remove solenoid screen by turning counterclockwise and pulling out, as shown in Fig. 9.
8. Remove three reinforcing plate attaching bolts, then remove plate.

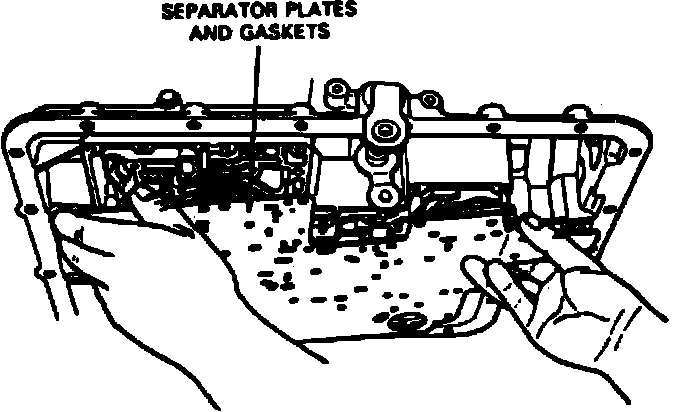

Fig. 10 Removing Intermediate Separator Plate And Gaskets:

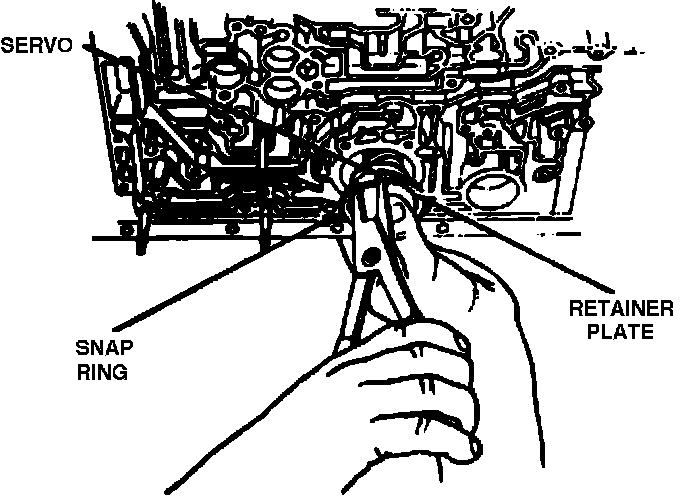

Fig. 11 Removing Intermediate Band Servo Assembly:

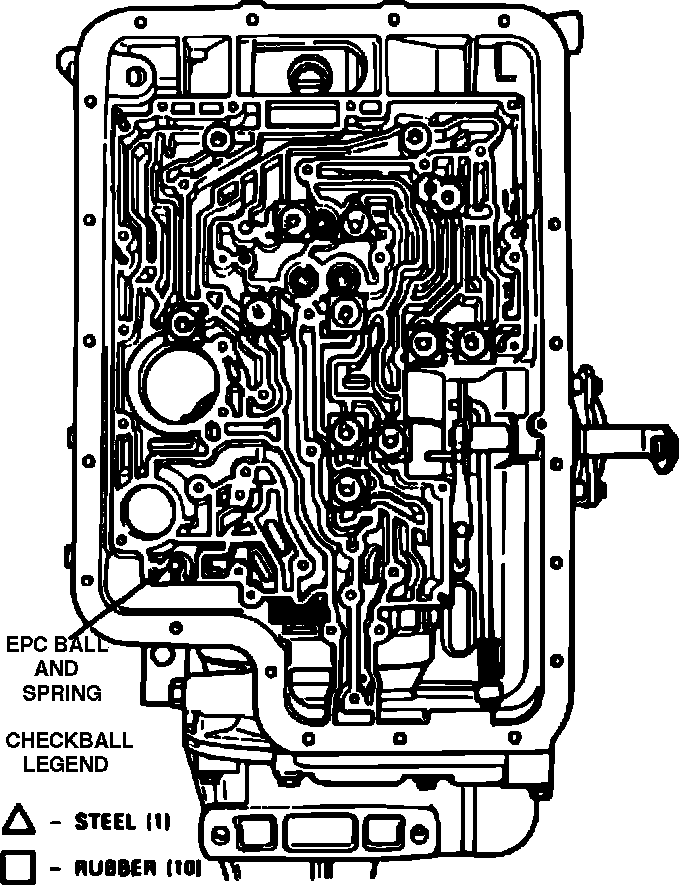

Fig. 12 Check Ball Location (Units W/10 Rubber Check Balls And 1 Steel Check Ball):

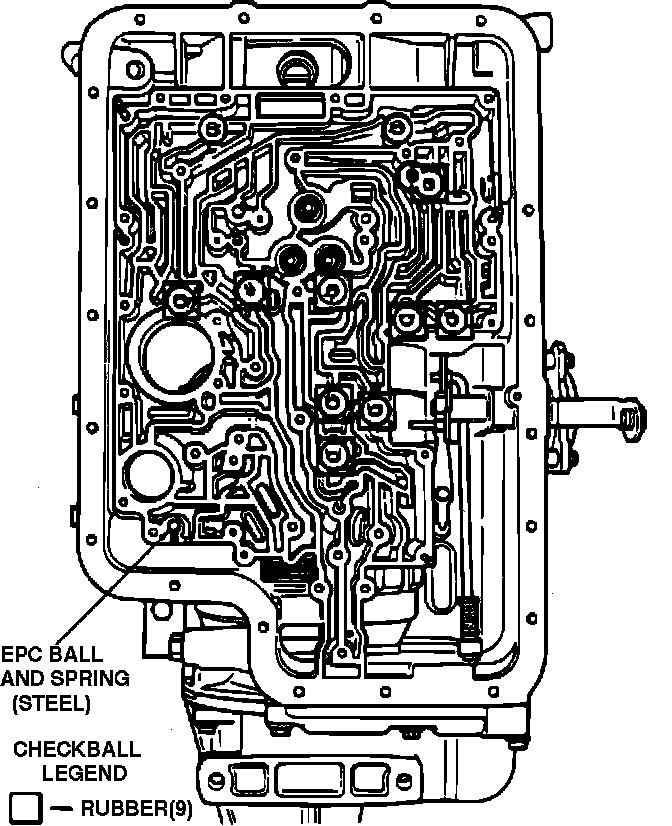

Fig. 13 Check Ball Location (Units W/9 Rubber Check Balls):

9. Carefully lower separator plate and gasket so check balls, EPC ball and spring are retained, Fig. 10.
10. Remove servo snap ring and retaining plate, piston, rod assembly and servo spring, Fig. 11.
11. Reverse procedure to install, noting the following:
a. Ensure eleven check balls and EPC ball and spring are in proper position, Figs. 12 and 13.
b. Torque reinforcing plate, main control body, accumulator body and solenoid body attaching bolts to 80-100 inch lbs.
c. Torque pan bolts to 10-12 ft. lbs.
