Exhaust System - Excessive Heat On Cargo Floor

89ford21

EXHAUST SYSTEM-HEAT OVER EXHAUST SYSTEM

HEAT-DEFLECTORS-EXCESSIVE HEAT OVER EXHAUST SYSTEM

Article No. 89-14-14

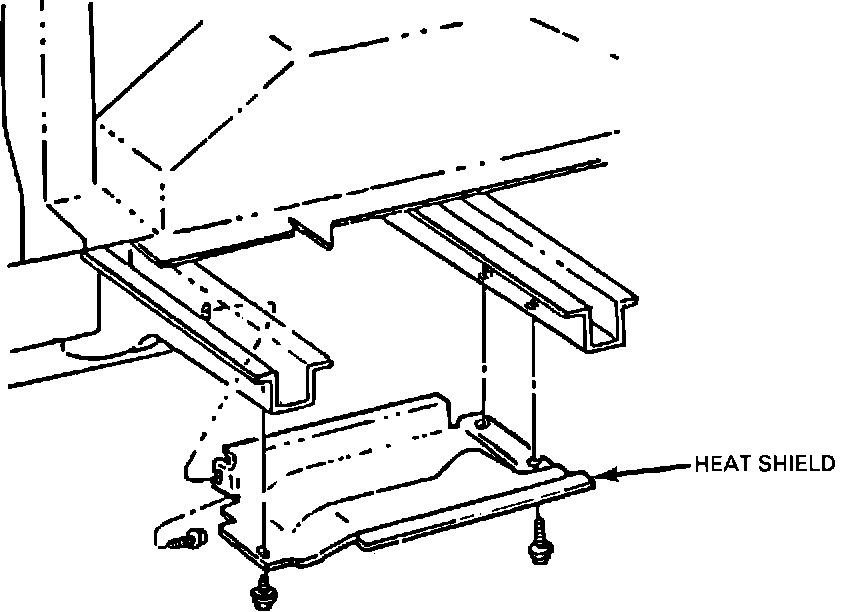

Figure 1:

LIGHT TRUCK: 1985-87 ECONOLINE


ISSUE: The rear cargo floor area may become warm over the exhaust system.

ACTION: Install heat deflectors as shown in Figure 1. Refer to the following application chart and parts table for correct service parts usage.

APPLICATION CHART - HEAT SHIELDS

WHEELBASE PART NUMBER PART NAME CLASS

ALL E7UZ-5D226-A HEAT SHIELD, MUFFLER C
138" D5UZ-11112B28-A HEAT SHIELD, REAR FLOOR C
124" E7UZ-15112B28-A HEAT SHIELD, REAR FLOOR C

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 1200, 4600
