Diesel Engine RPM Sensor - Manual Correction

Article No.
89-1-16

01/11/89

^ Transmission - E4OD - 7.3L Diesel RPM Sensor Diagnostic Procedure -
Shop Manual Correction

^ EEC IV - E4OD - 7.3L Diesel Engine RPM Sensor Diagnostic procedure - Shop
Manual Correction

LIGHT-TRUCK:
1989 E & F-SERIES

ISSUE:

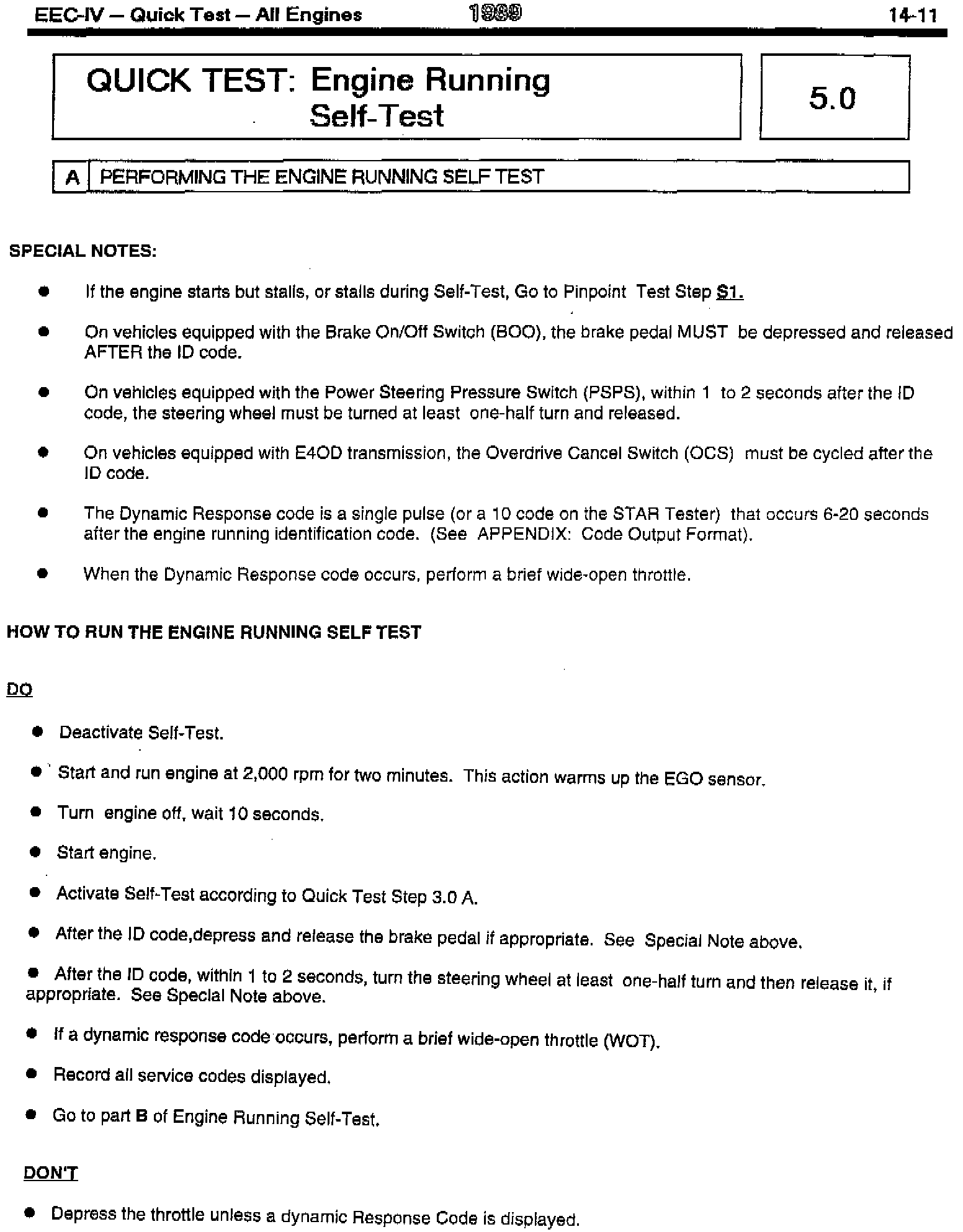

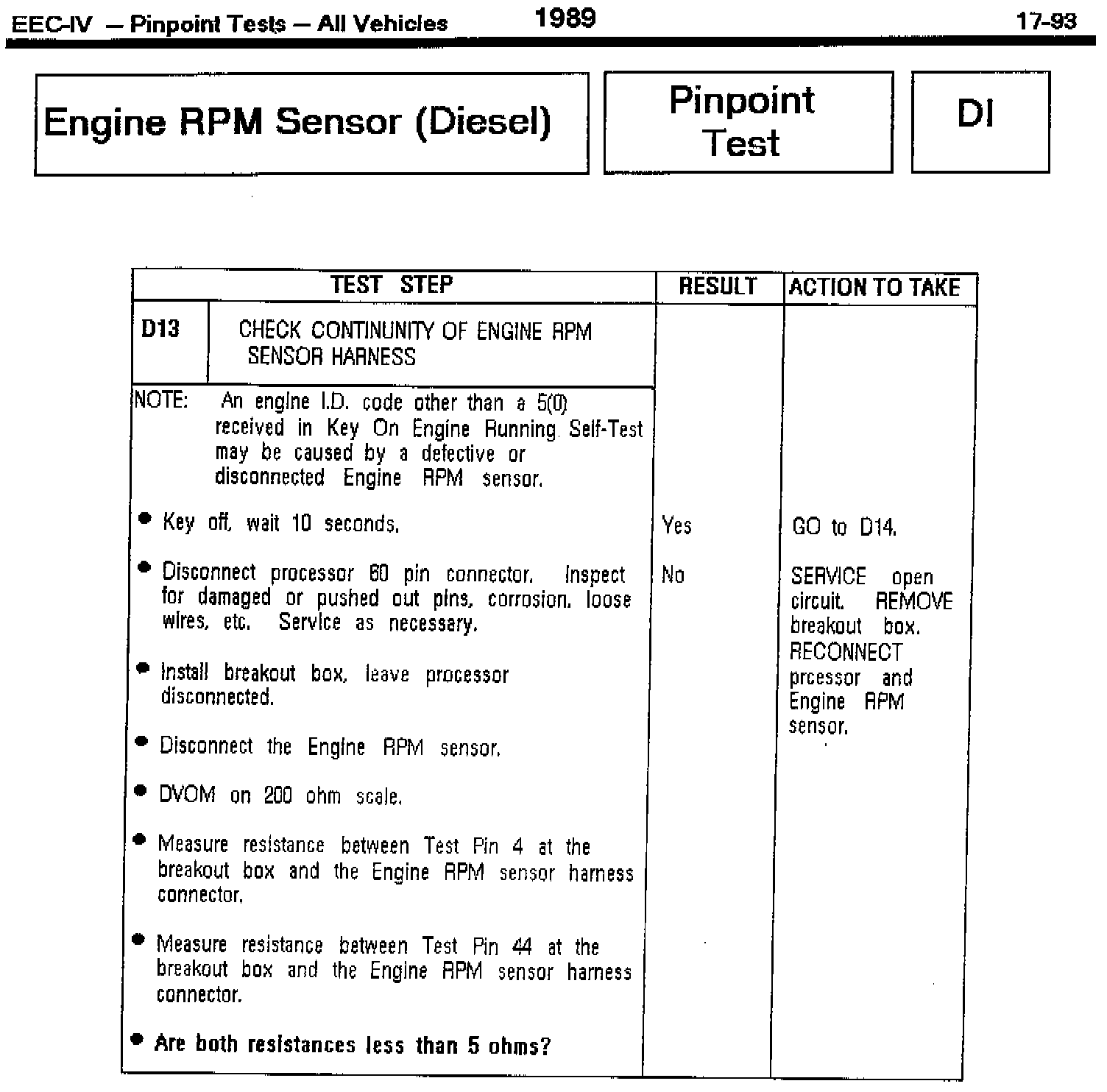

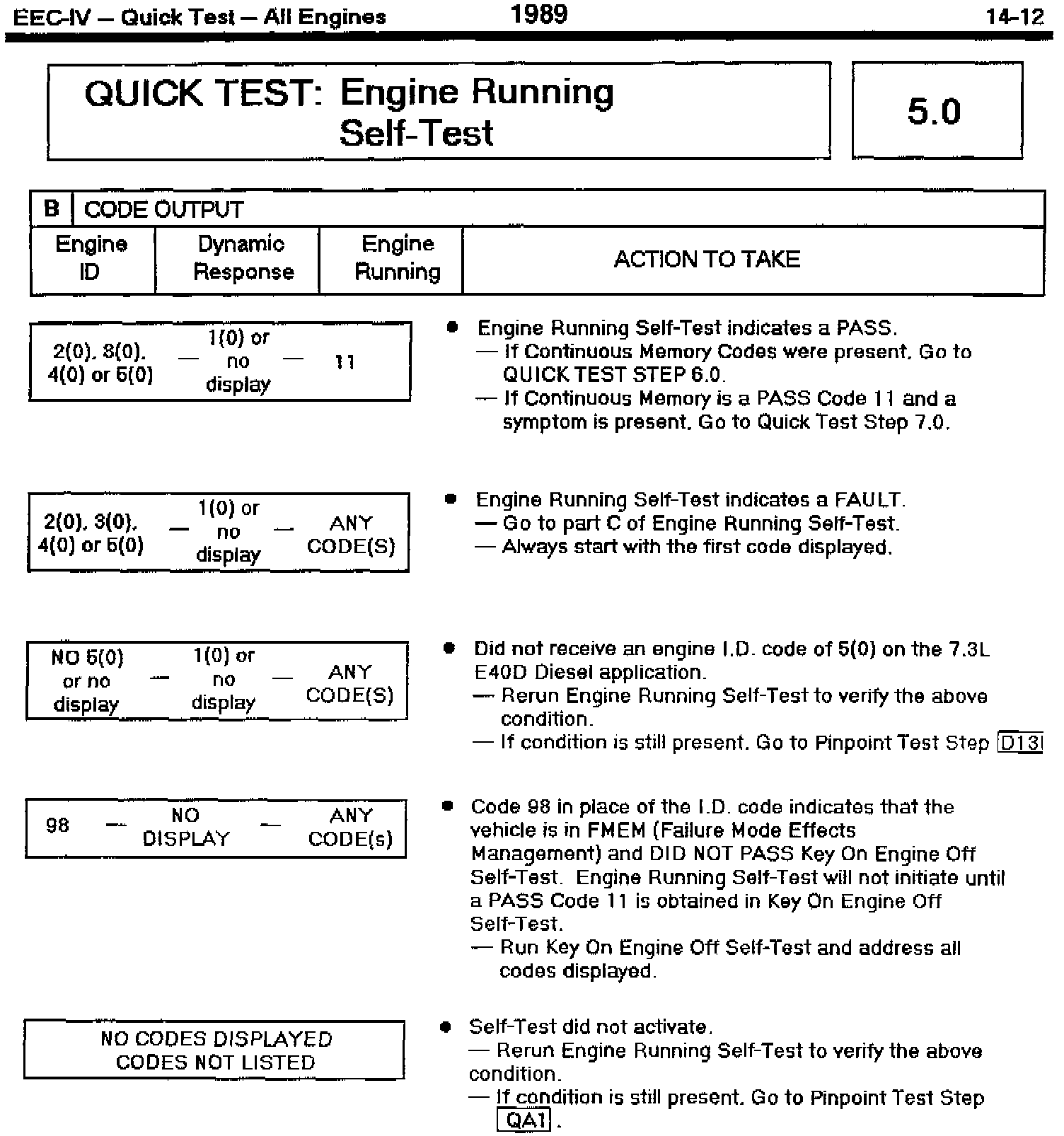

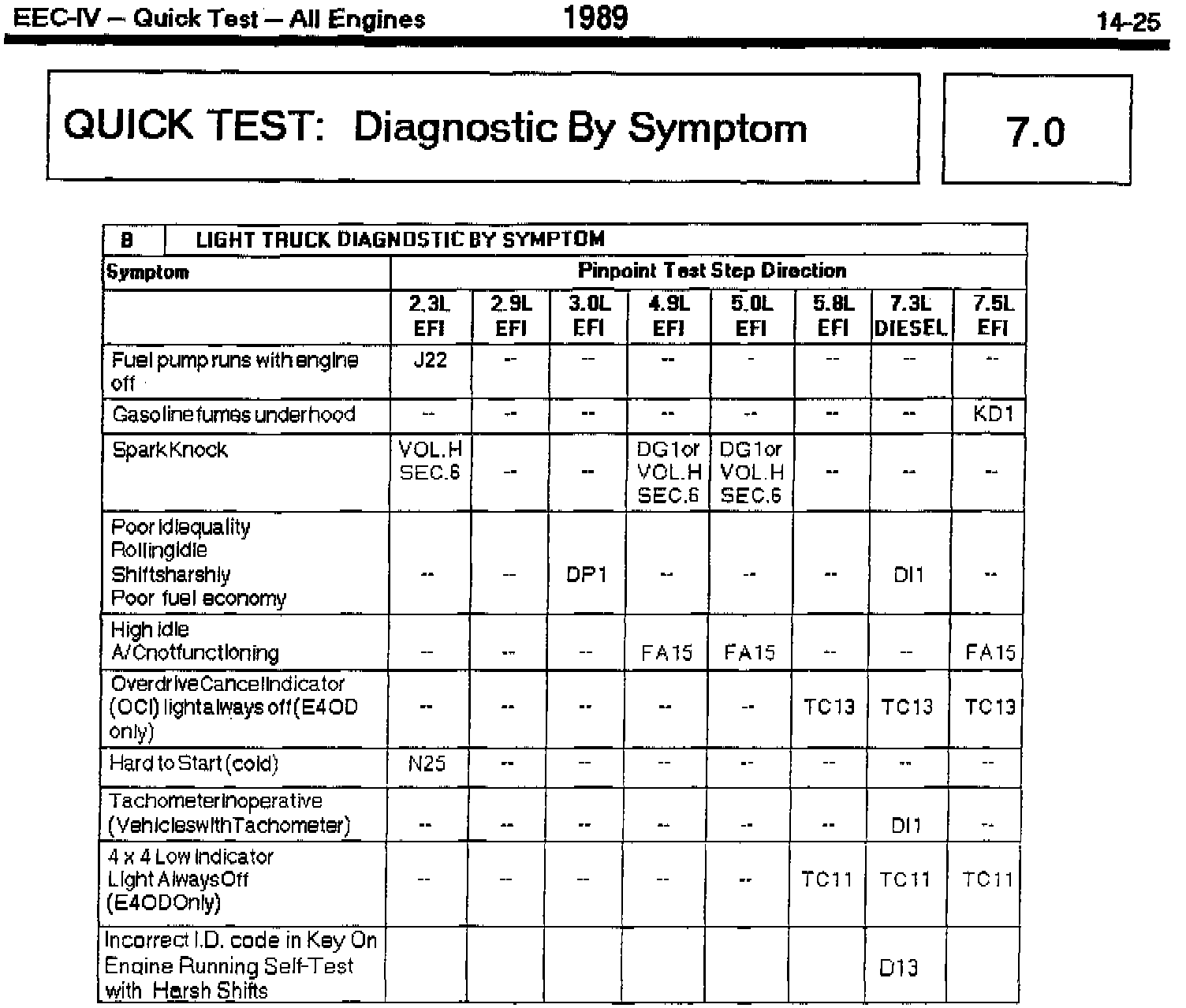

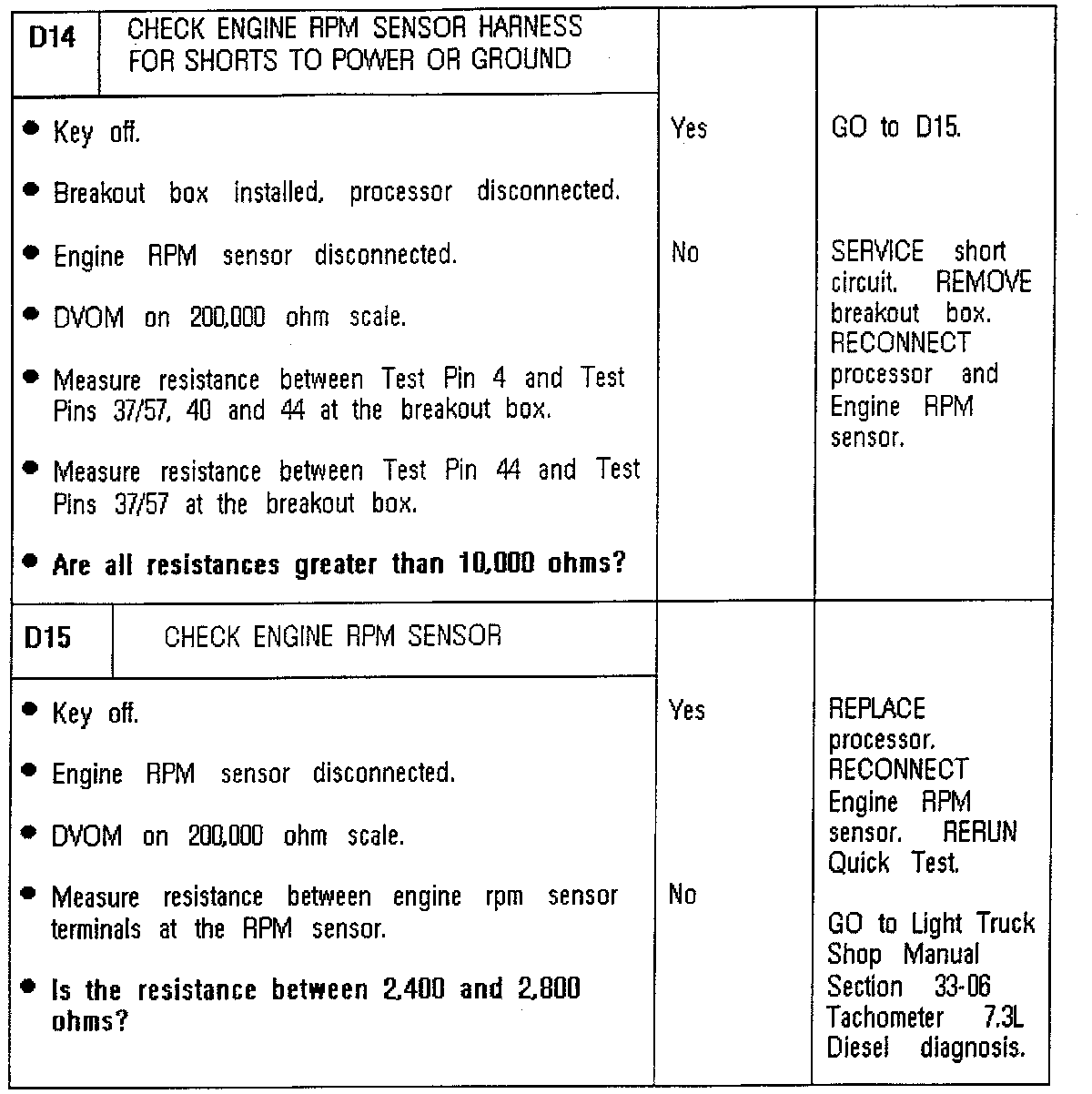

The quick test and pinpoint test information to diagnose the engine RPM sensor on the 7.3L diesel engine are incorrect as published in the 1989 Engine/Emissions Diagnosis Manual, Volume H, Sections 14-12, 14-25 and 17-93.

ACTION:























Use the procedures to diagnose Engine RPM sensor concerns. This information should be inserted in your 1989 Engine/Emissions Diagnosis Manual, Volume H, Sections 14, 14-25 and 17-93.

OTHER APPLICABLE ARTICLES: NONE

WARRANTY STATUS: INFORMATION ONLY

OASIS CODES: 5200, 5300, 5800, 680000
