Home
>>
Ford Truck
>>
1989
>>
E 250 Van V8-7.3L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

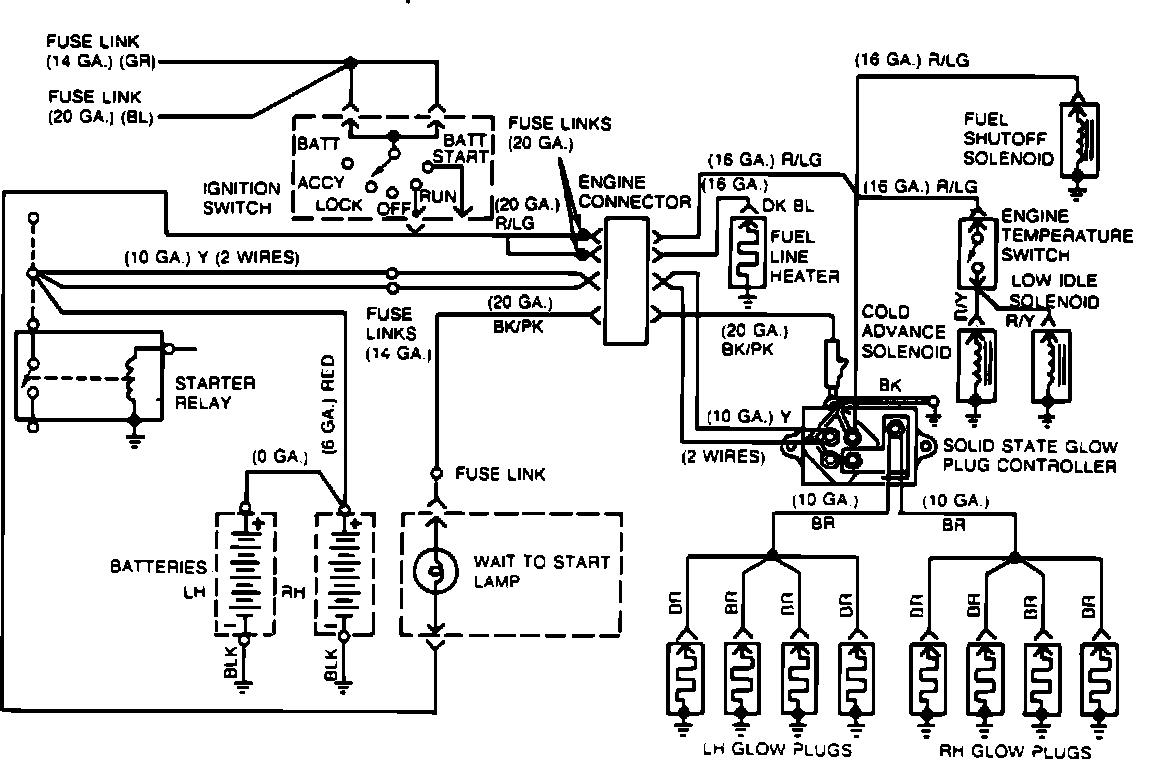

xq�.Glow Plug Control:

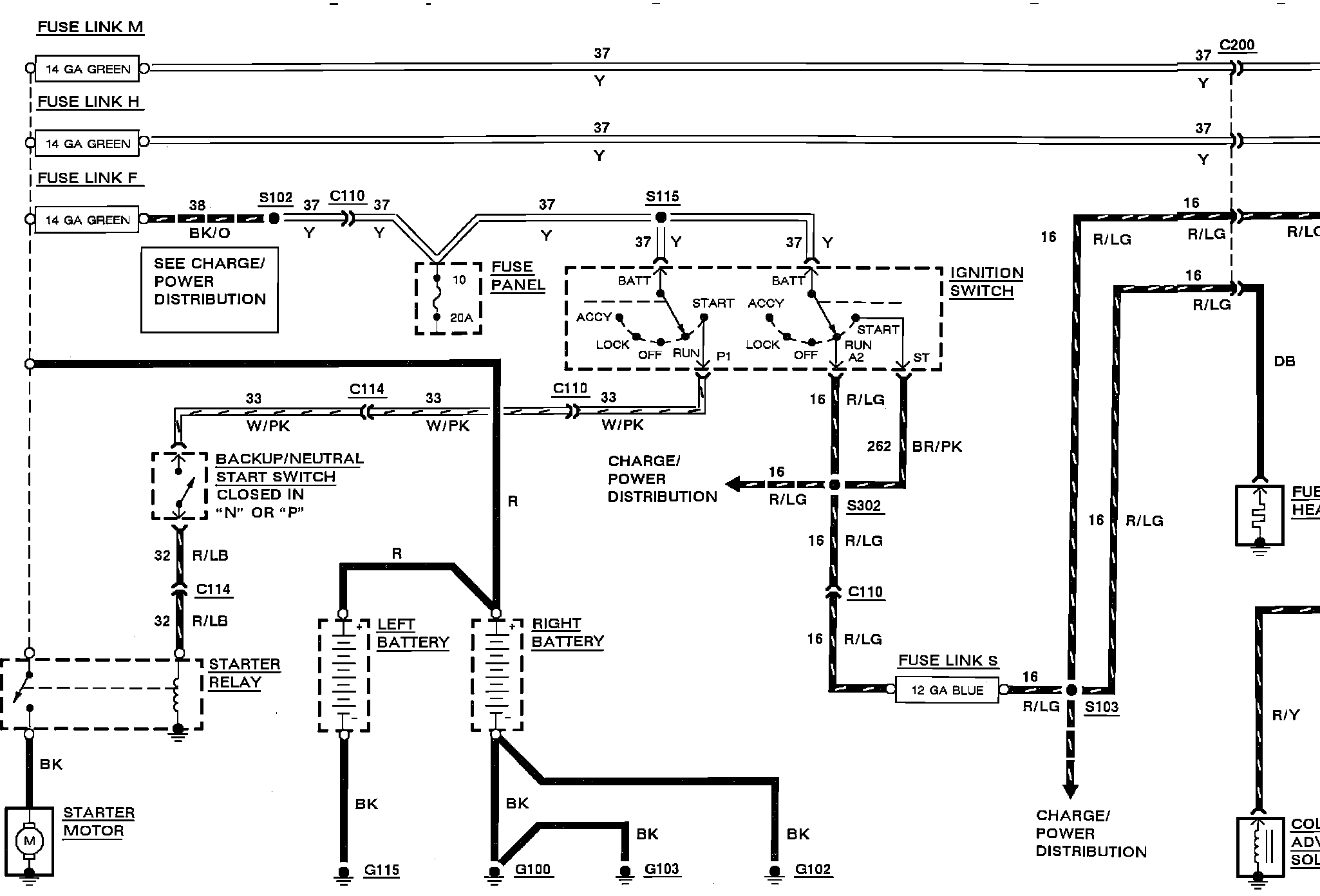

Glow Plug & Starting:
Glow Plug System:
