Home
>>
Ford Truck
>>
1989
>>
E 250 Van V8-7.3L DSL
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

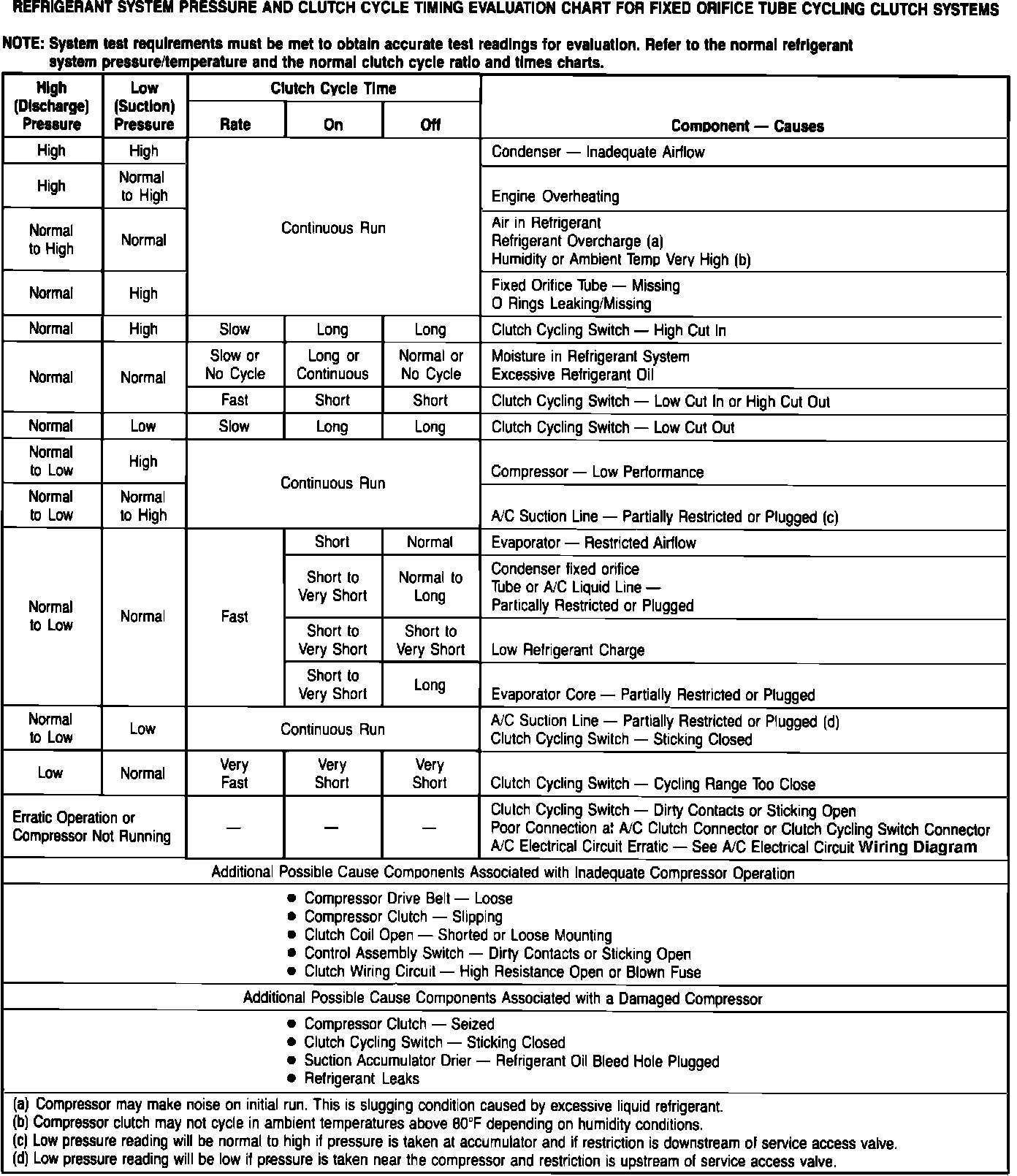

Fig. 14 Refrigerant system pressure evaluation chart:
