Home
>>
Ford Truck
>>
1989
>>
E 250 Van V8-7.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution
>>

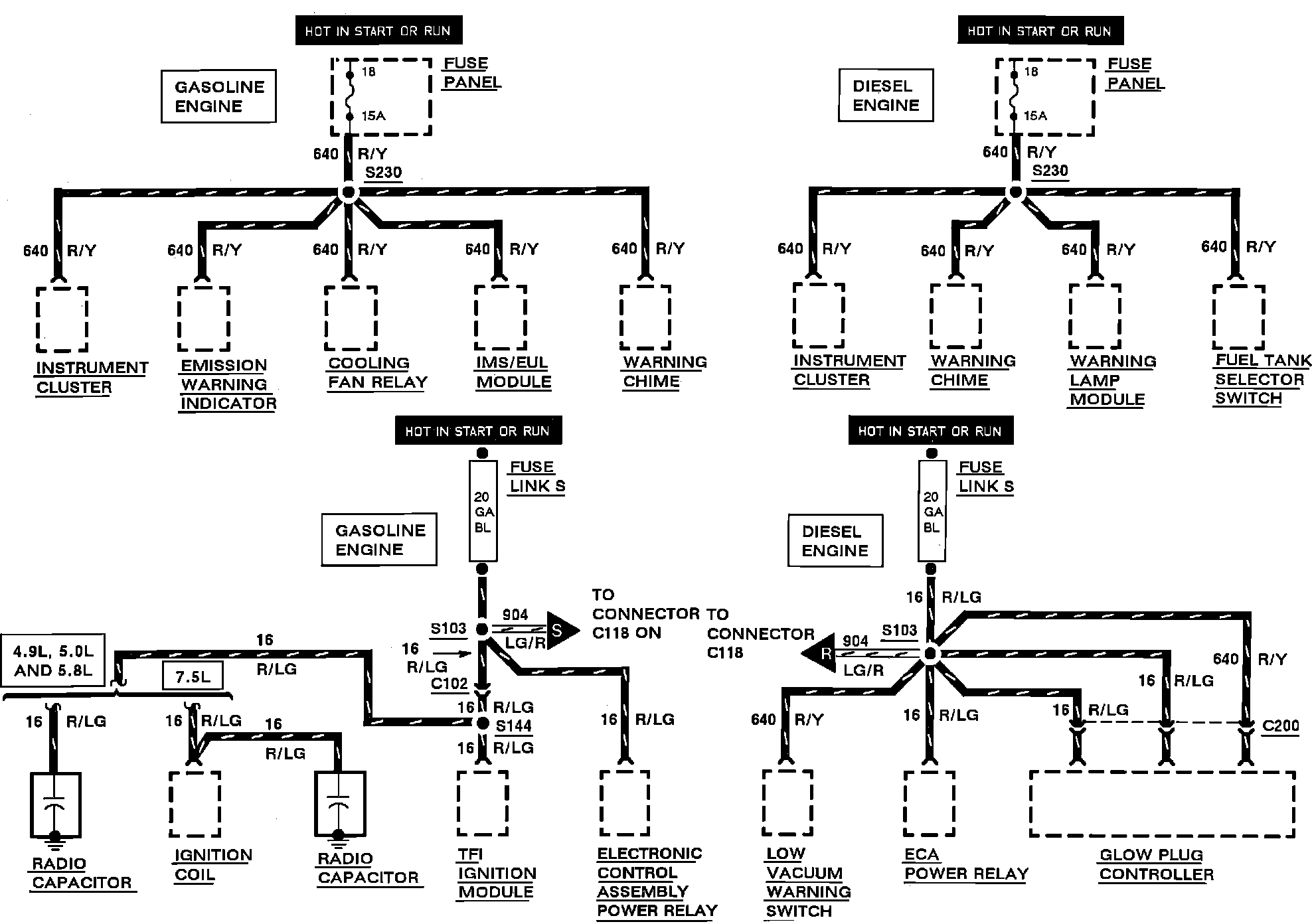

Fuse 18 & Fuse Links
Fuse 18 & Fuse Links
Fuse 18 & Fuse Link S:
