Cruise Control Vacuum Vent Solenoid: Adjustments

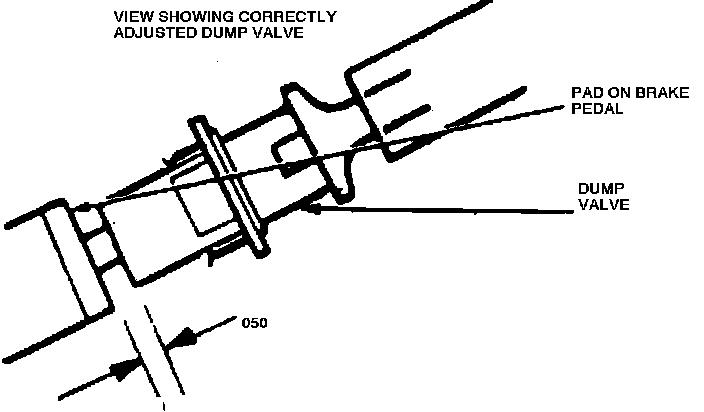

Fig. 25 Vacuum Dump Valve Adjustment:

1. Move valve forward in retaining clip with valve plunger contacting brake pedal adapter and pedal in released position until 1/8 or less of plunger shows, Fig. 25.
2. Ensure brake pedal is against stop in release position after adjustment.
