Home >> Ford Truck >> 1989 >> E 150 Van V8-351 5.8L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Starting and Charging >> Starter Relay >> Locations

Starter Relay: Locations

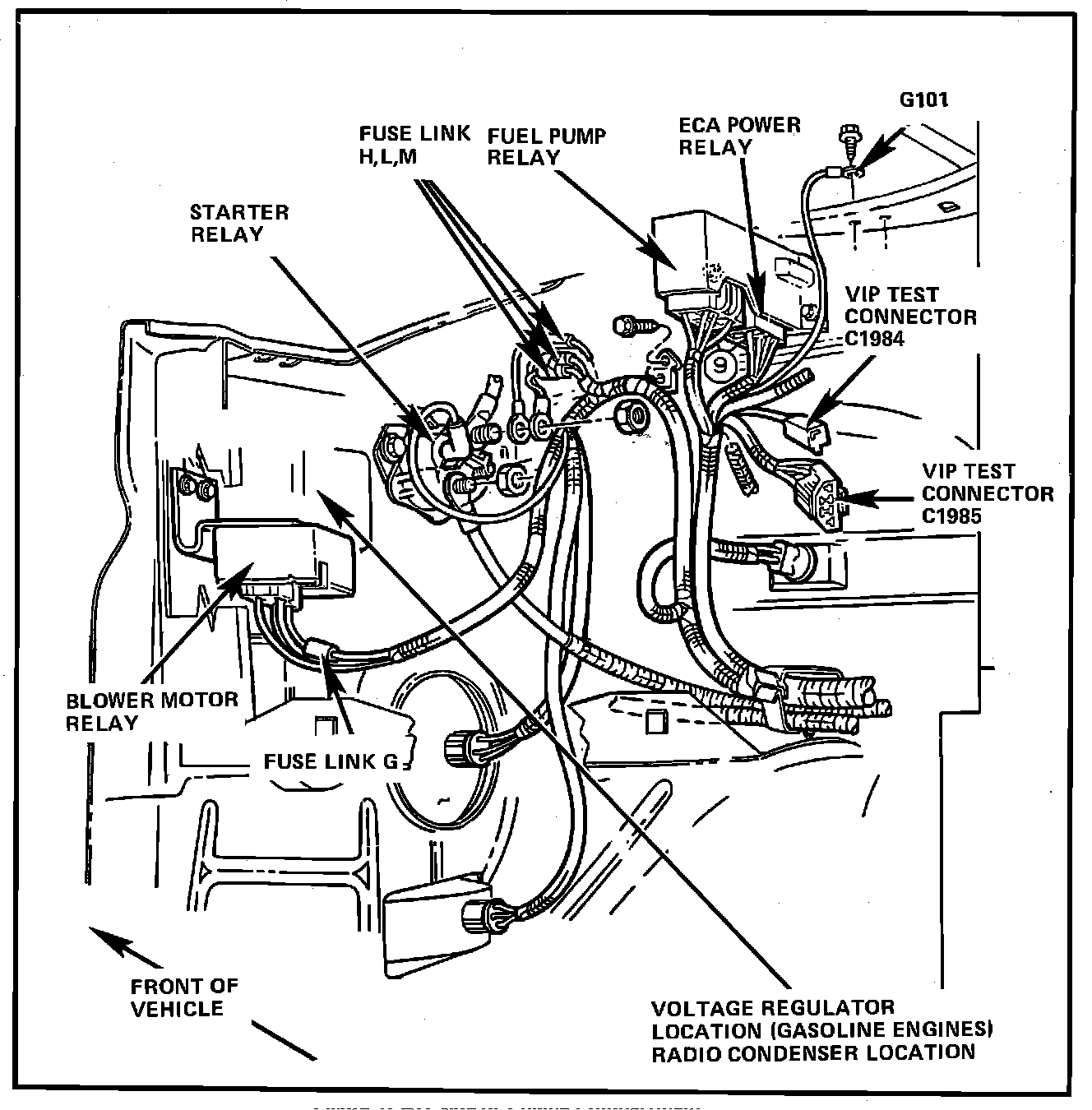

Component Locations - RH Side Of Engine Compartment:
