Charging System
>>
System Diagram
System Diagram

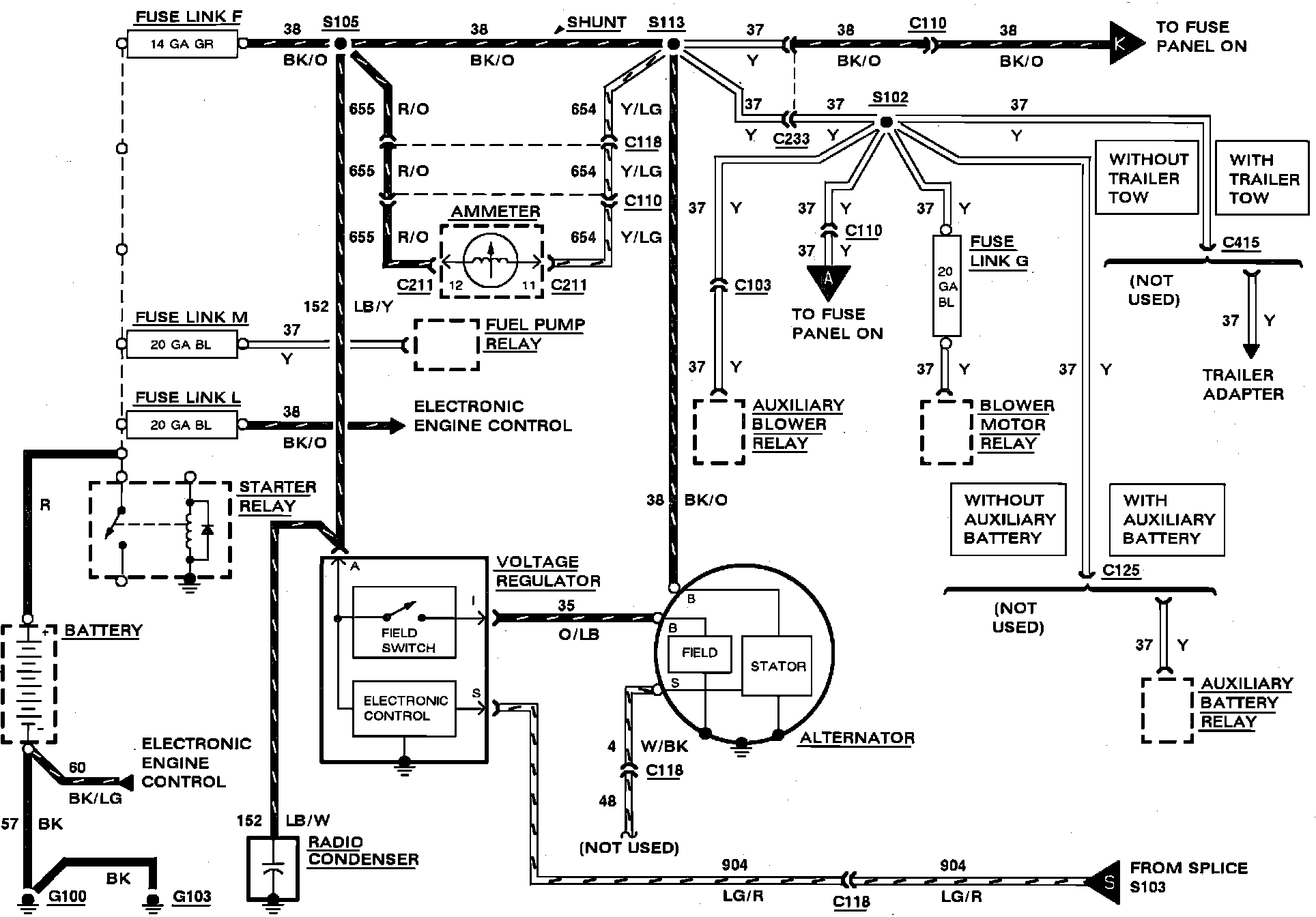

External Regulator W/Ammeter:

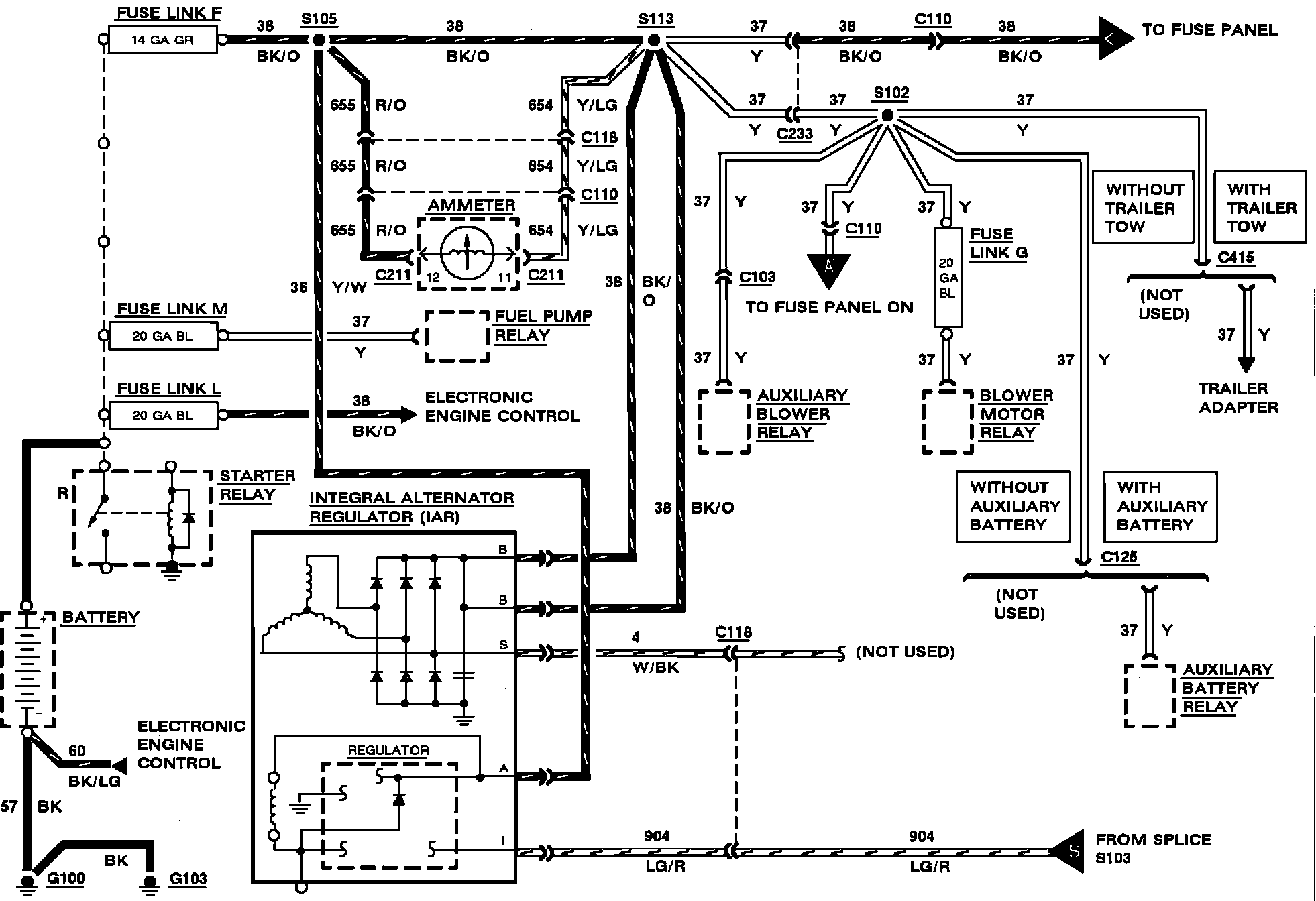

Integral Regulator W/Ammeter:
