Ford Truck
>>
1989
>>
Bronco II 4WD V6-177 2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transfer Case
>>
Electric Shift Control
Electric Shift Control

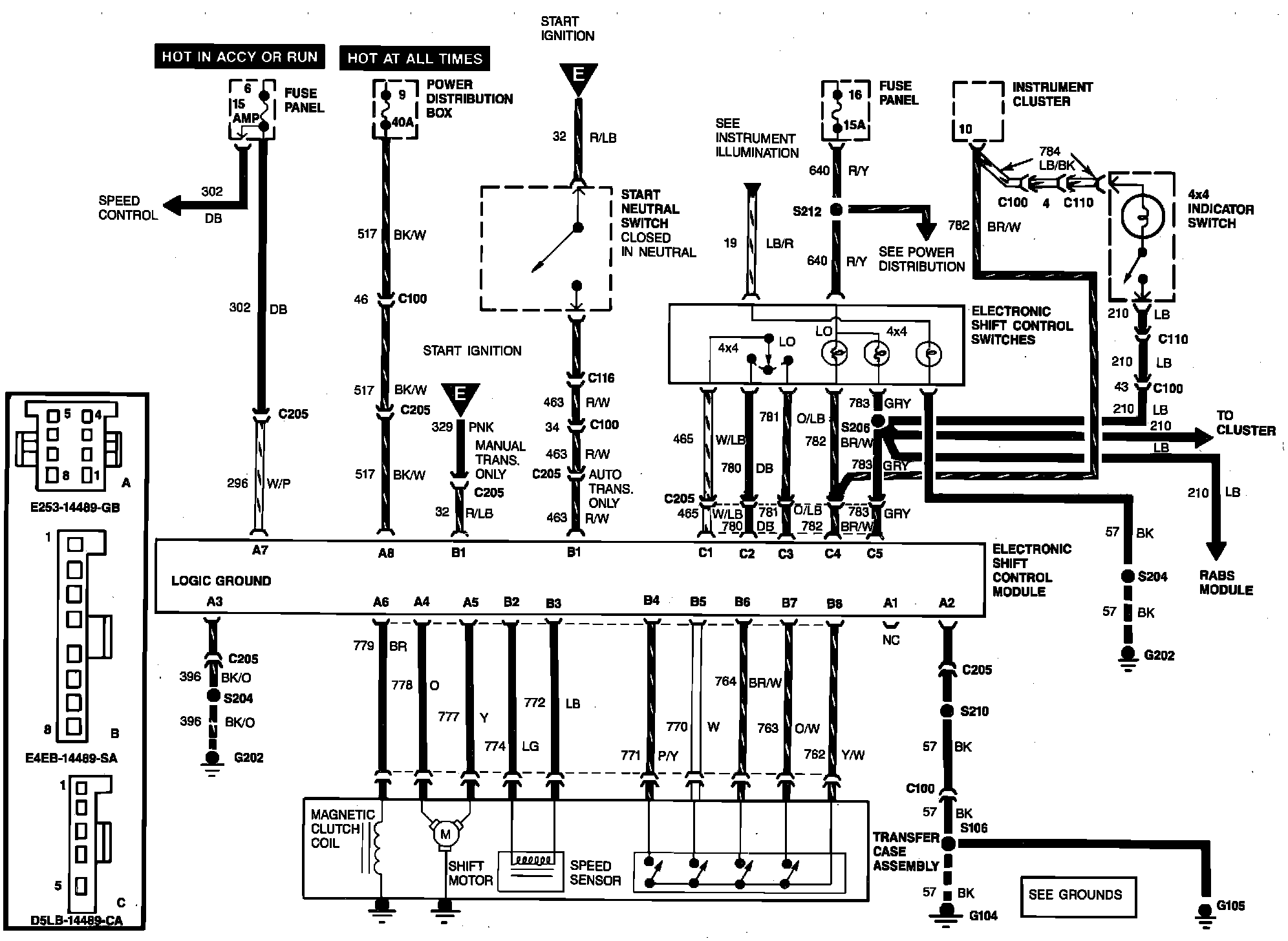

Electronic Shift Control:
