M/T Assembly Procedure - Revision

9207ford04

Article No.
91-25B-30

12/20/91


^ SHOP MANUAL - 1988 - PAGE 16-18-19 - MITSUBISHI FIVE-SPEED MANUAL TRANSMISSION ASSEMBLY PROCEDURE REVISED

^ SHOP MANUAL - 1989 - PAGE 07-03B-19 - MITSUBISHI FIVE-SPEED MANUAL TRANSMISSION ASSEMBLY PROCEDURE REVISED

^ SHOP MANUAL - 1990-PAGES 07-03B-21 AND 22 - MITSUBISHI FIVE-SPEED MANUAL TRANSMISSION ASSEMBLY PROCEDURE REVISED

^ SHOP MANUAL - 1991-PAGE 07-03B-19 - MITSUBISHI FIVE-SPEED MANUAL TRANSMISSION ASSEMBLY PROCEDURE REVISED


LIGHT TRUCK: 1988-90 BRONCO II
1988-91 RANGER


ISSUE: The Mitsubishi Five-Speed Manual Transmission Assembly Procedure requires a change in step sequence to permit movement of the mainshaft to assemble the countershaft. The following Shop Manuals are affected on the pages indicated:





^ 1988 Ranger/Bronco II, Page 16-18-19

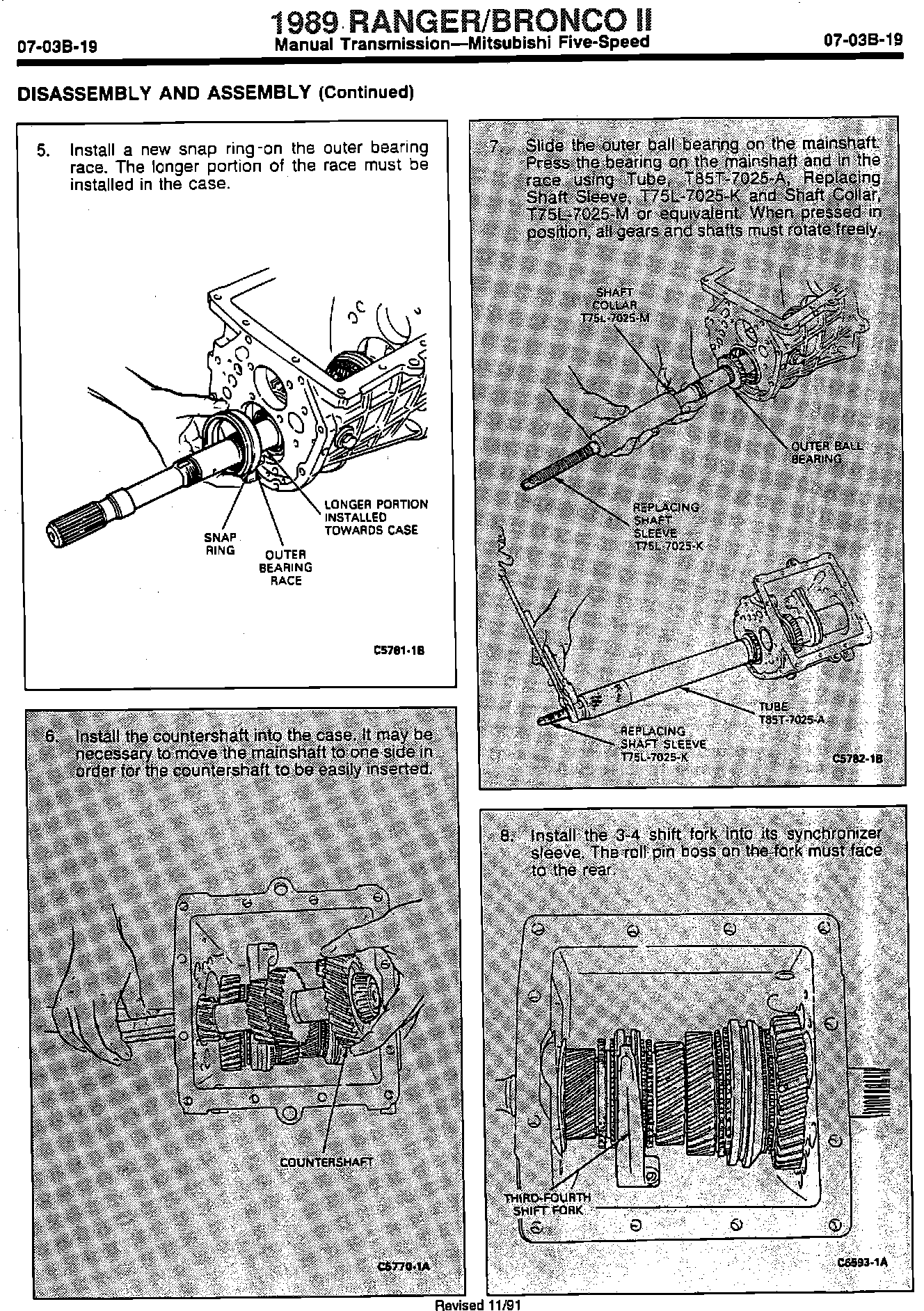

^ 1989 Compact Truck, Volume 1 of 2, Page 07-03B-19

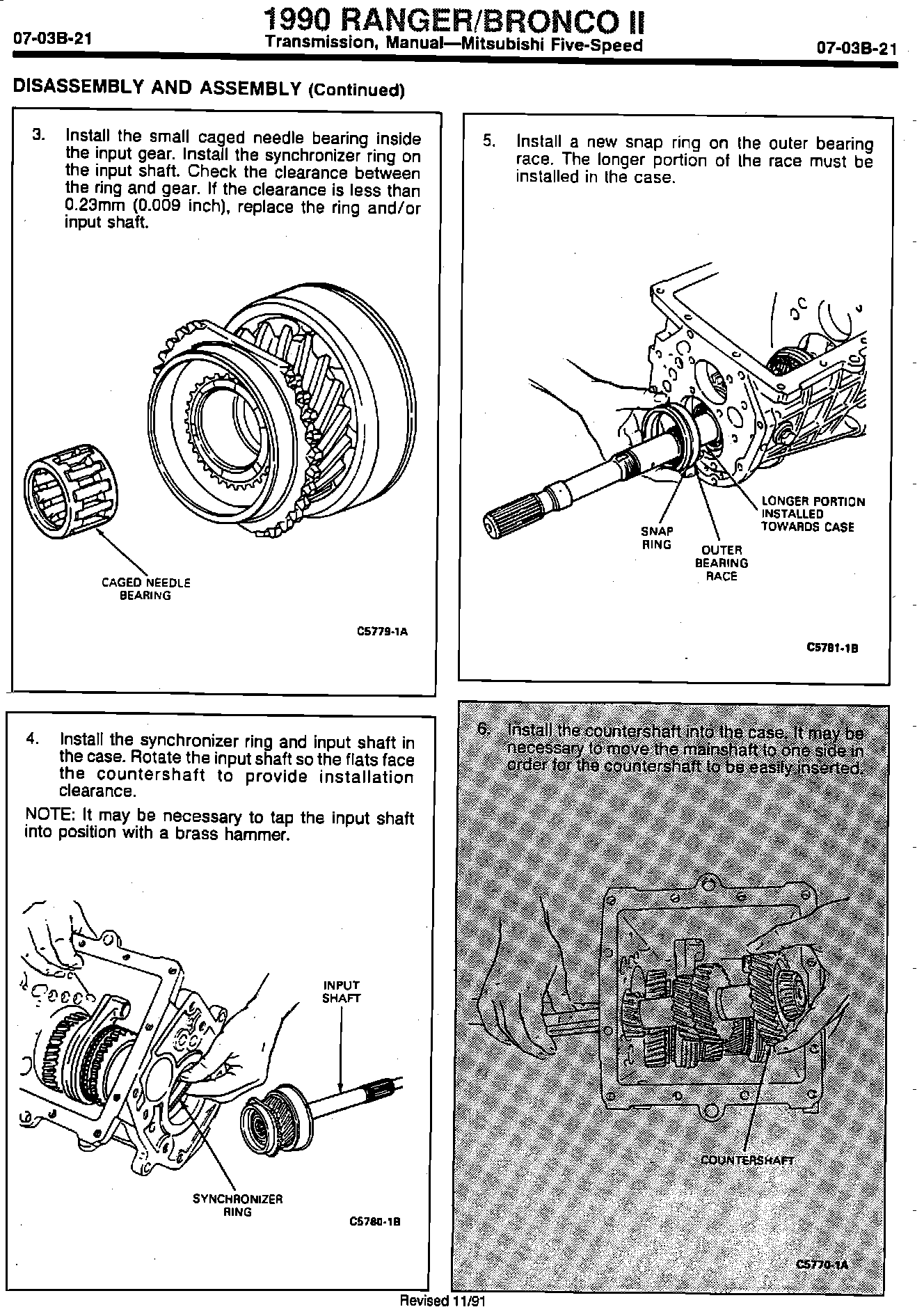

^ 1990 Aerostar/Ranger/Bronco II, Pages 07-03B-21 and 22

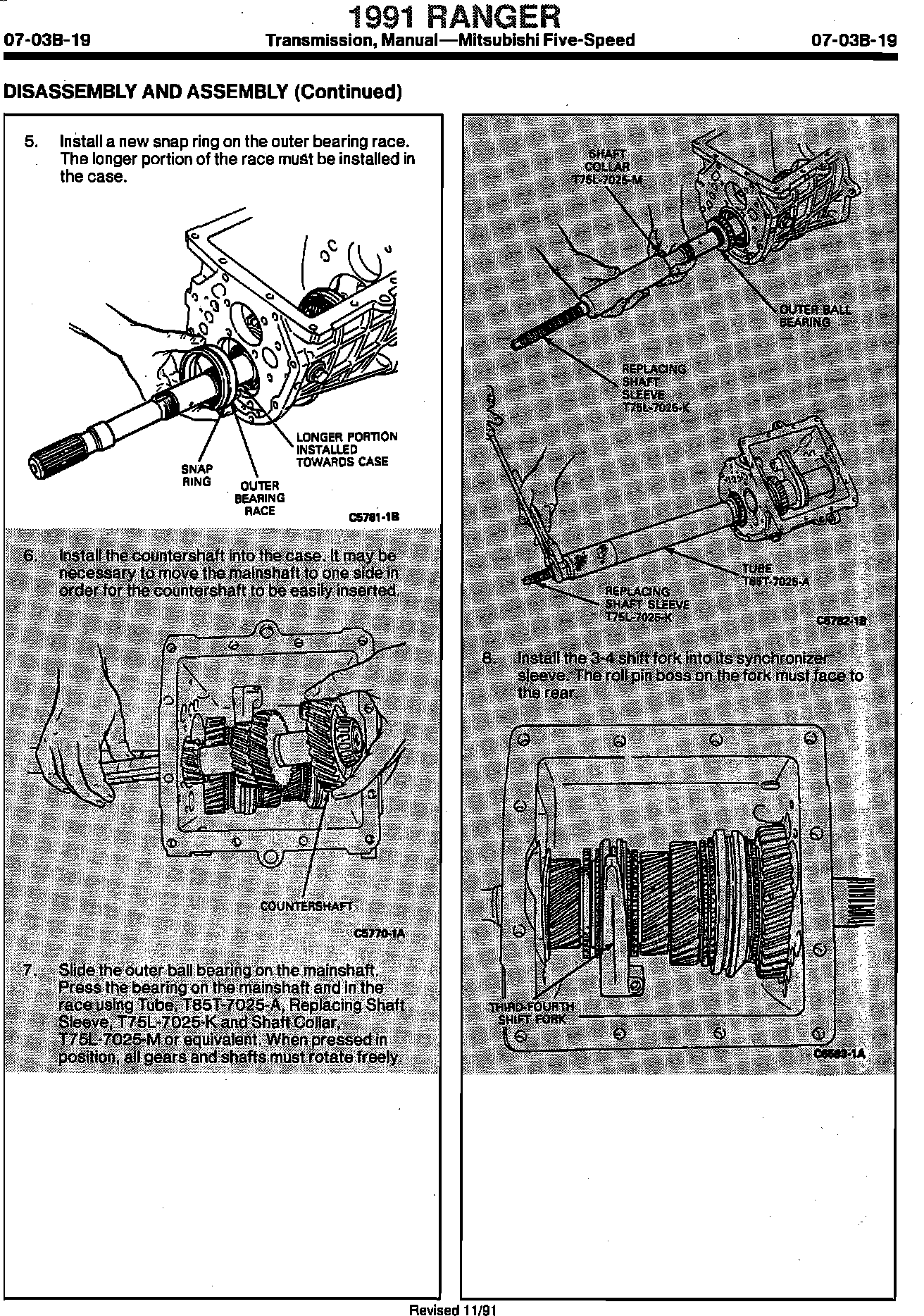

^ 1991 Aerostar/Explorer/Ranger, Page 07-03B-19


ACTION: Refer to the pages for the revised procedure.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 590000
