Specifications
>>
Mechanical Specifications
>>
Engine
>>
Cylinder Block Assembly
>>
System Specifications
>>

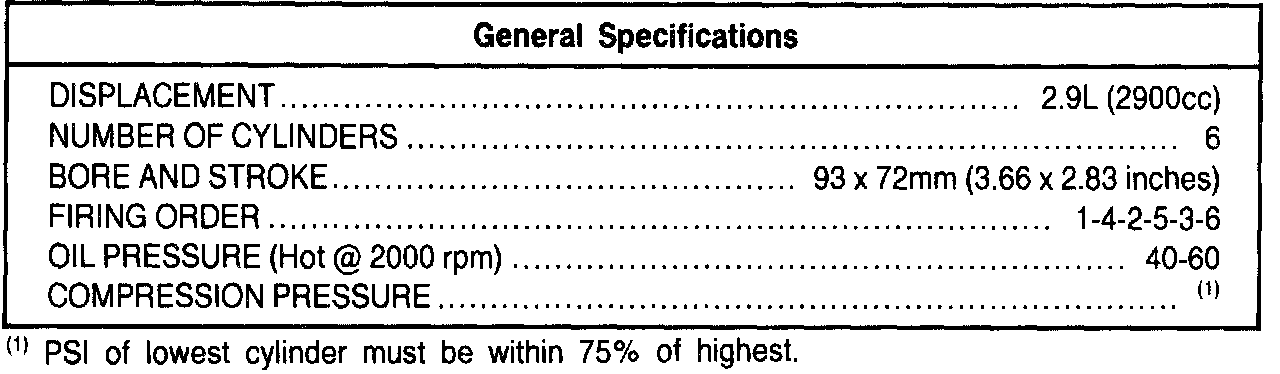

General Engine Specifications
General Engine Specifications

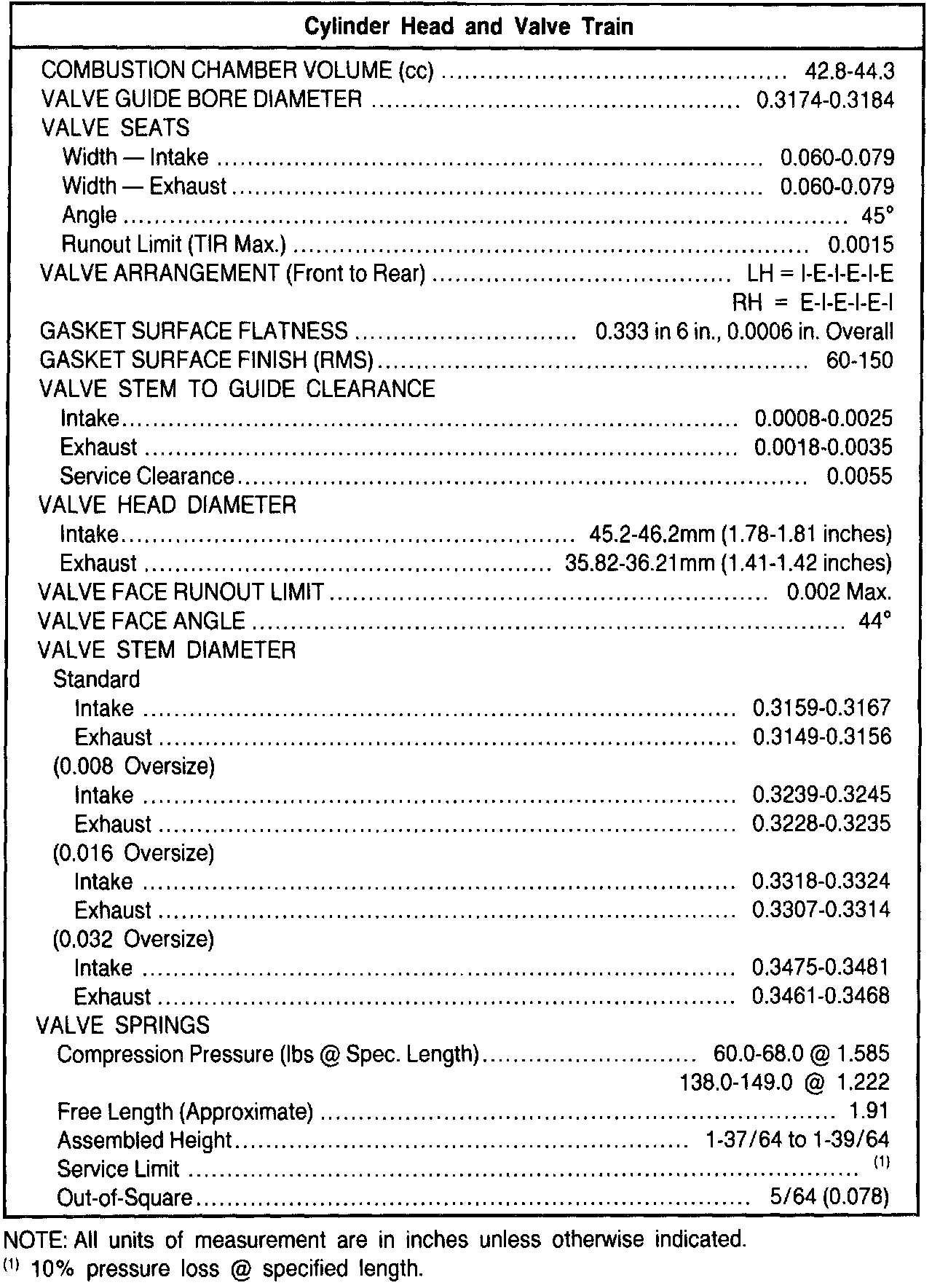

Service Specifications:

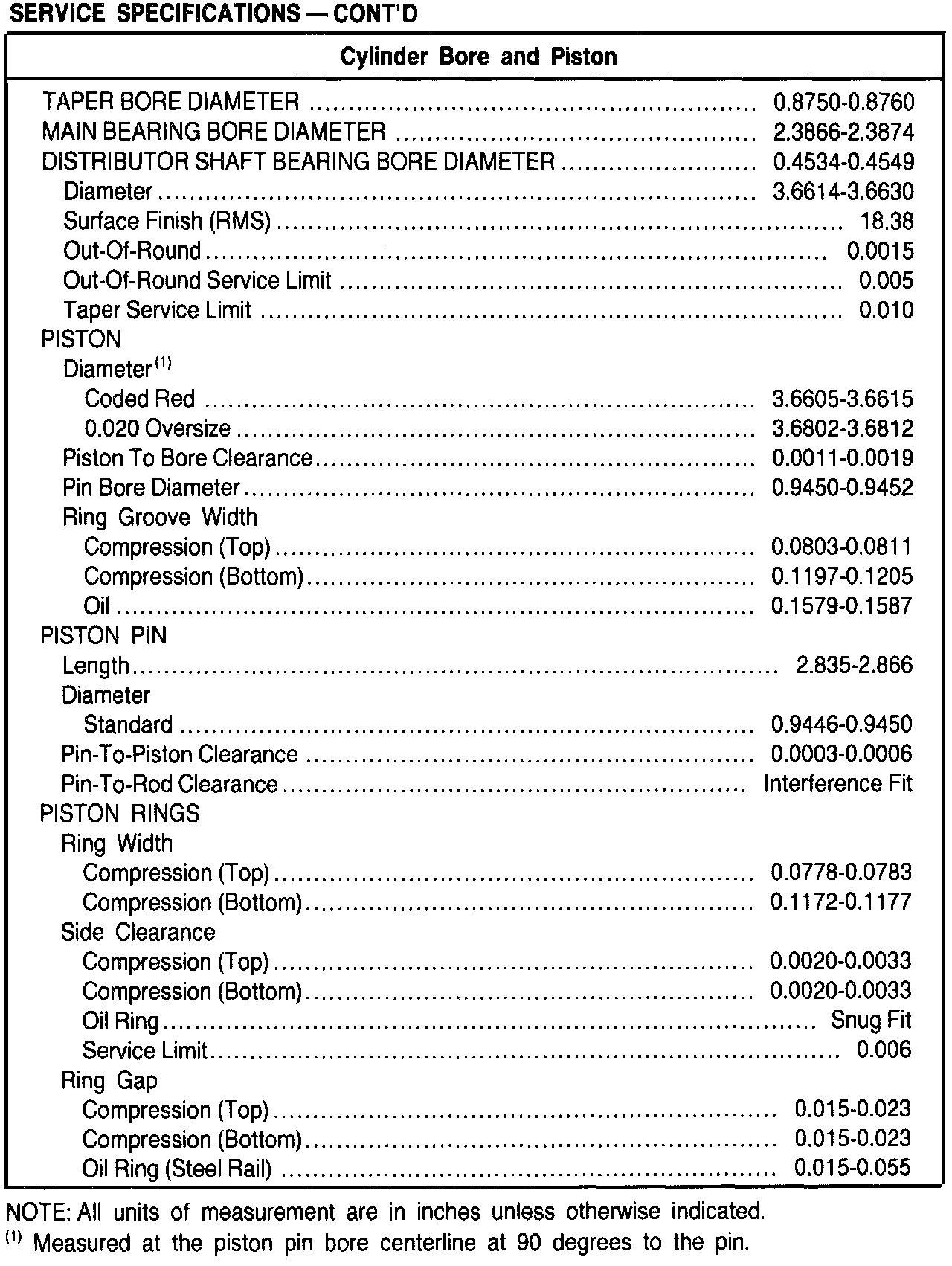

Service Specifications:

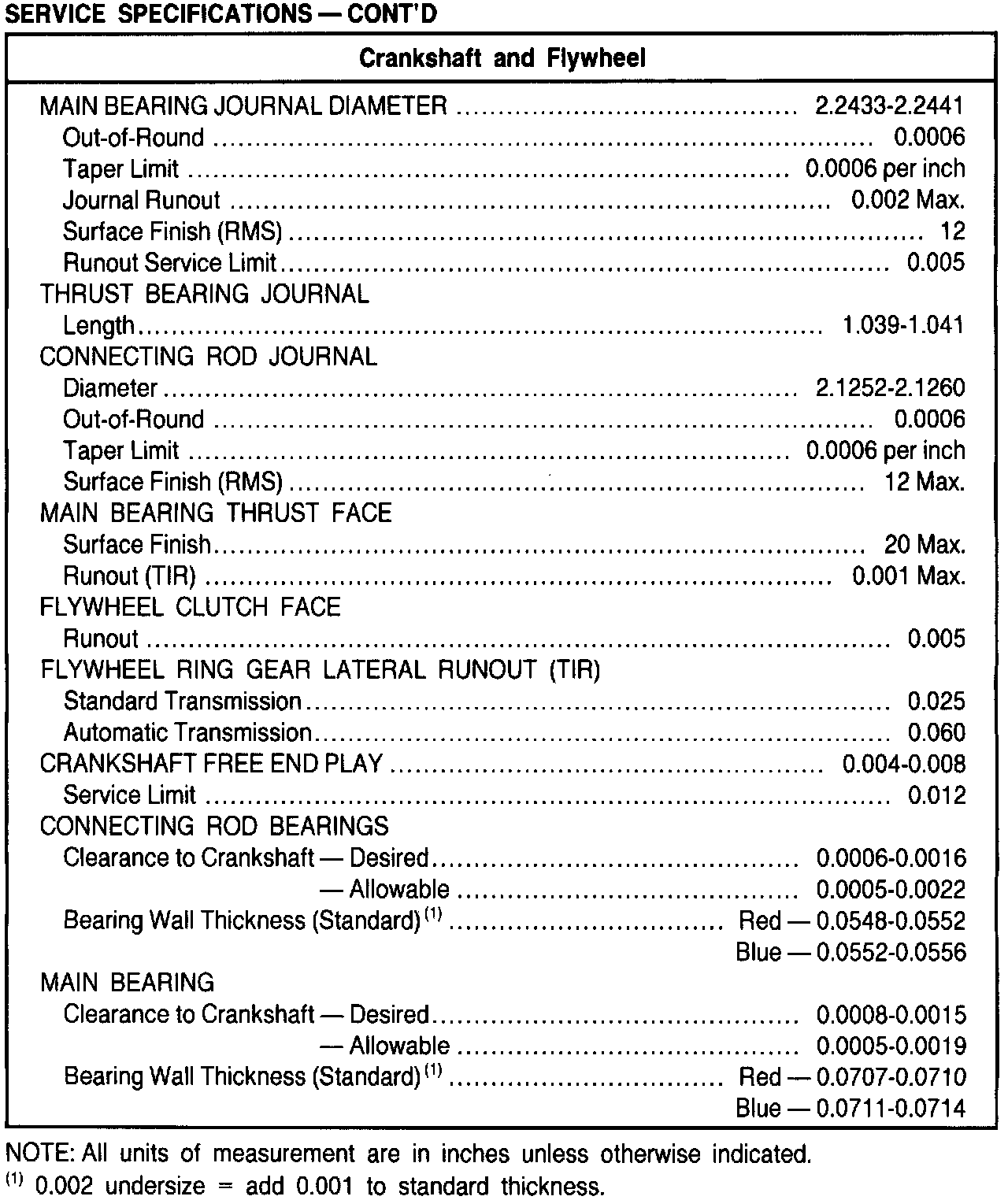

Service Specifications:

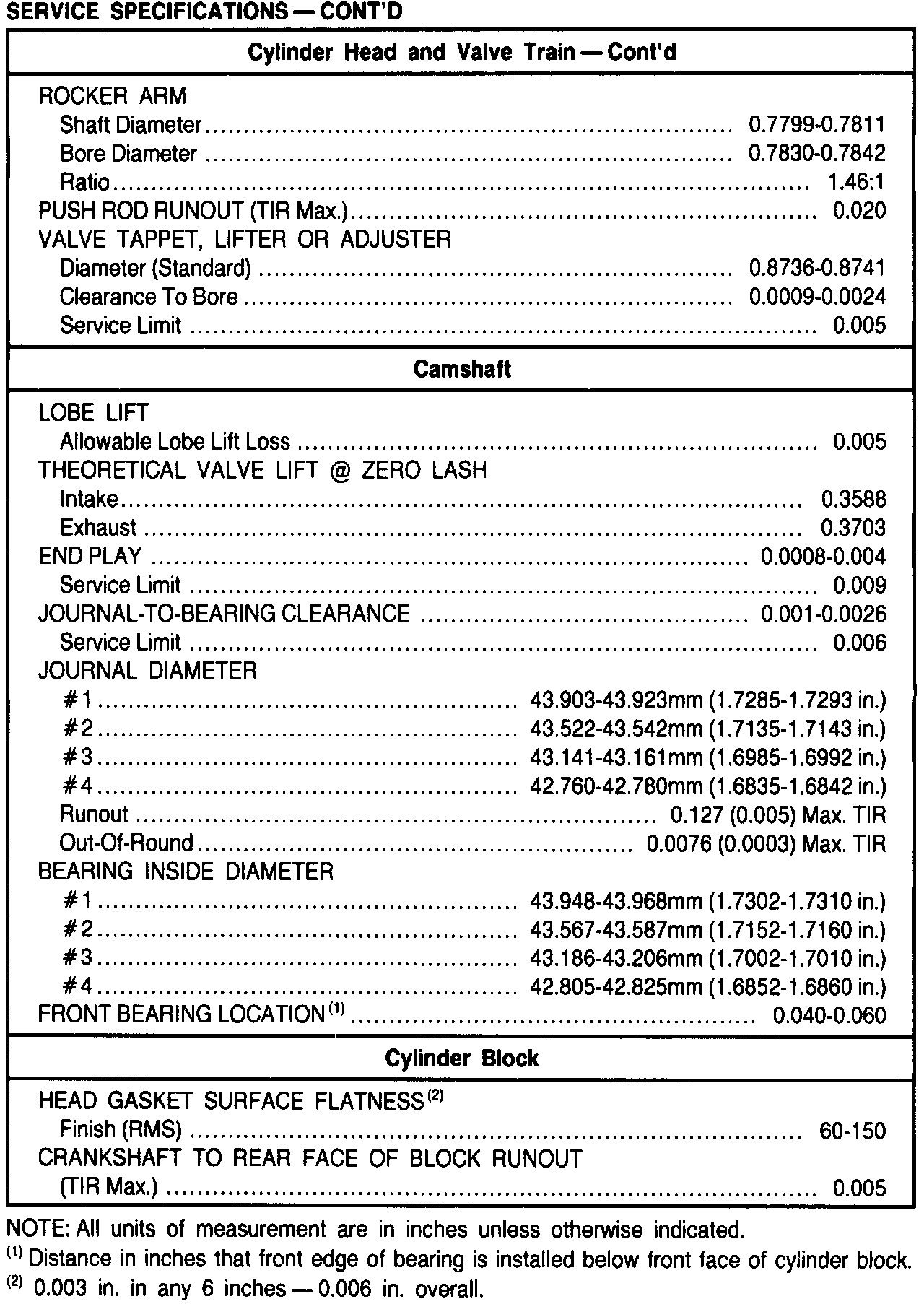

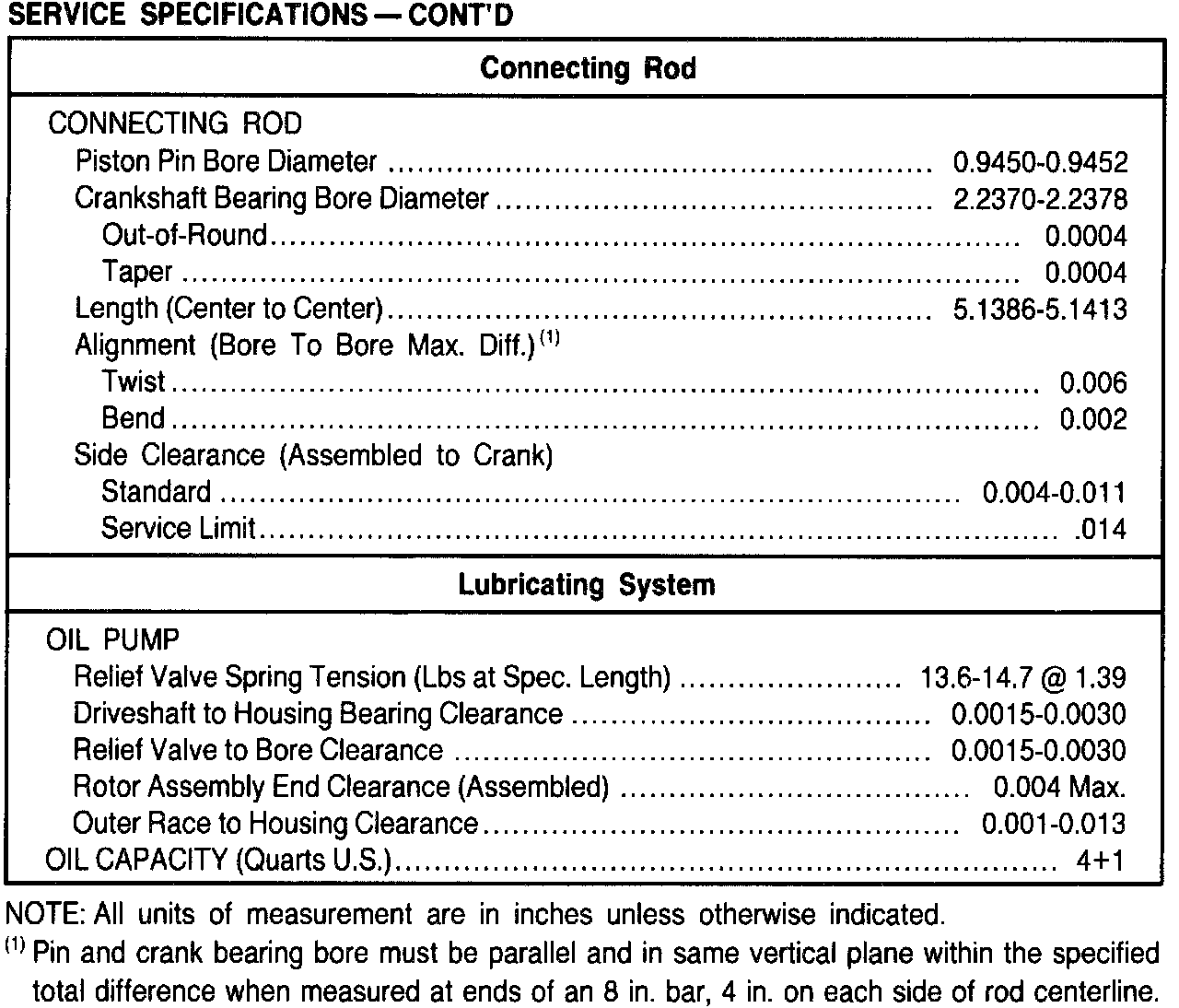

Service Specifications:
Compression Test Percentages - All Engines:
Belt Tension Allowable Limits:
