Bronco II 2WD V6-177 2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Block Diagrams
Block Diagrams

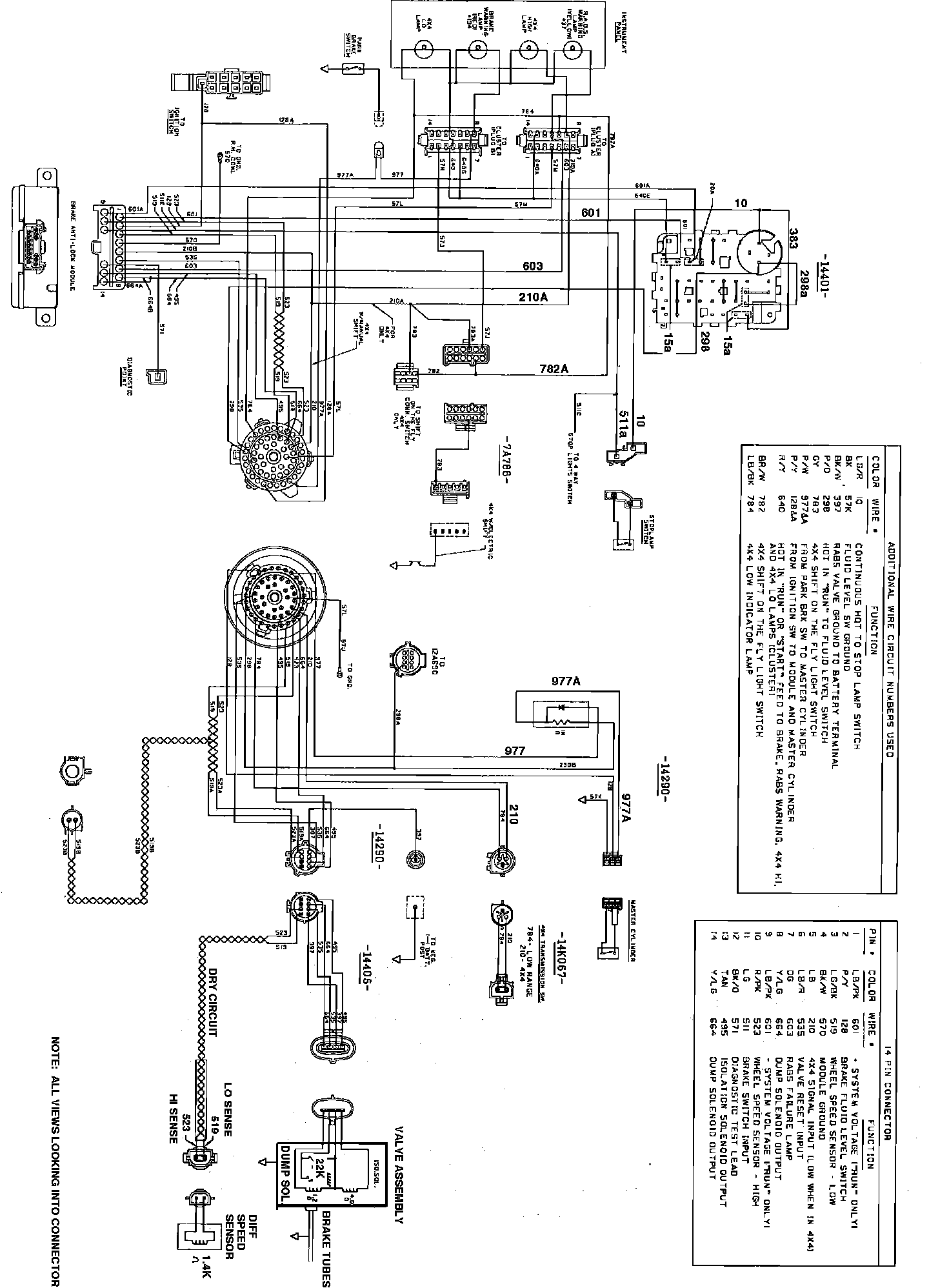

WIRING DIAGRAM:
