Diagnostic Connector - ABS: Locations

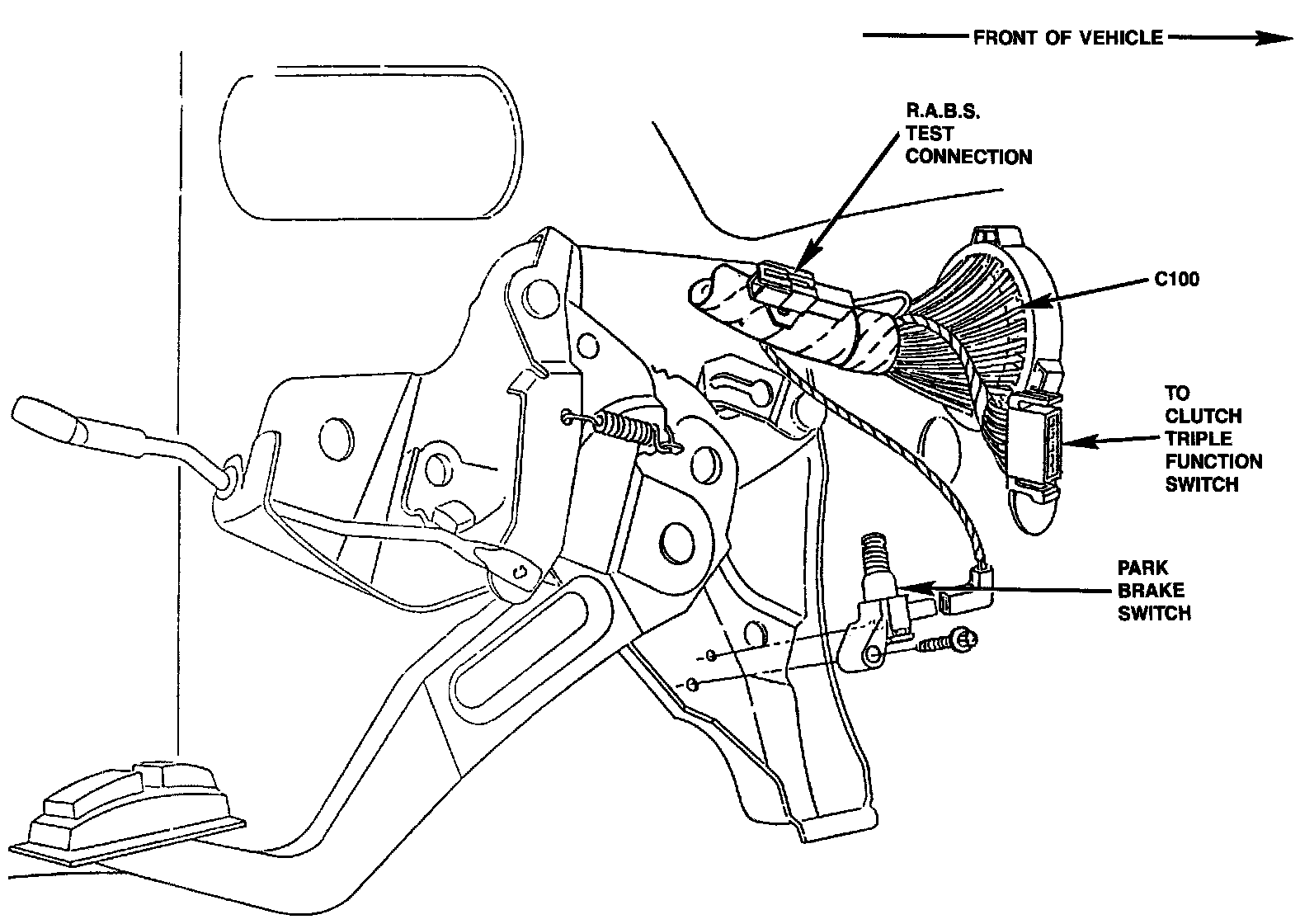

Location View - RABS Test Connector Location:

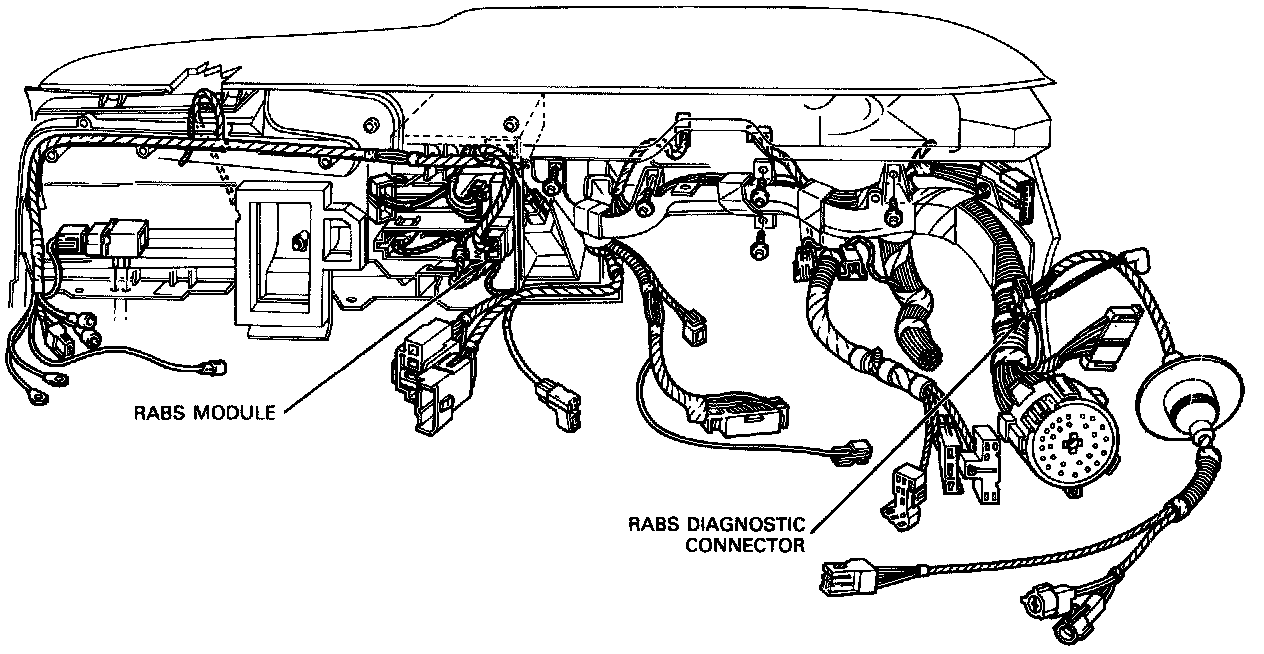

Location View - RABS Module And Diagnostic Connector:

The Rear Antilock Brake System (RABS) Diagnostic Connector is located on the main wire bundle inside of the cab, under the dash on the driver's side, slightly rearward of pin #53 on Connector C100.

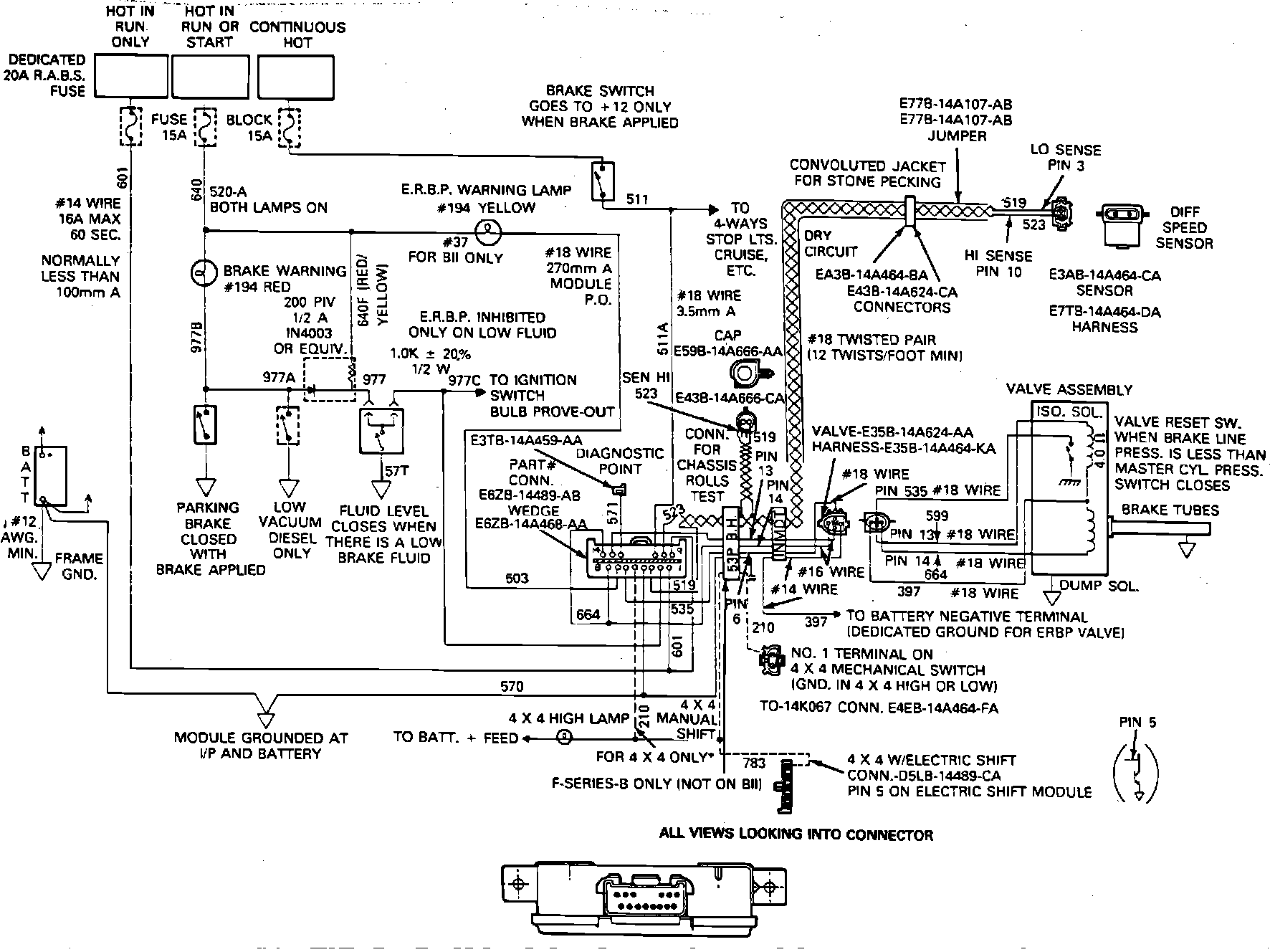

Anti-lock Brake System Wiring Schematic:

Refer to system wiring diagrams and diagnostic connector locations whenever diagnosis is required. Always disconnect the battery ground cable whenever checking resistance values within the system.
