Shift Linkage: Adjustments

ADJUST

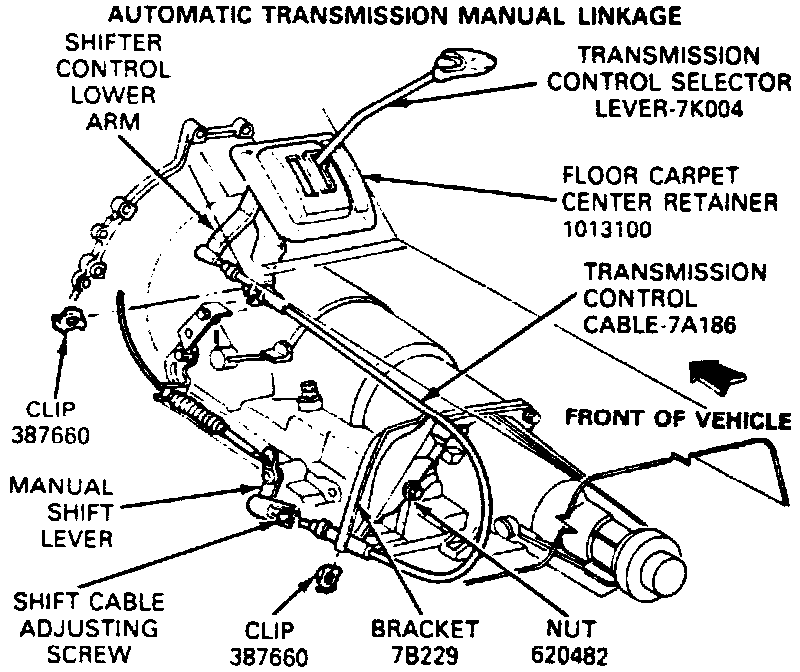

Adjusting Manual Linkage:

1. From inside vehicle, place shift lever in Overdrive position.
2. From below the vehicle, loosen adjustment screw on the shift cable and remove end fitting from the manual lever ball stud.
3. Position transmission manual lever in Overdrive position by moving lever all the way rearward, then moving it three detents forward. Then hold shift lever against Overdrive rear stop.
4. Connect cable end fitting to manual lever. Torque the adjusting screw to 45-60 in lbs.
5. Check for engagement in P. Control lever must move to right when engaged in P detent. Check transmission control lever in all detent positions with engine running to ensure correct detent/transmission action, readjusting as necessary.
