Antilock Control Test Step 4B - Manual Revision

90ford45
^ SHOP MANUAL- 1989-PAGE 06-09-26-DIAGNOSIS AND TESTING ANTI-LOCK CONTROL TEST STEP 4B REVISED

^ SHOP MANUAL-1990-PAGE 06-09-32-DIAGNOSIS AND TESTING ANTI-LOCK CONTROL TEST STEP 4B REVISED
Article No. 90-25B-31
LIGHT TRUCK: 1989-90 AEROSTAR, BRONCO II, RANGER






ISSUE: Test Step 4b on Page 06-09-26 of the 1989 Aerostar/Ranger/Bronco II Truck Shop Manual and on Page 06-09-32 of the 1990 Aerostar/Ranger/Bronco II Truck Shop Manual shows an incorrect scale setting of 20K ohm. The correct scale setting is 200K ohm.

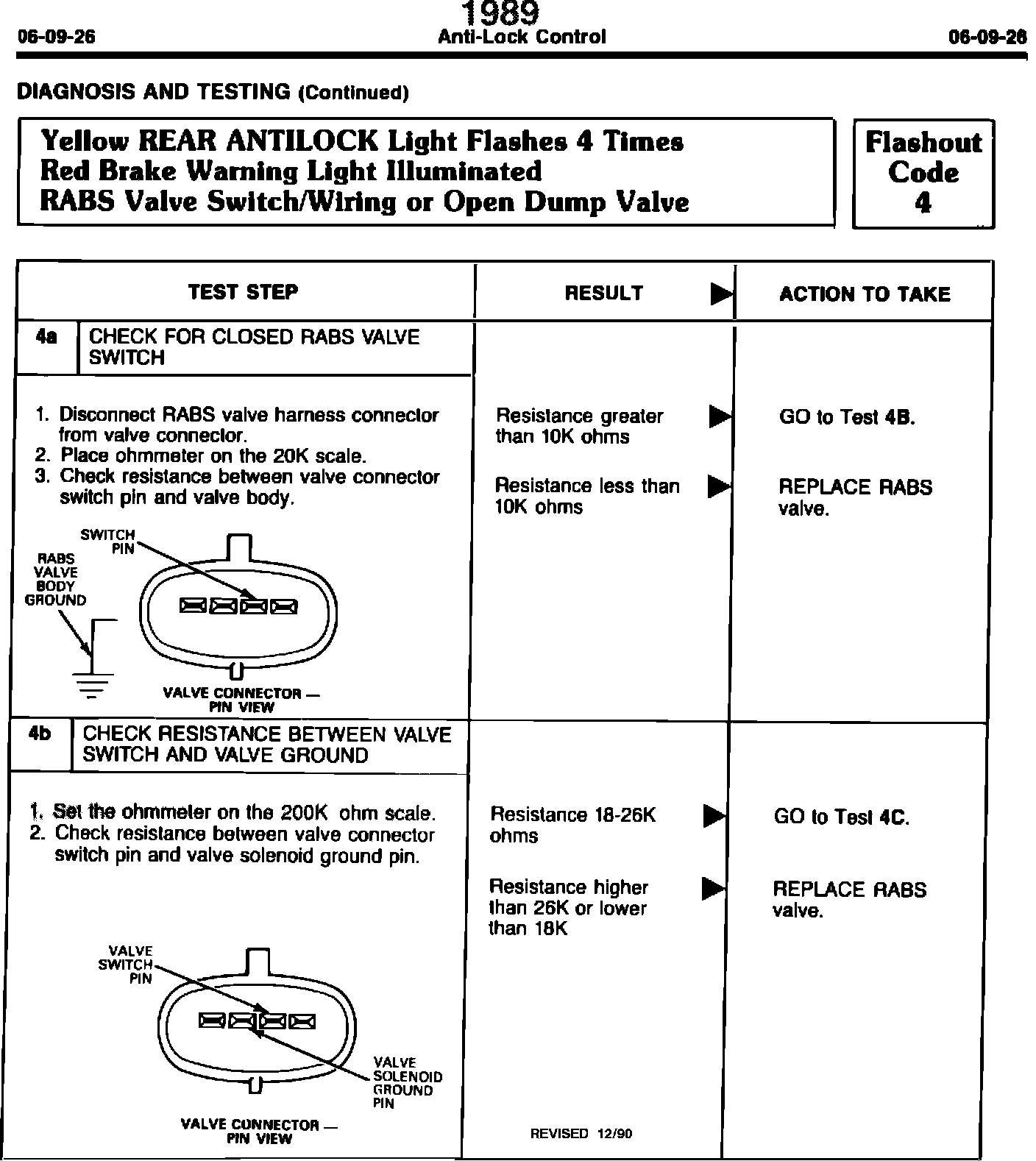

ACTION: Refer to the pages following this TSB article for the revised Test Step setting.


OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
