Dana 30

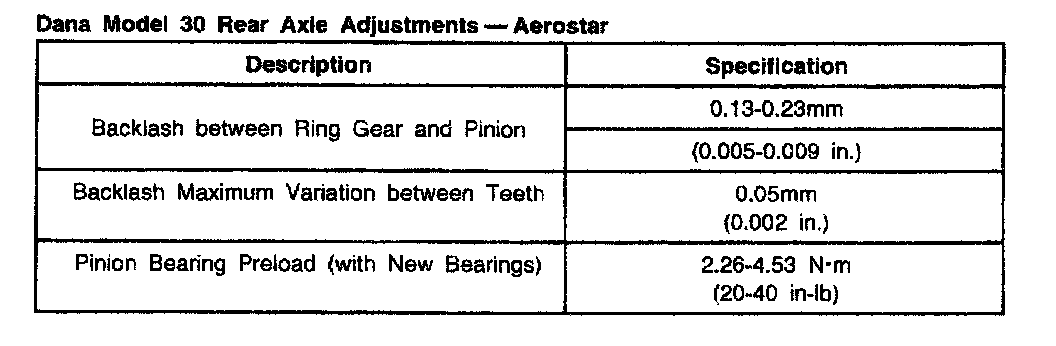

Dana 30 Rear Axle, Ring Gear/Pinion Backlash:

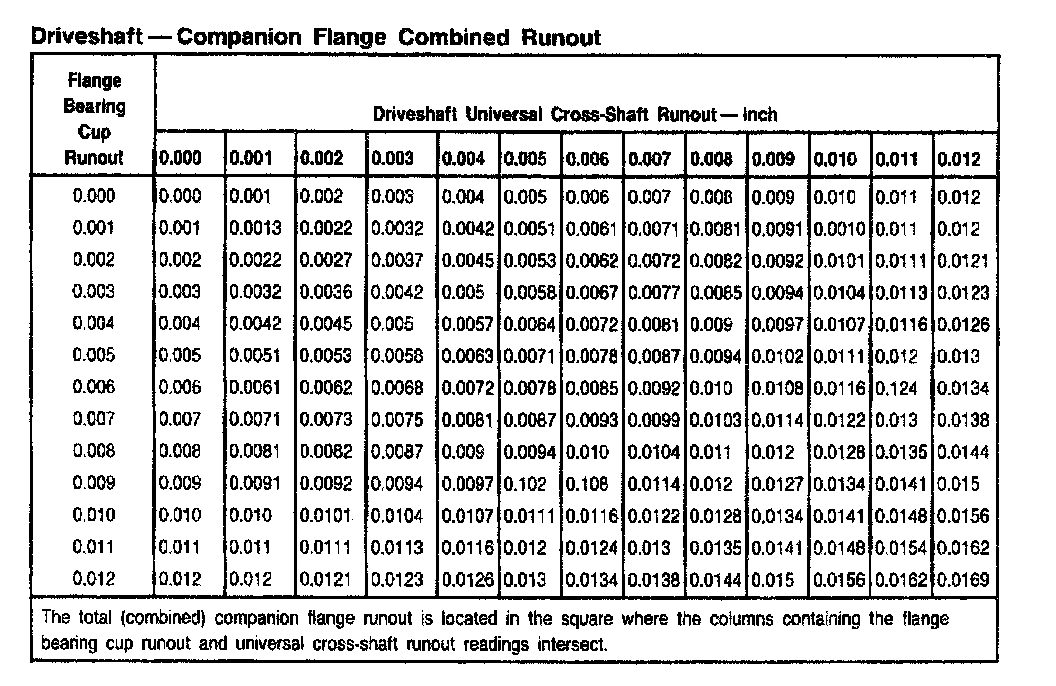

Dana 30 Rear Axle, Companion Flange Runout:





Dana 30 Rear Axle, Differential Rating:
