Home >> Ford Truck >> 1989 >> Aerostar V6-183 3.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Starting and Charging >> Starter Relay >> Locations

Starter Relay: Locations

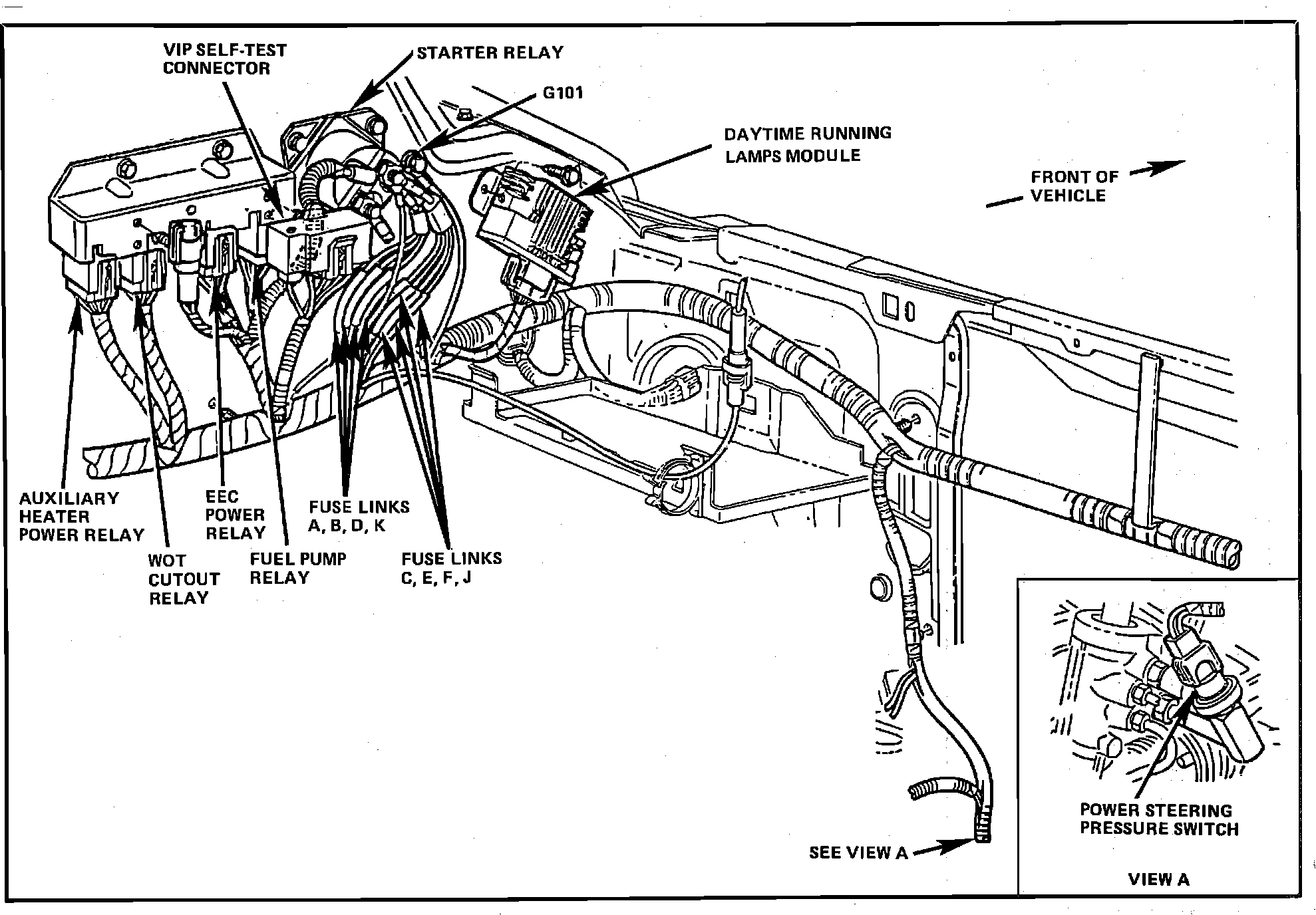

Component Locations - LH Side Of Engine Compartment:
