Attachment II - Labor and Parts Information

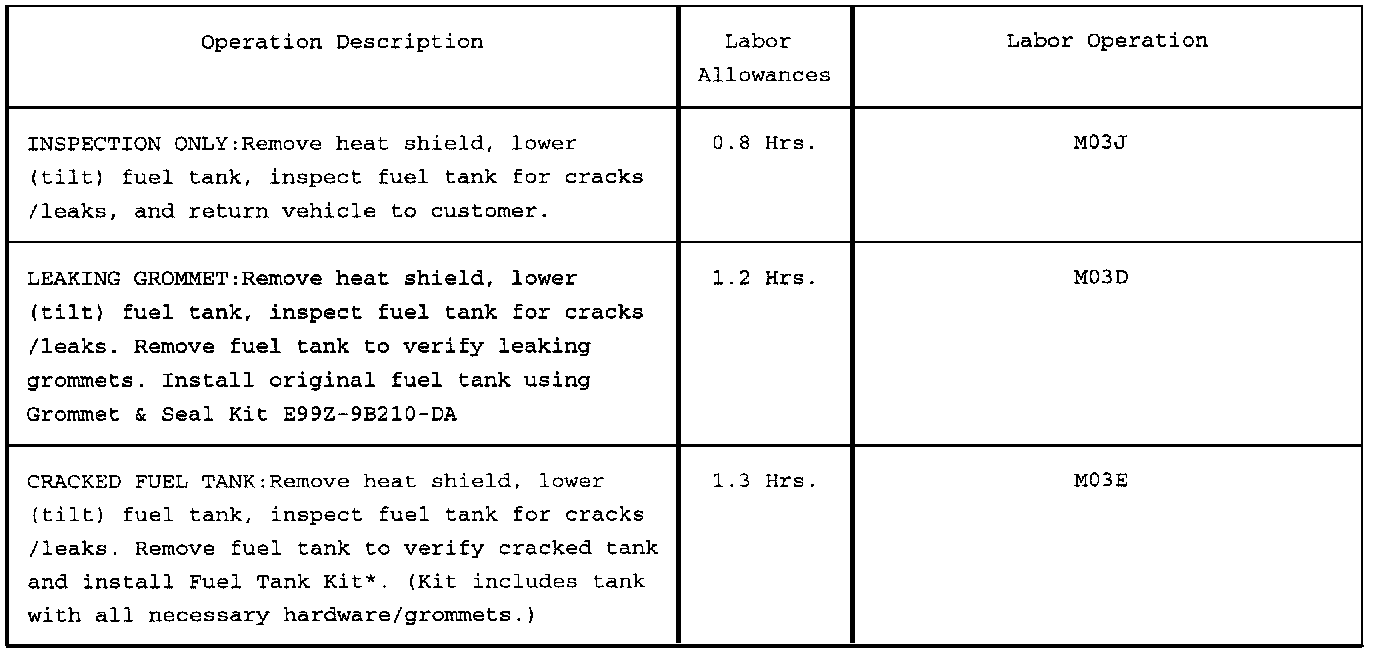

LABOR ALLOWANCES
Aerostar with 17 Gallon Fuel Tank





Aerostar with 21 Gallon Fuel Tank

* Fuel Tank Disposal: For labor associated with flushing and disposal of old fuel tank, see "EXTRAORDINARY EXPENSE ALLOWANCE" in Attachment I.

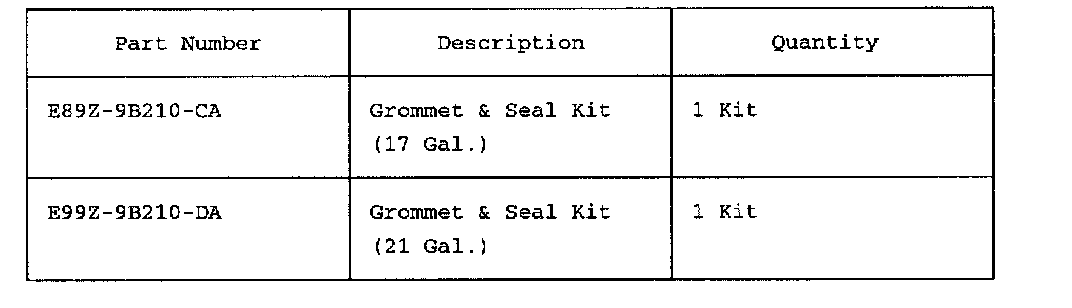

PARTS ORDERING INFORMATION





Parts Requirements
Parts will not be direct shipped for this recall. Order your parts requirements through normal order processing channels as noted below:

Stock Orders -- Effective Immediately -- Normal Order Process

Interim Orders -- Effective Immediately -- Normal Order Process

Emergency Orders -- 31 days after launch -- Normal Order Process

Emergency Orders -- First 30 days after launch -- Call 1-800-325-5621

Replacement Fuel Tank (see note below)
To order a replacement fuel tank, call the Recall Hotline at 1-800-325-5621 and ask for a Fuel Tank kit for program 98M03. Be prepared to supply PA code, VIN and fuel tank size. All 1988 and some early 1989 Aerostars have a 17 gal. fuel tank. Most 1989 and all 1990 have a 21 gal. tank. IDENTIFICATION: 17 gallon tanks use straps that insert into the BOTTOM of the "frame" rail. The 21 gallon tanks use straps that insert into the SIDE of the frame rail.

Both Fuel Tank kits (17 and 21 gallon) contain a new fuel tank with installed grommets. Each kit also includes new fuel tank straps and attaching hardware.

NOTE:
We anticipate that less than 1 out of every 1,000 vehicles will require a new fuel tank.

Parts Retention
Ford is continuing to investigate this condition and may come to your dealership to inspect remoed fuel tanks for structural cracks. Please retain cracked fuel tanks for a minimum of 60 days.

Dealer Price

^ Order Processing Center

^ DOES II

^ Updated Price Book

Excess Stock Return
Excess stock returned for credit must have been purchased from Ford Customer Service Division in accordance with Policy and Procedure Bulletin 4000.

LOANER CARS (For Fuel Tank Replacement Only)
For fuel tank replacement, Ford Motor Company will pay for a loaner or rental vehicle, except for fuel which will be at owner's expense. Enter the word "LOANER" plus the number of days the vehicle was used in the
Miscellaneous Expense area.
