Ford Truck
>>
1984
>>
Ranger 4WD V6-171 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Locations
>>
Carbureted Engines
Carbureted Engines

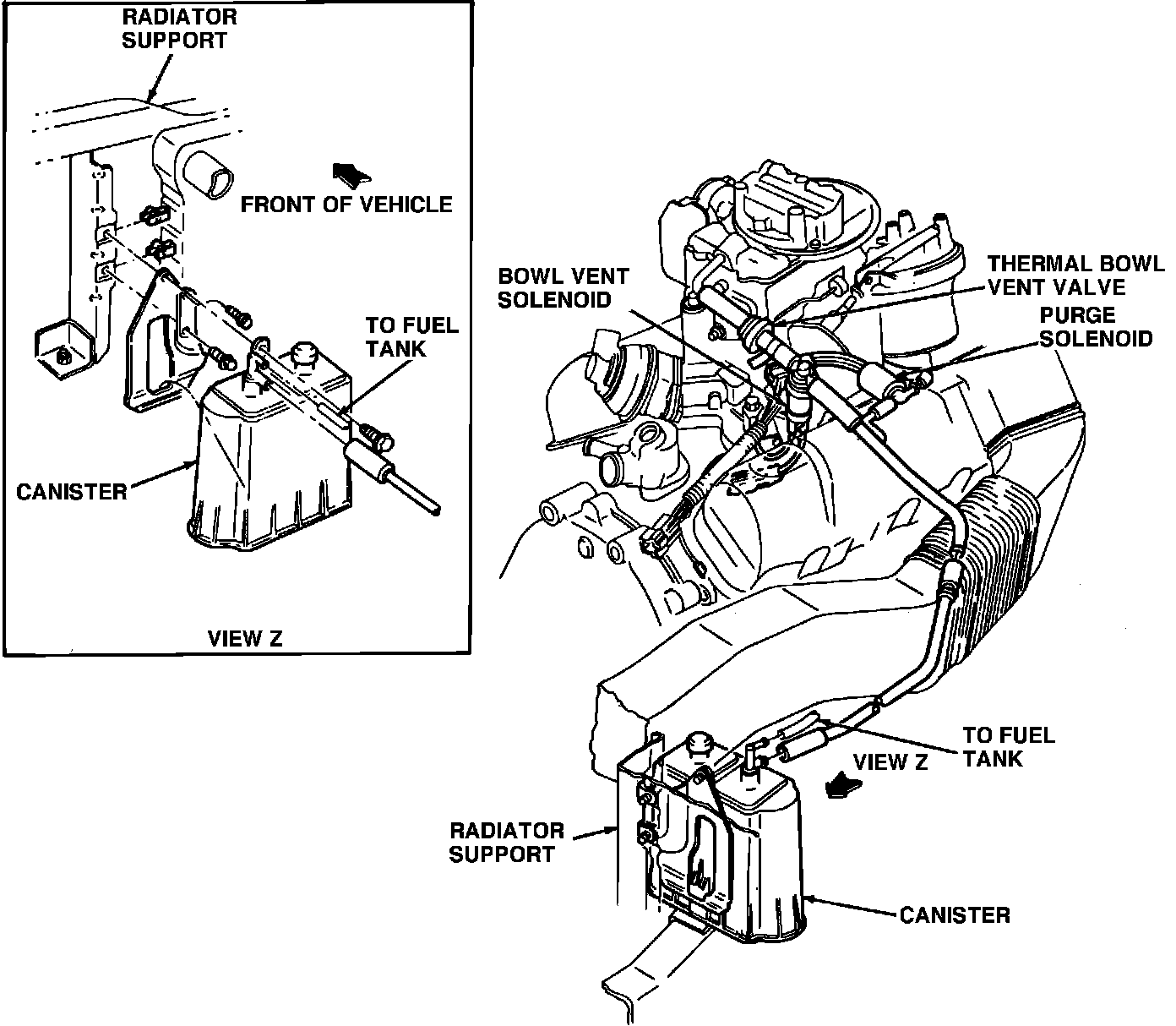

Fig. 14 Evaporative emission control system. V6-171:
