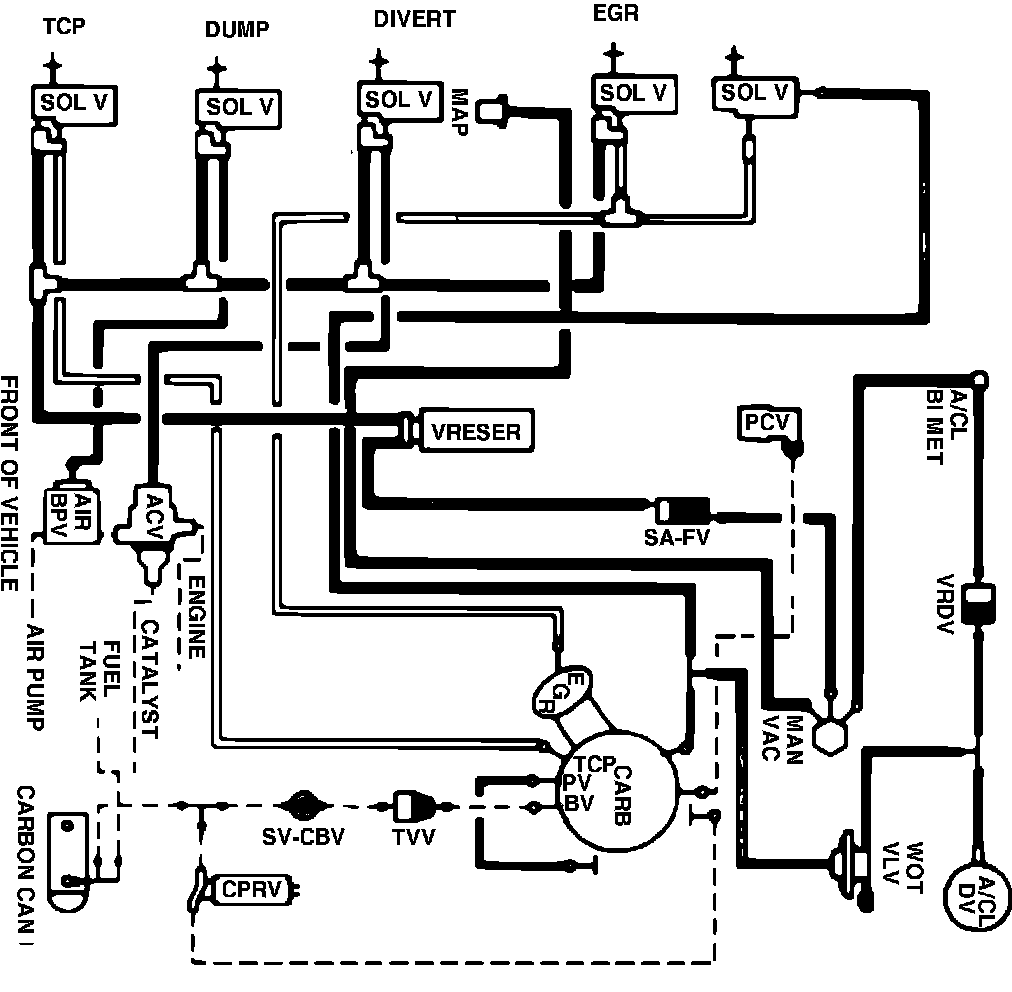

Fig. 60 Calib. Code 4-61F-R1
Fig. 60 Calib. Code 4-61F-R1
Fig. 60 Vacuum hose routing. 1984 V6-171 Calib. code 4-61F-R1:
