System Diagram

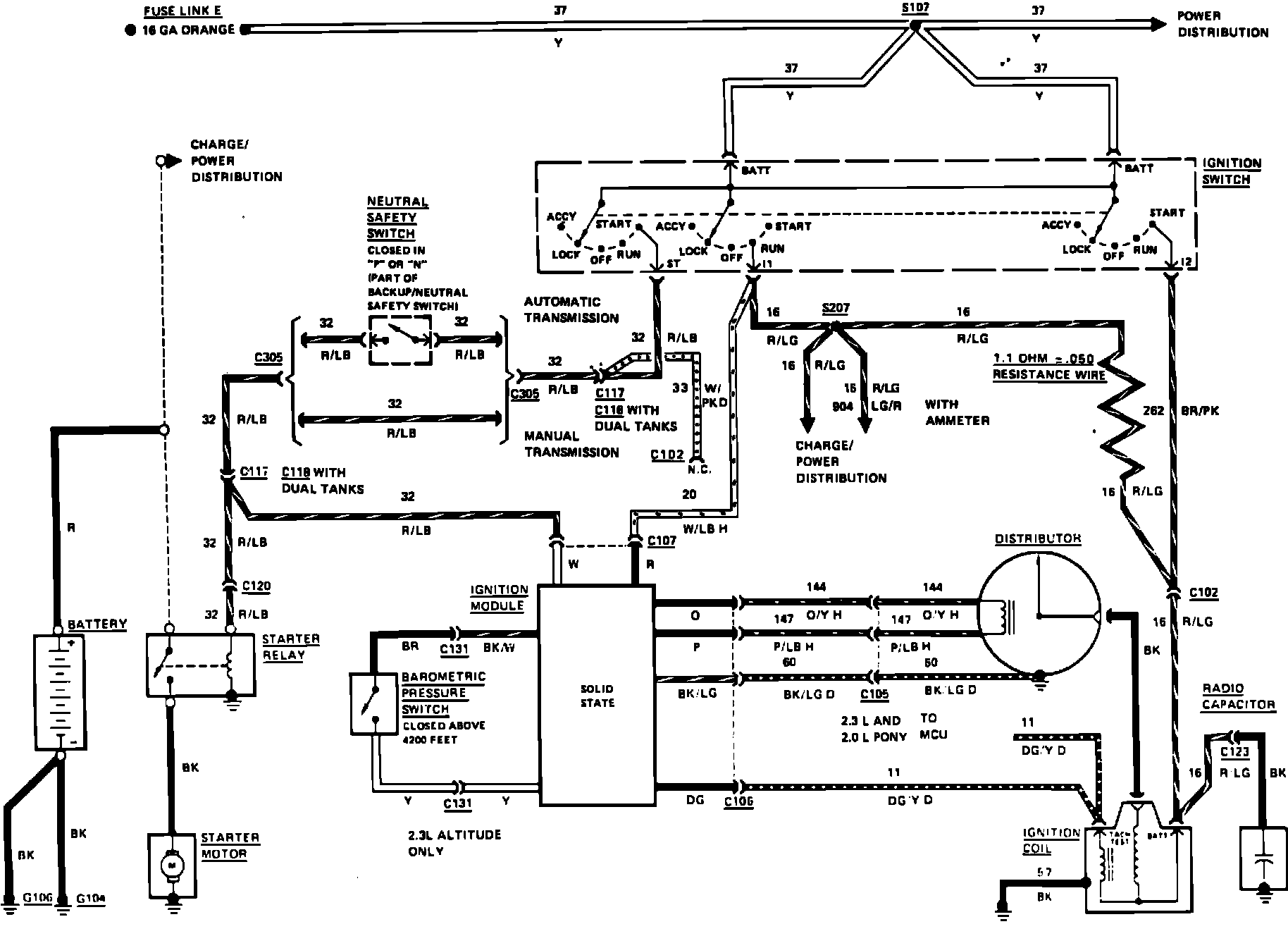

Fig.40 Ignition & Starting 1984 Bronco II & Ranger With EEC:



Fig. 41 Ignition & Starting W/O EEC:
