System Diagram

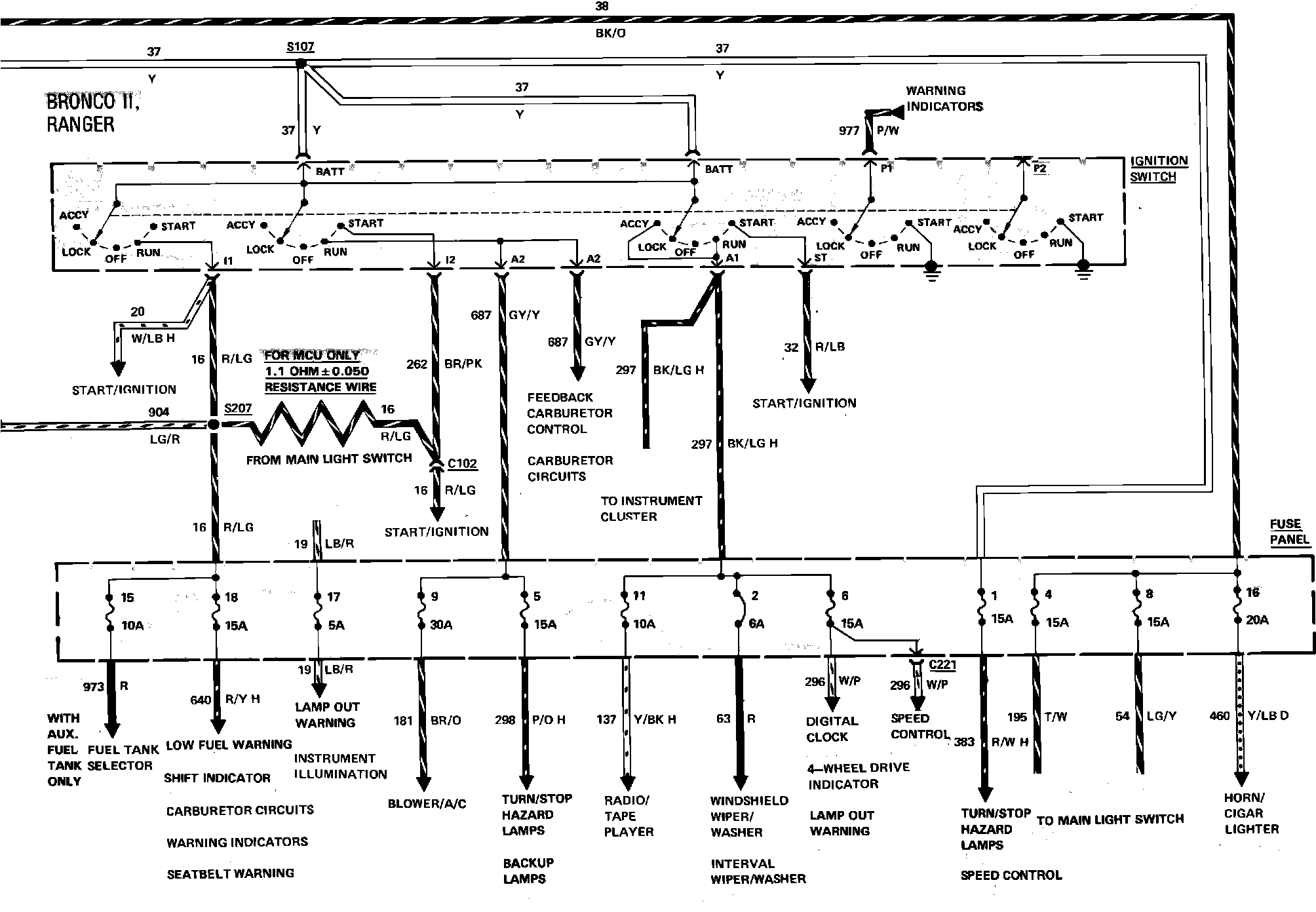

Fig. 15 Charging System & Power Distribution Wiring Circuit (Part 1 of 2). 1984 Bronco II & Ranger With Gas Engine & Ammeter:

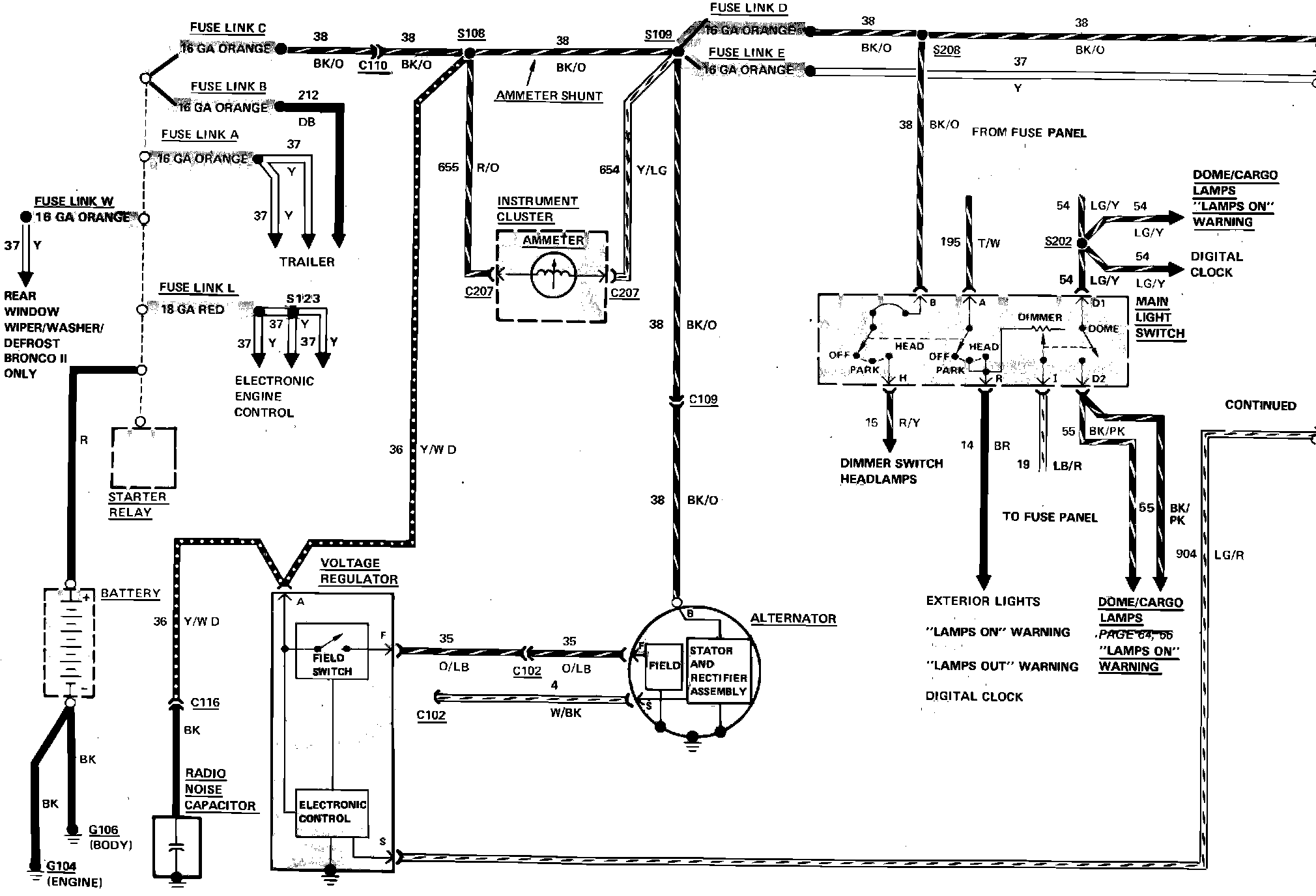

Fig. 15 Charging System & Power Distribution Wiring Circuit (Part 2 of 2). 1984 Bronco II & Ranger With Gas Engine & Ammeter:
