Home
>>
Ford Truck
>>
1984
>>
Ranger 4WD L4-134 2.2L DSL
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>

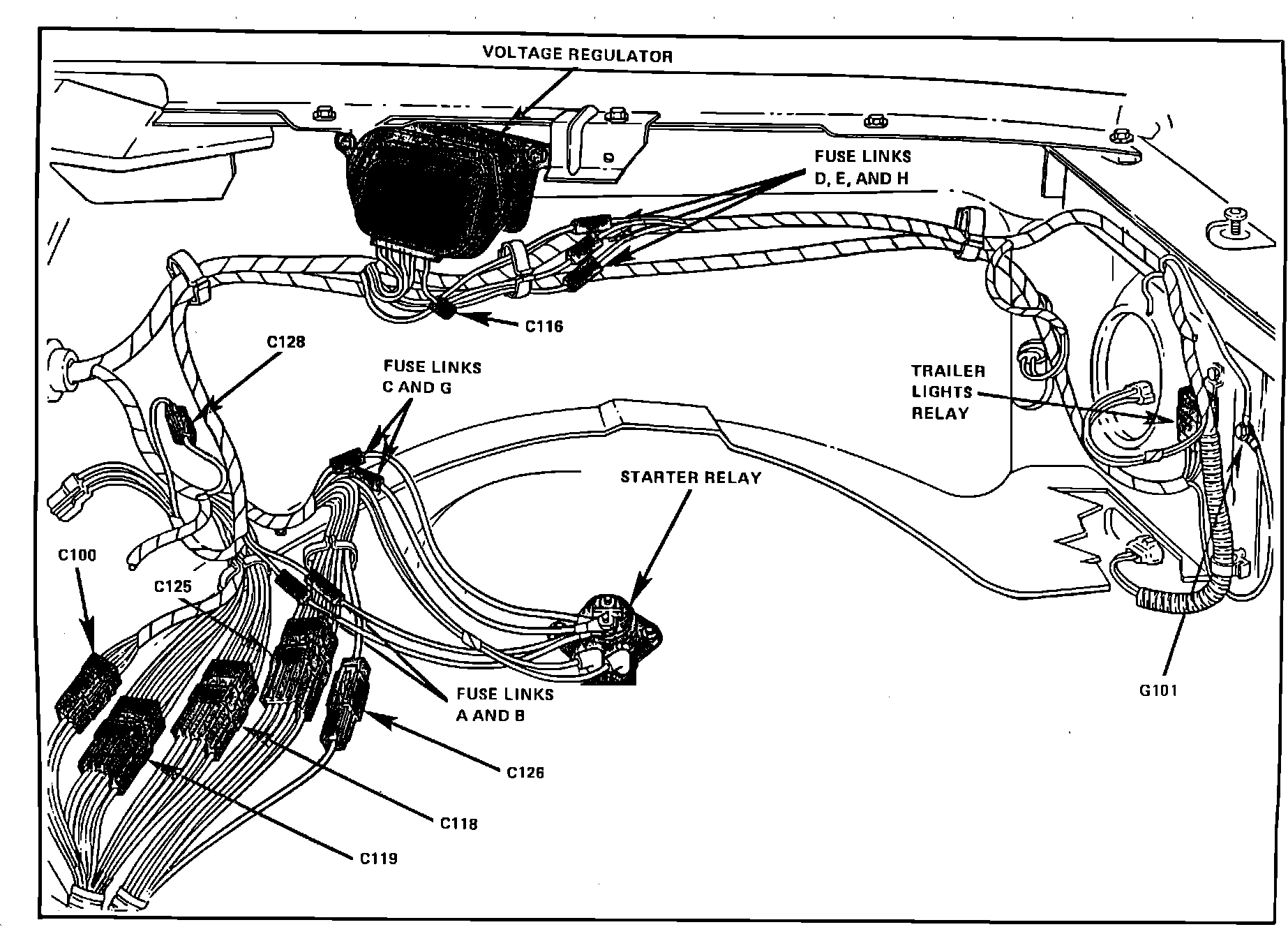

Fusible Link
>>
Locations
>>
Fuse Link A
Fuse Link A
LH Front Fender.:
LH Front Fender Apron
Applicable to: Models w/Trailer Tow & Gasoline Engine
