Auburn Traction LOK

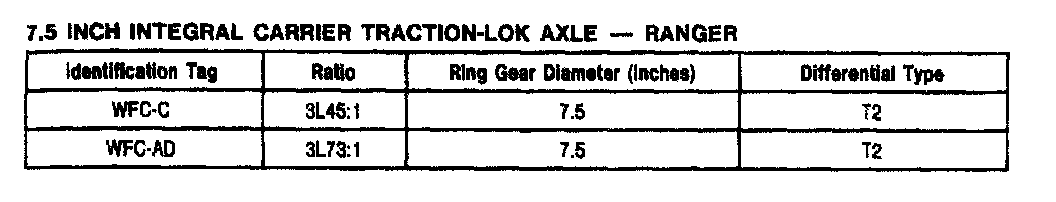

7.5 Inch Traction Lok, Gear Ratio:

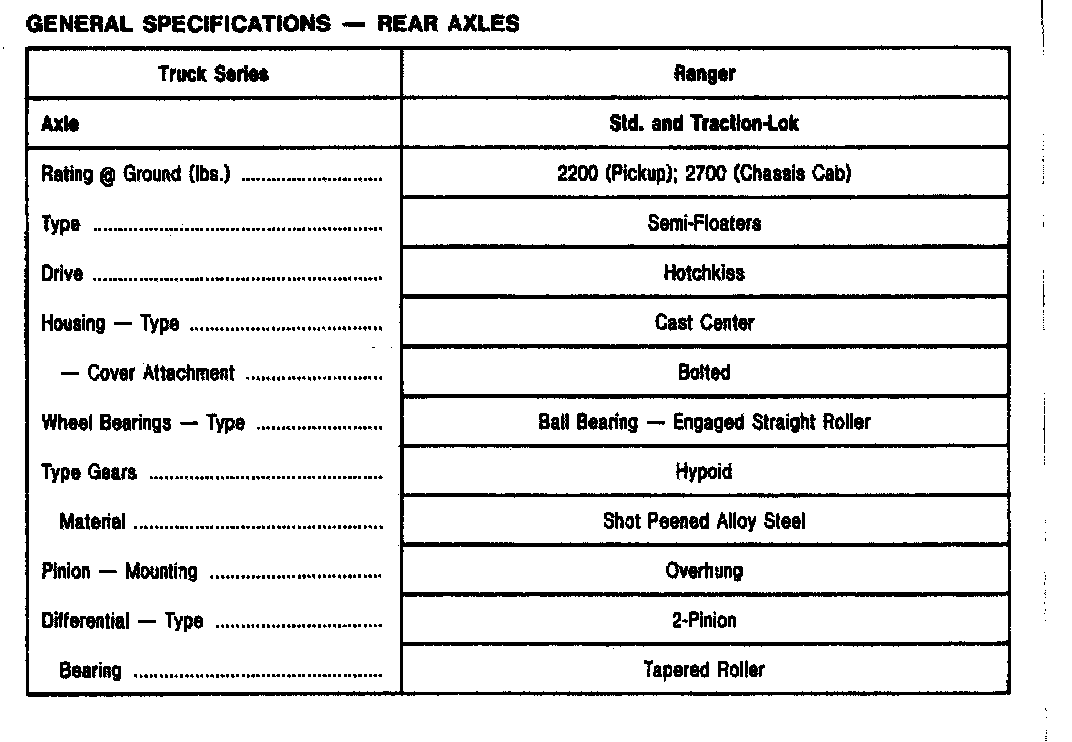

7.5 Inch Traction Lok, Axle Explanations:

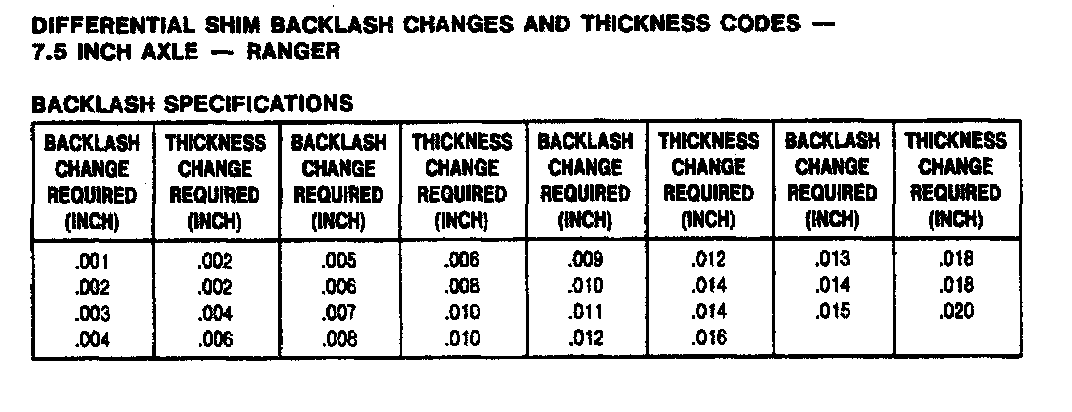

7.5 Inch Traction Lok, Differential Shim Backlash:




7.5 Inch Traction Lok, Backlash:
