Trailer Connector
Trailer Connector

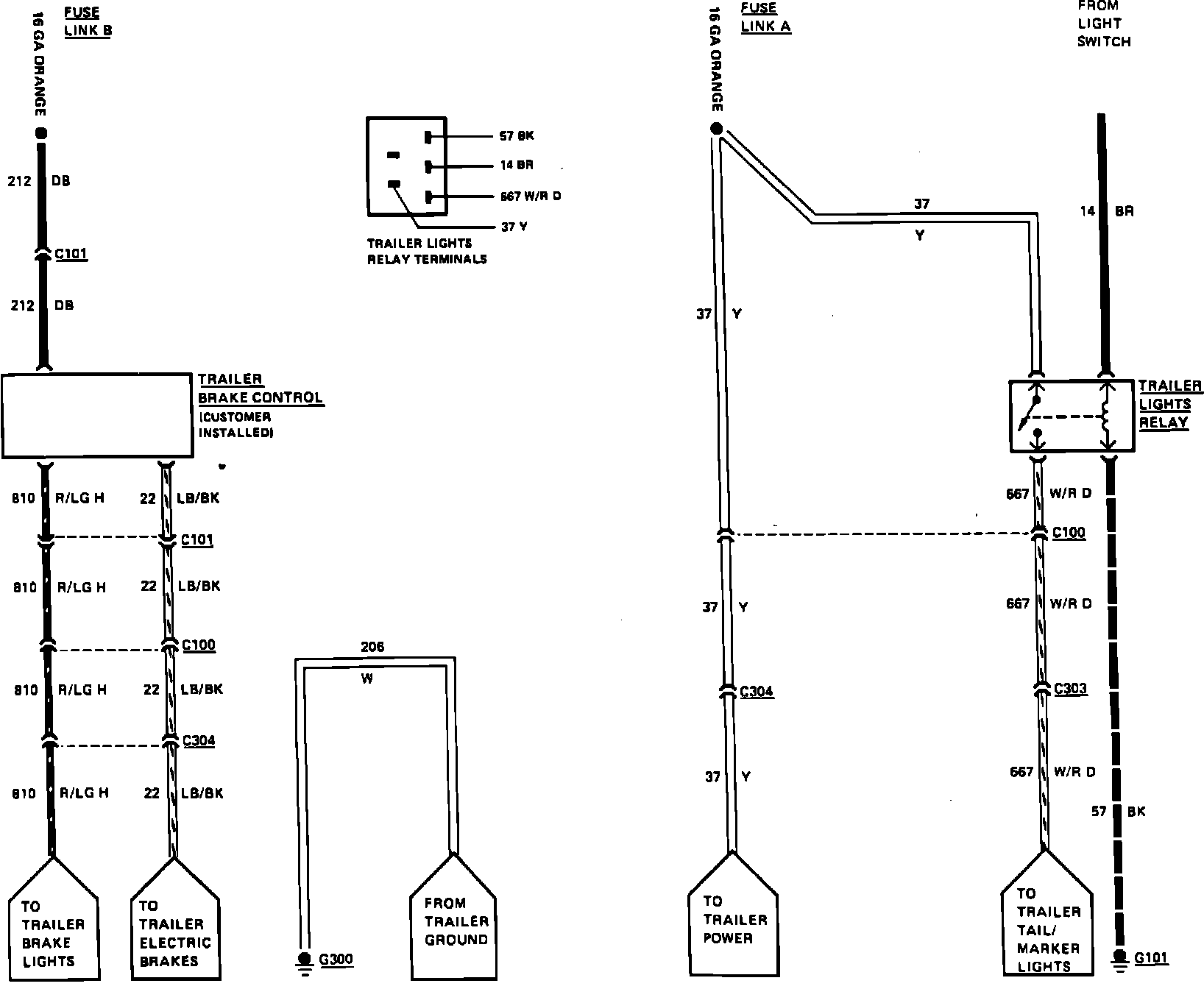

Fig. 64 Trailer Towing Option Wiring Circuit. 1983-84 Bronco II & Ranger:
