Ford Truck
>>
1984
>>
Ranger 4WD L4-134 2.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
System Diagram

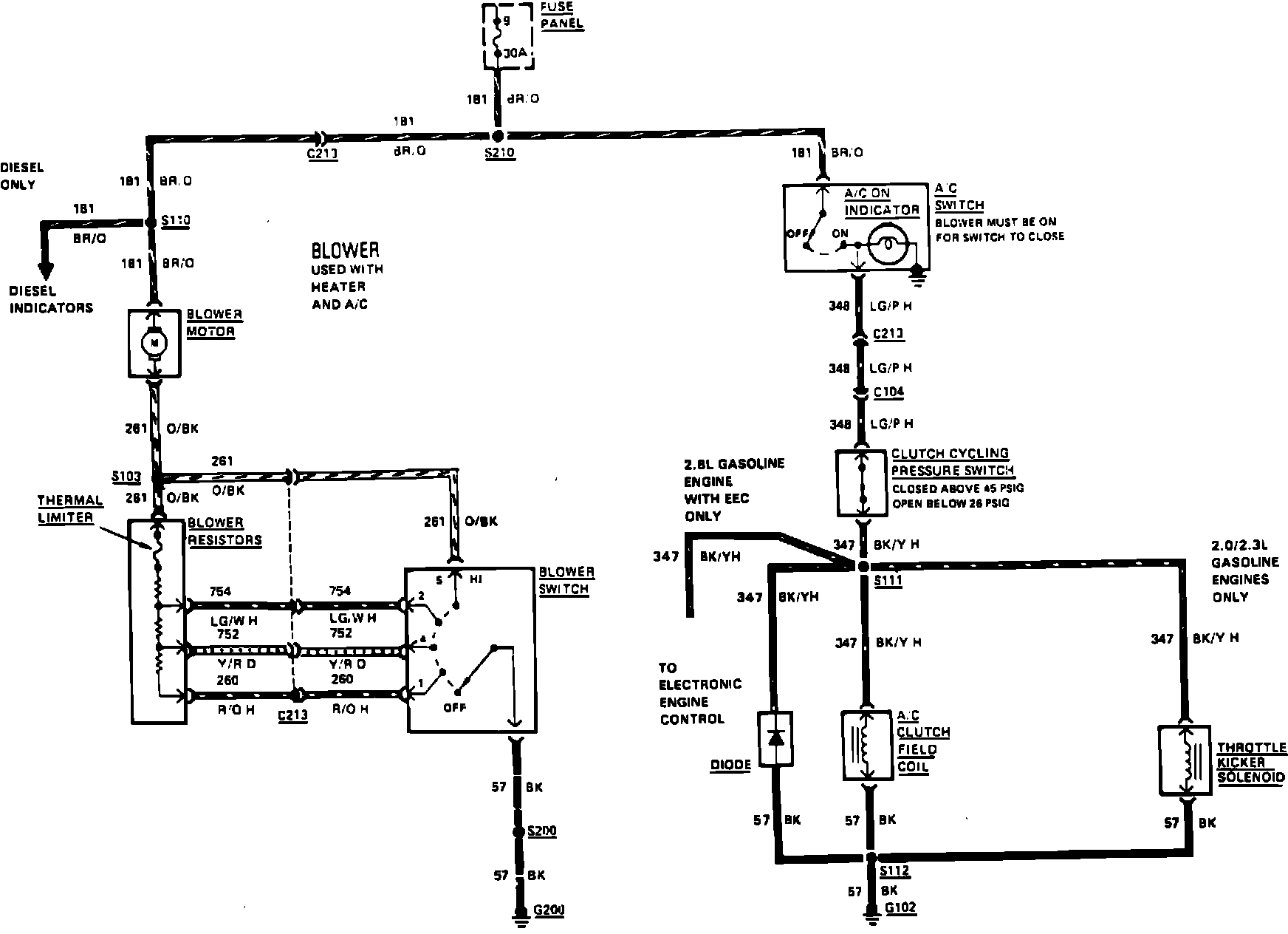

Fig. 5 Air Conditioning & Heater Wiring Circuit. 1984 Bronco II & Ranger:
