System Diagram

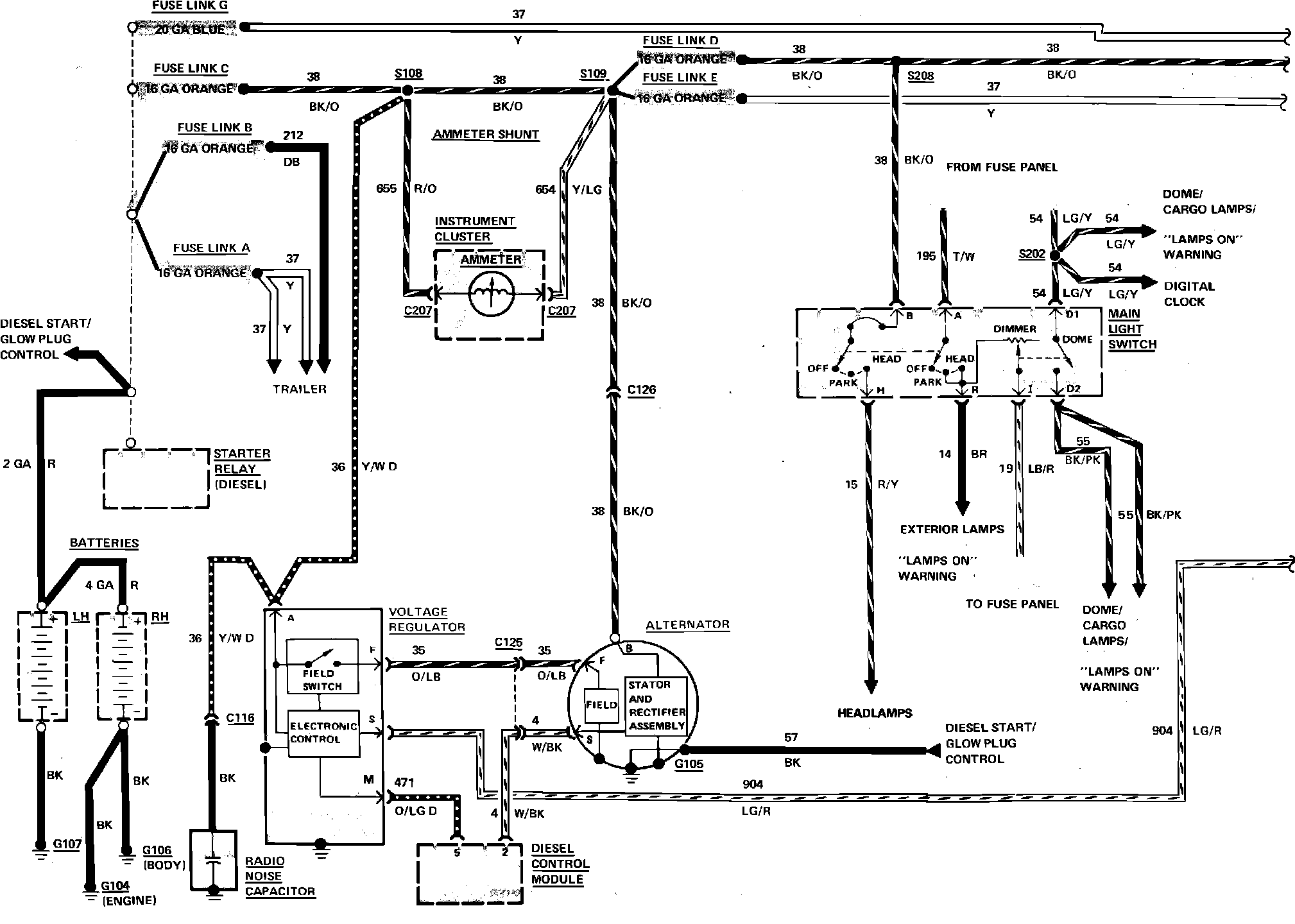

Fig. 16 Charging System & Power Distribution Wiring Circuit (Part 1 of 2). 1984 Ranger With Diesel Engine:

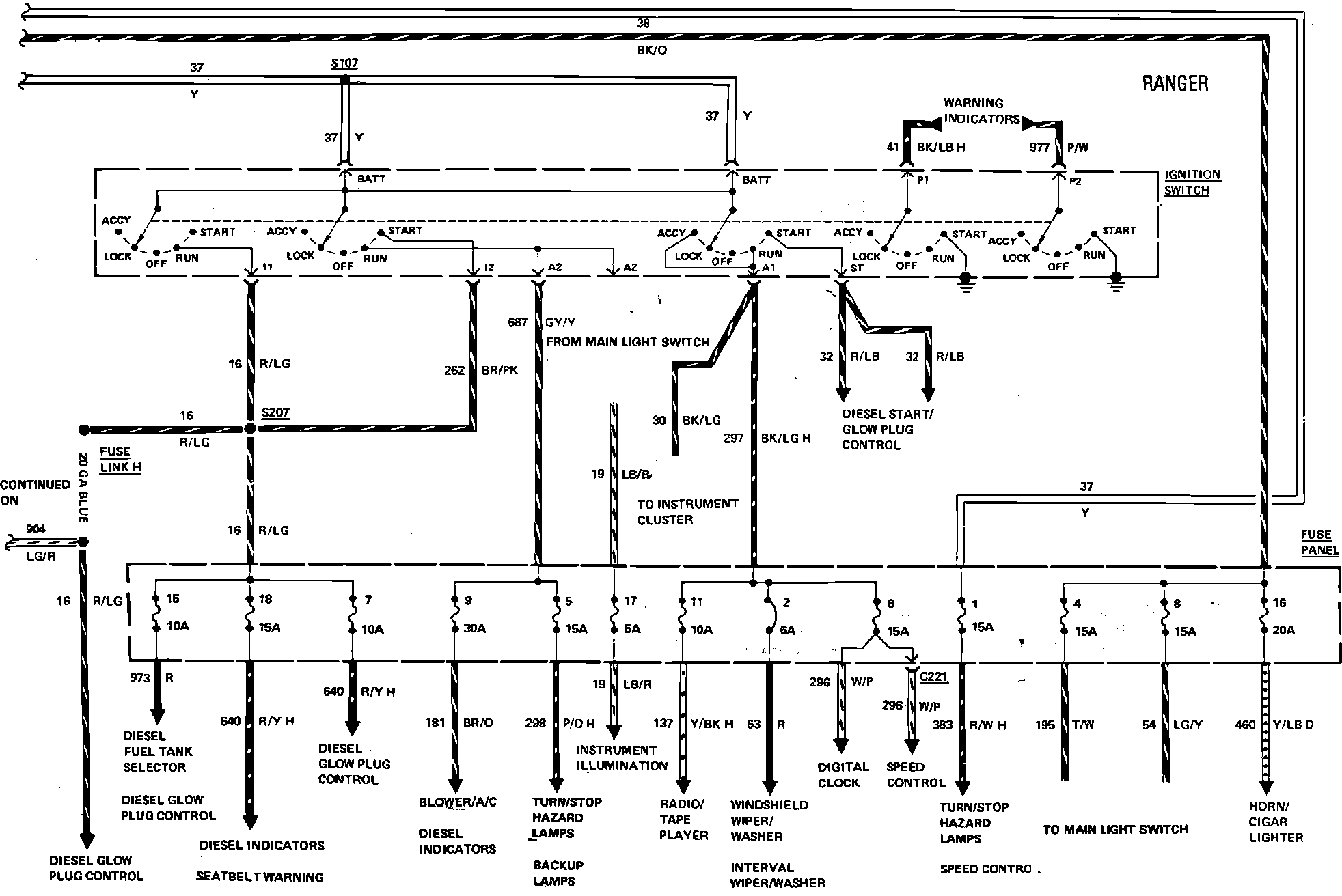

Fig. 16 Charging System & Power Distribution Wiring Circuit (Part 2 of 2). 1984 Ranger With Diesel Engine:
