Ford Truck
>>
1984
>>
Ranger 4WD L4-122 2.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>

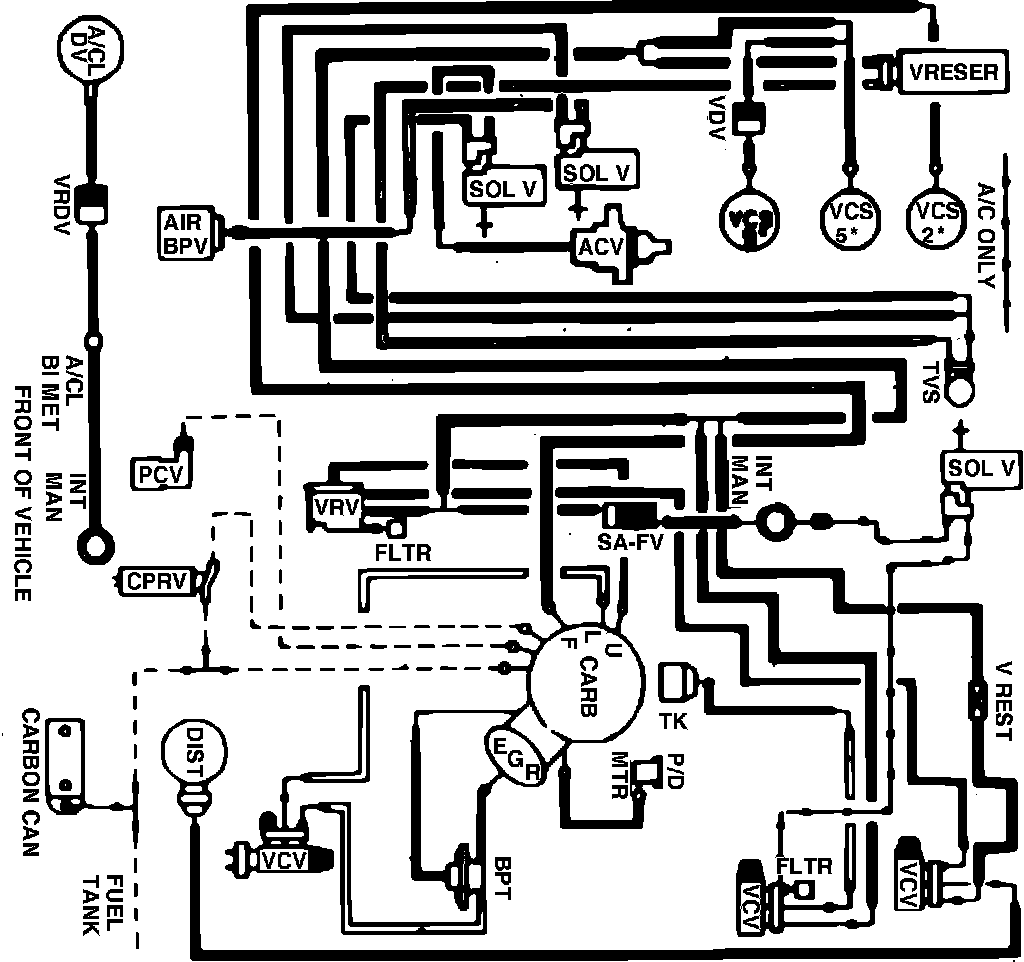

Fig. 38 Calib. Code 3-41S-R18
Fig. 38 Calib. Code 3-41S-R18
Fig. 38 Vacuum hose routing. 1984 4-122 calib. code 3-41S-R18:
