Fig. 37 Calib. Code 3-41P-R15
Fig. 37 Calib. Code 3-41P-R15

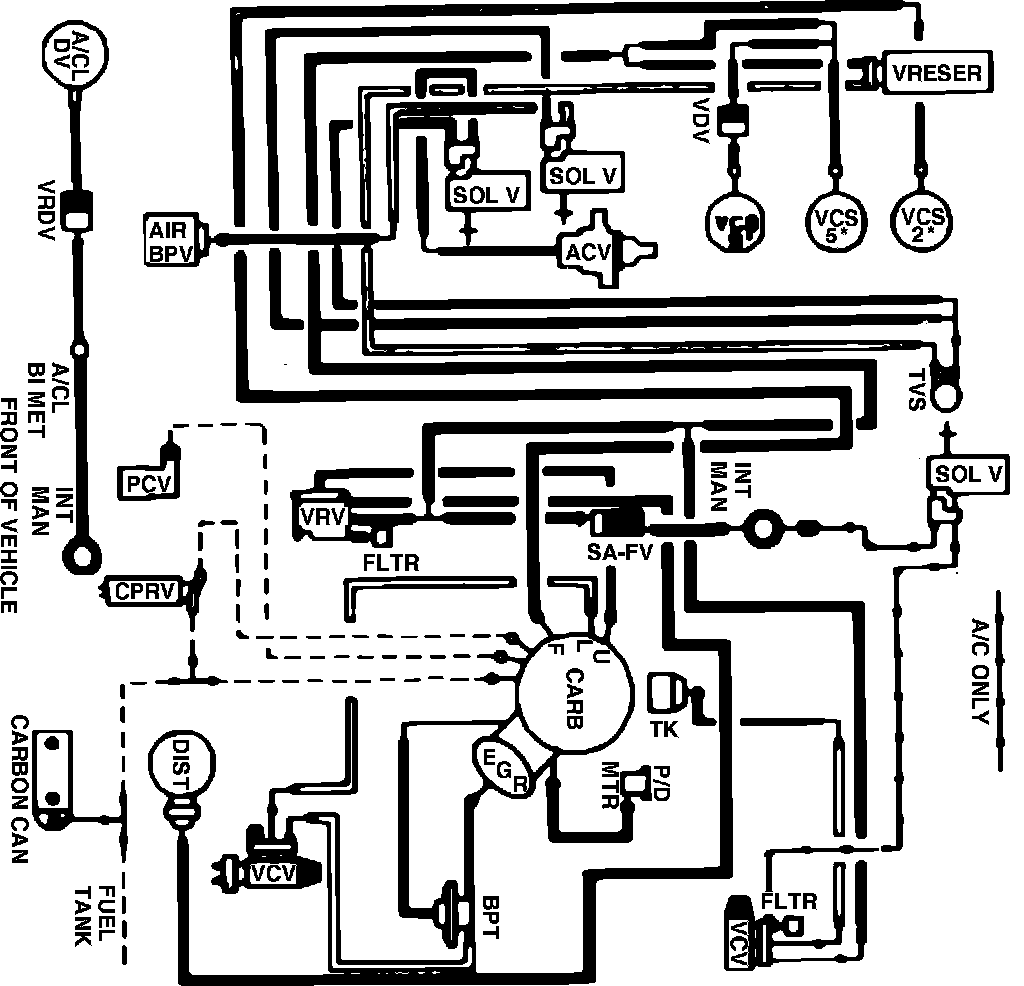

Fig. 37 Vacuum hose routing. 1984 4-122 calib. code 3-41P-R15:
