Less Intermittent Wipers
Less Intermittent Wipers

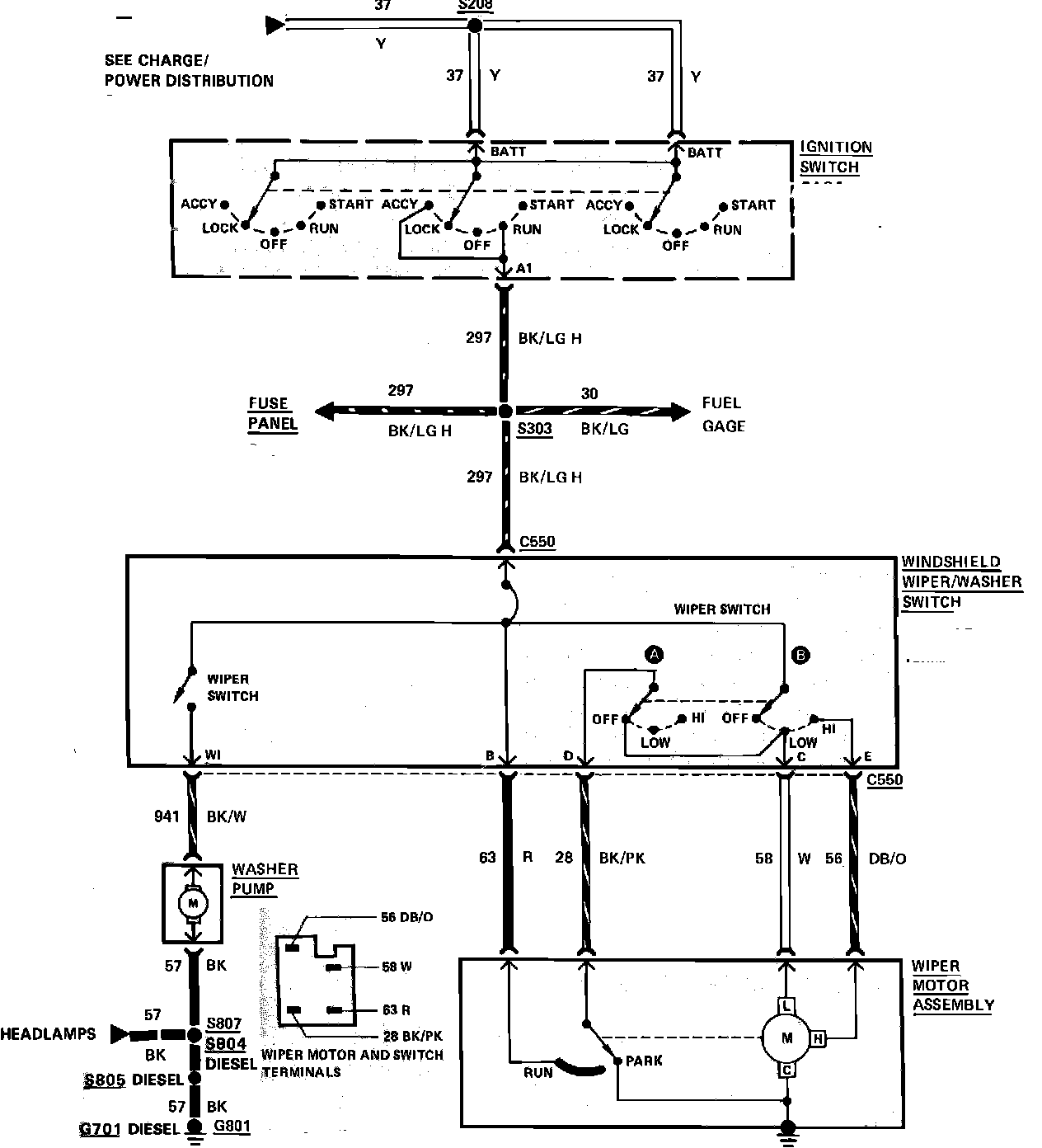

Fig. 133 Windshield wiper & washer wiring circuit. 1984 Bronco & F100-350 less intermittent wipers:
