Charging System

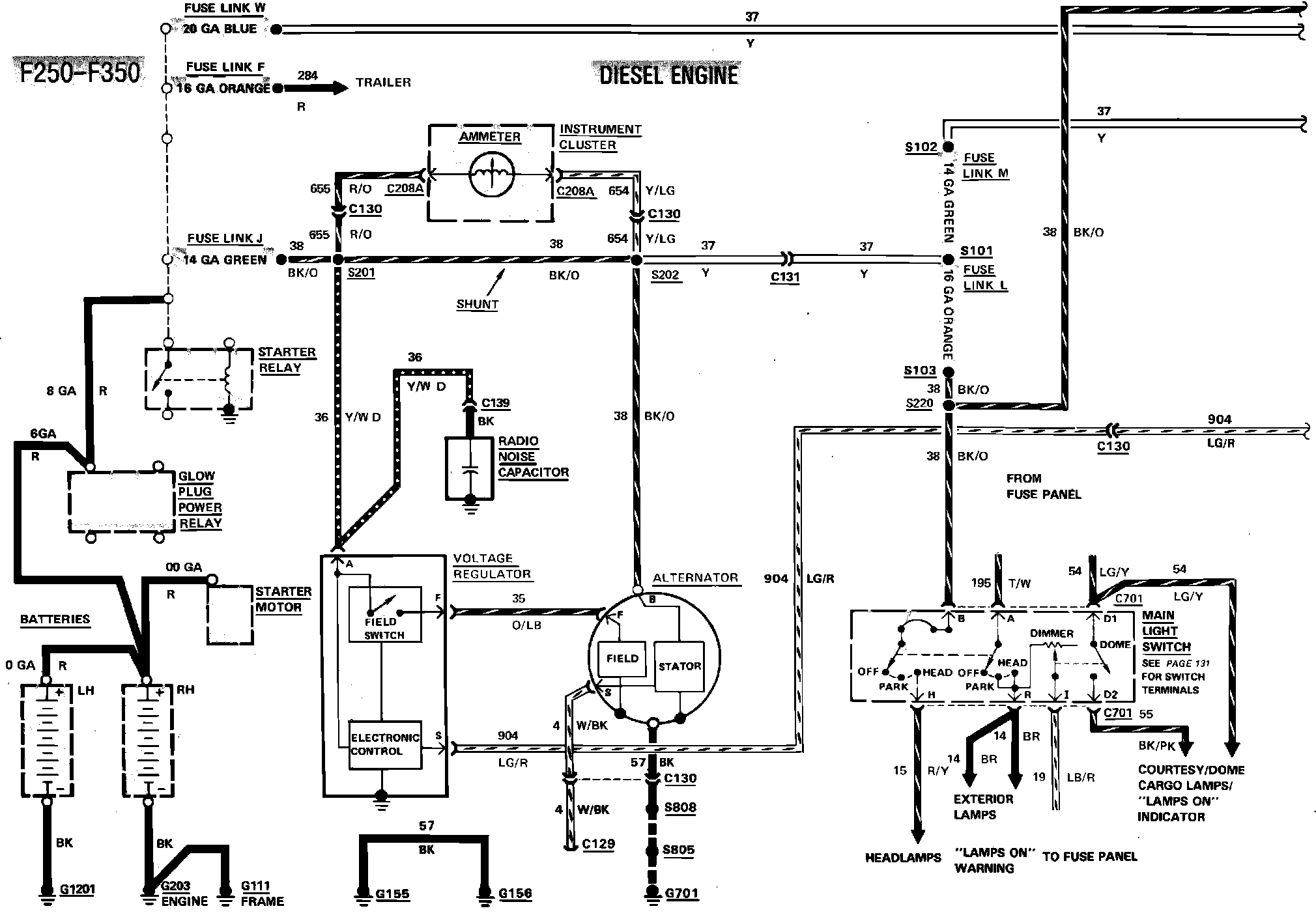

Fig. 30 Charging system & power distribution wiring circuit (Part 1 of 2). 1984 F250-350 with diesel engine:

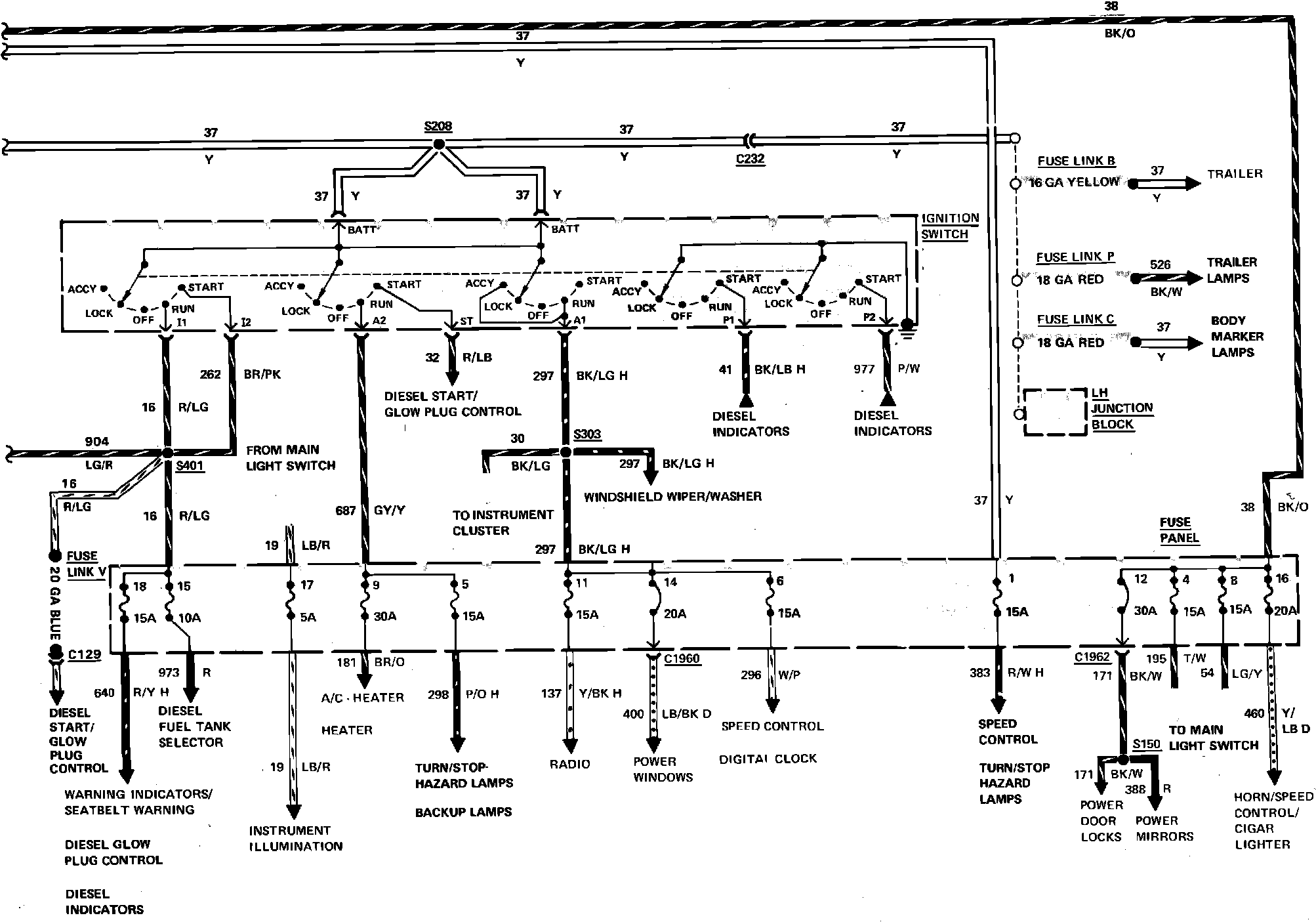

Fig. 30 Charging system & power distribution wiring circuit (Part 2 of 2). 1984 F250-350 with diesel engine:
