Power Door Lock Switch: Diagrams

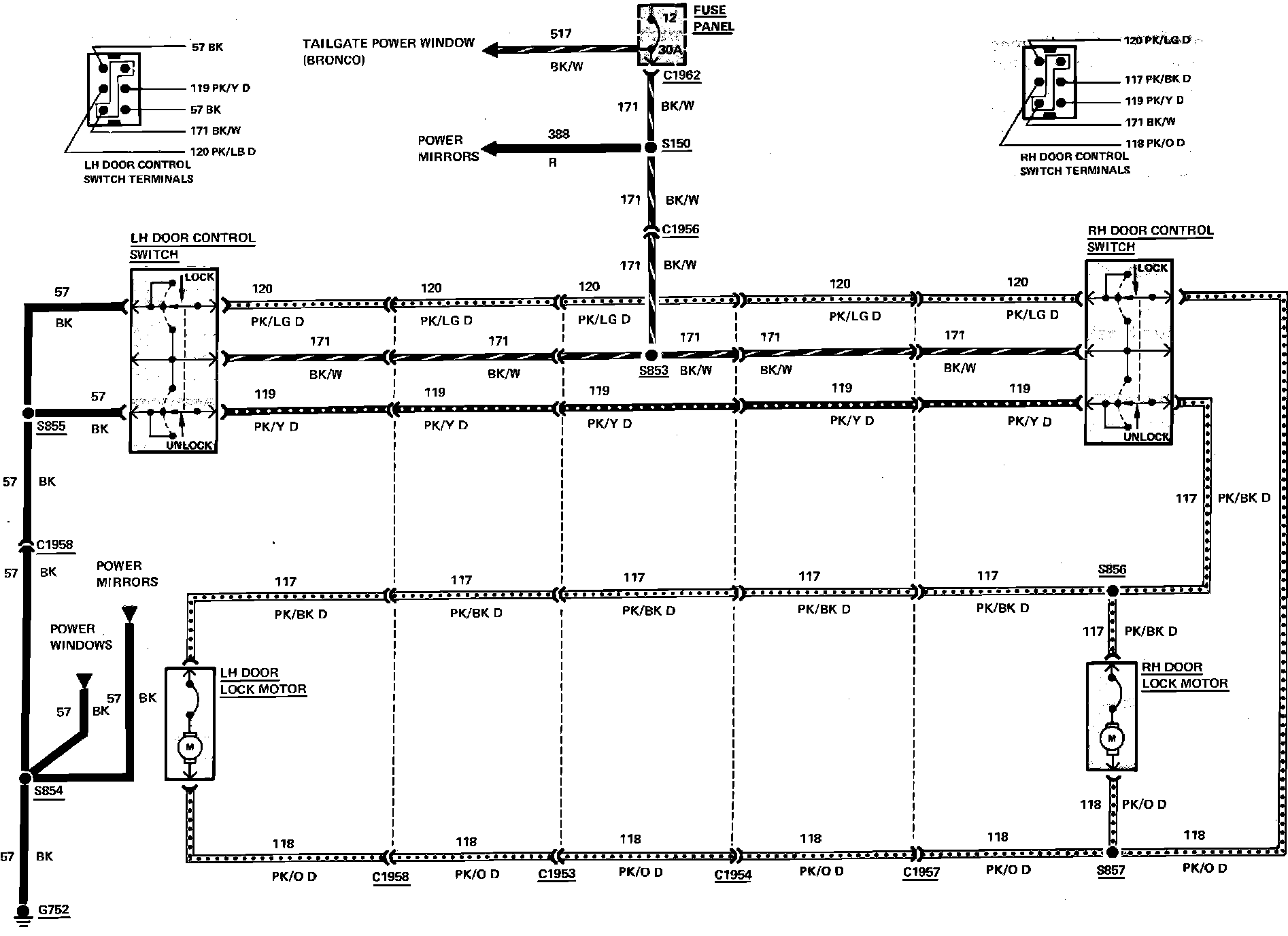

Fig. 105 Power door lock wiring circuit. 1983-84 Bronco & F100-350:
