Starting System: Diagrams

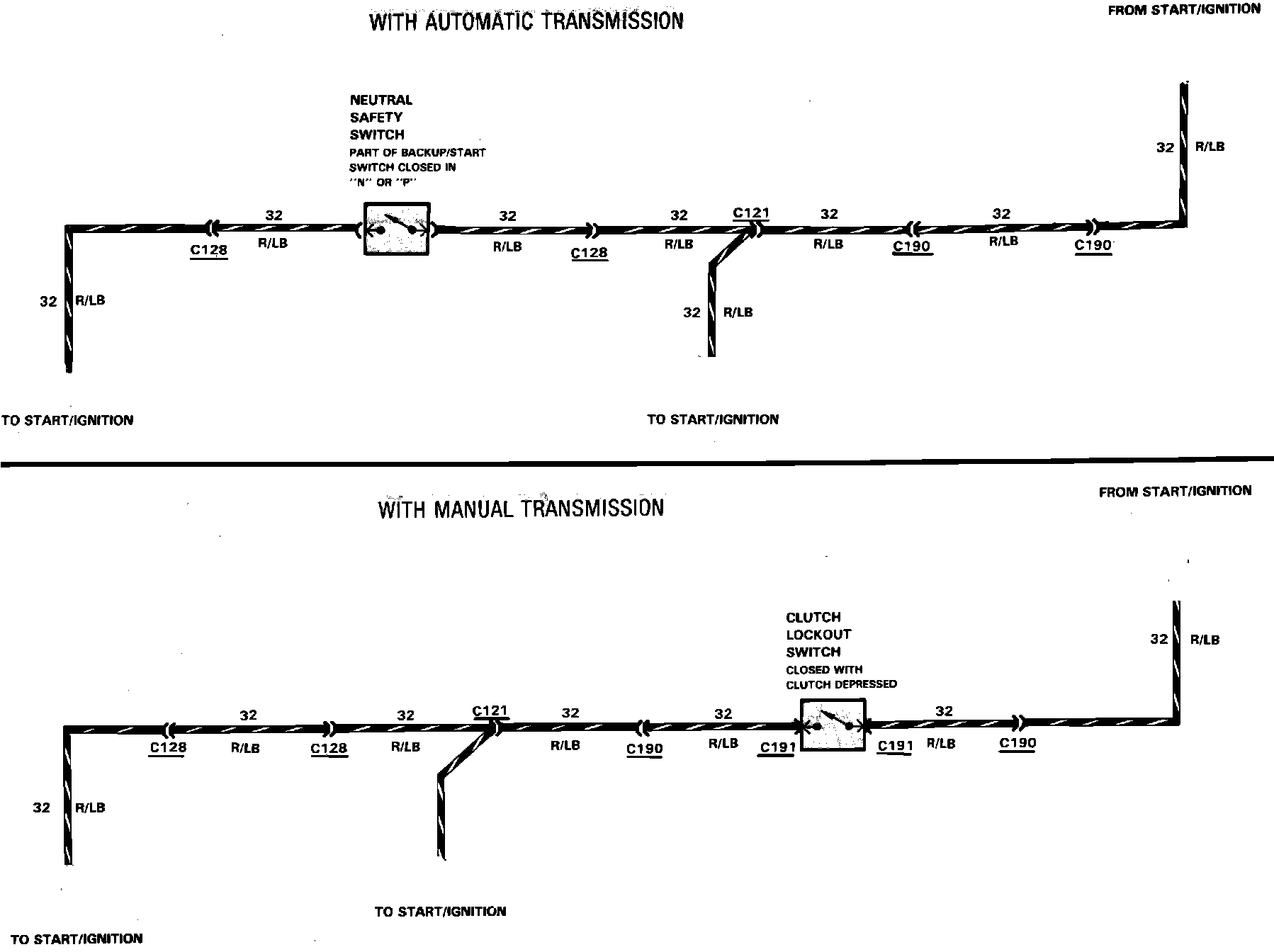

Fig. 87 Ignition & starting W/O EEC:

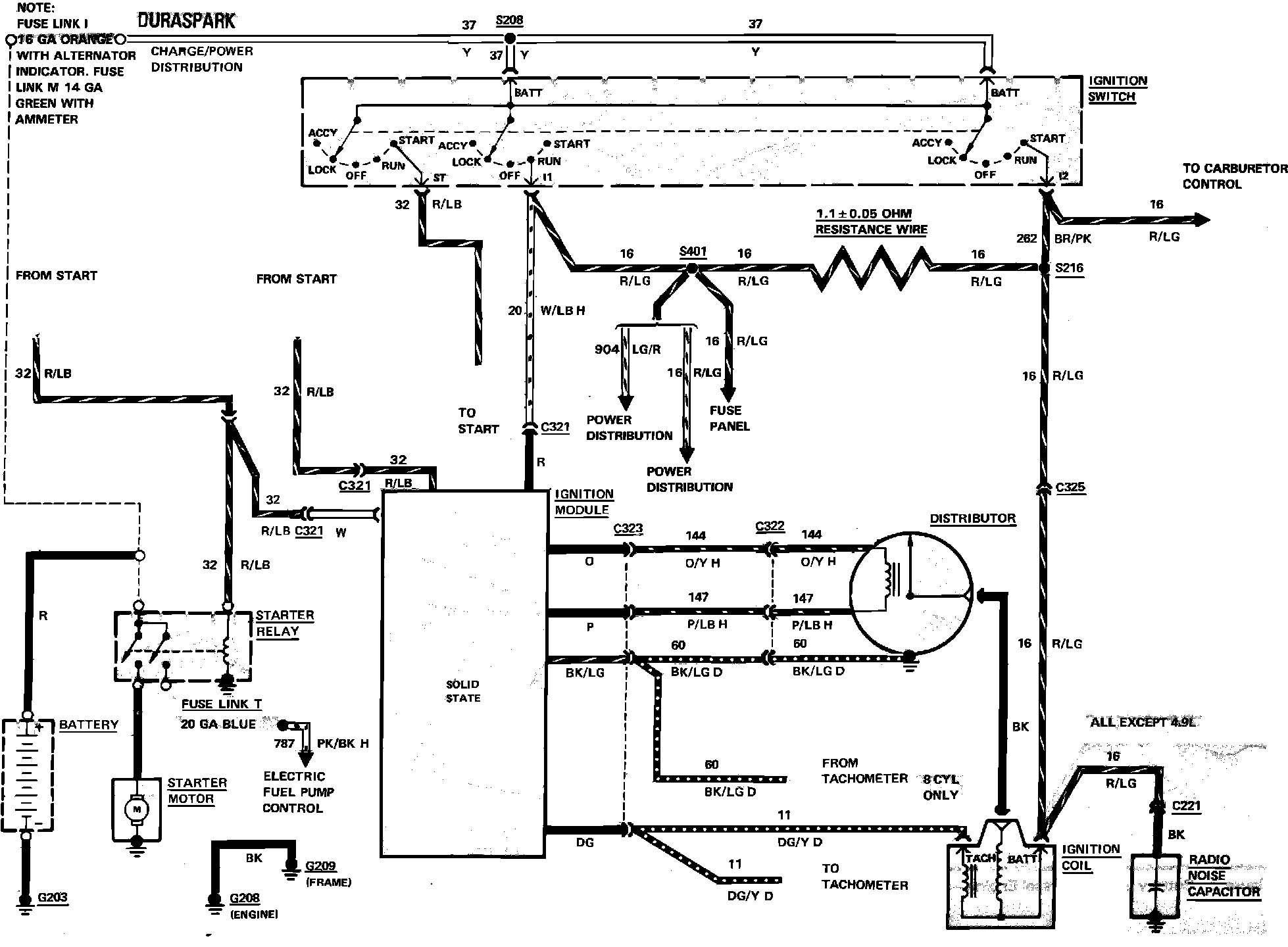

Fig.88 Ignition & starting (Part 1 of 2). 1984 Bronco & F100-350 with gas EEC:

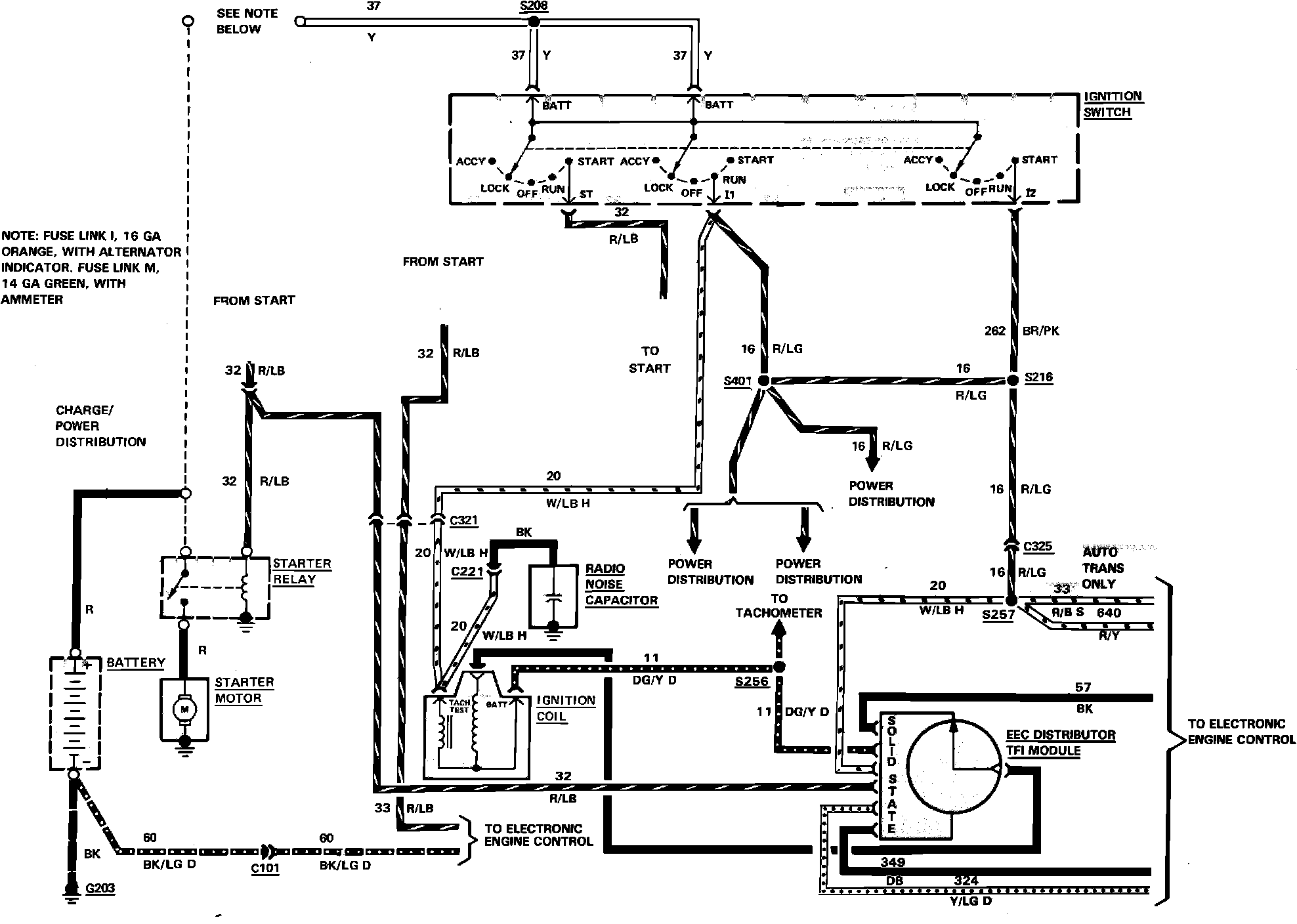

Fig.88 Ignition & starting (Part 2 of 2). 1984 Bronco & F100-350 EEC:
