Powertrain Management: Diagrams

Fig. 56 Electronic engine control wiring circuit (Part 1 of 2). 1984 Bronco & F100-350 with V8 engine:

Fig. 56 Electronic engine control wiring circuit (Part 2 of 2). 1984 Bronco & F100-350 with V8 engine:

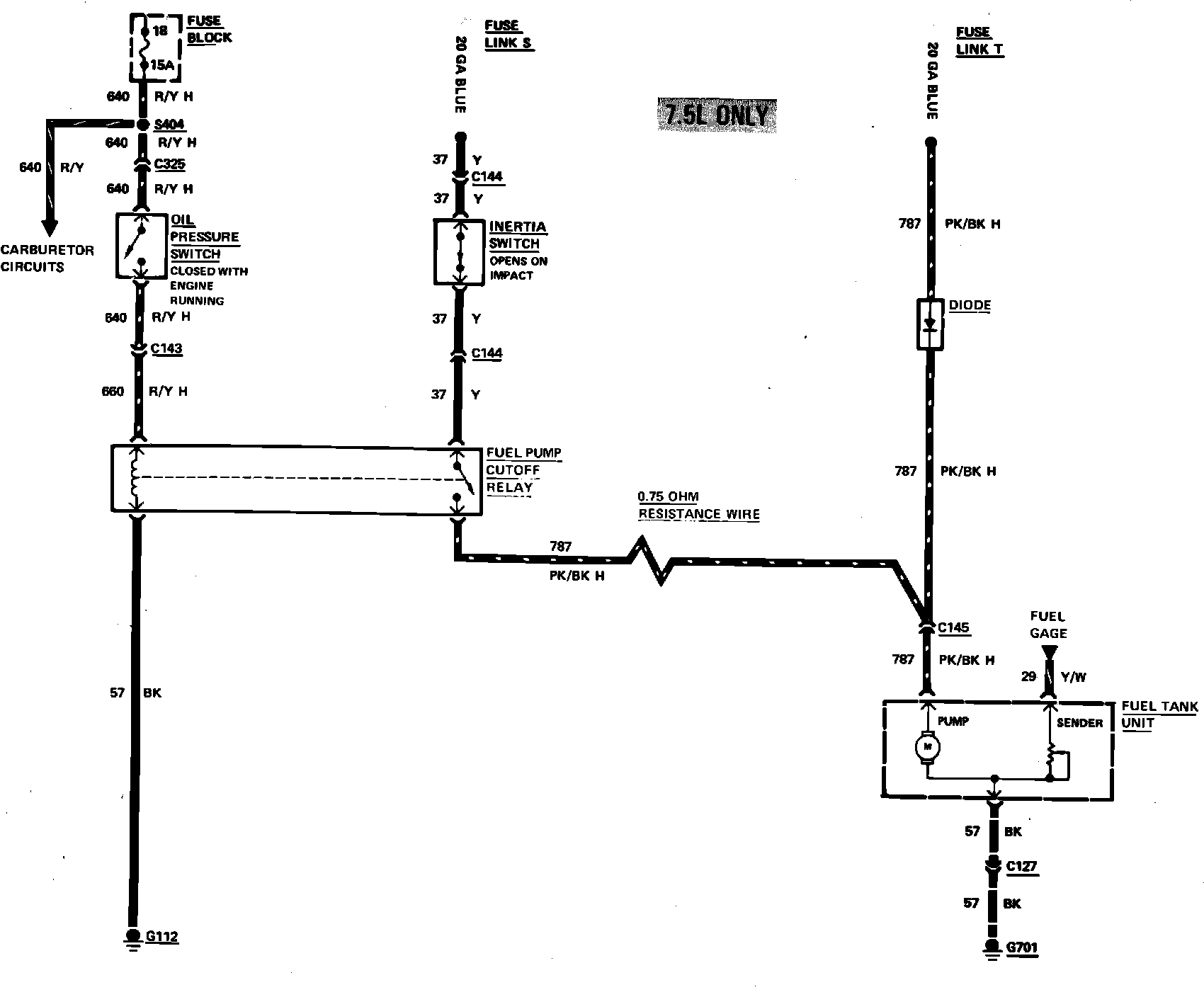

Fig. 43 Electric fuel pump wiring circuit. 1983 Bronco & F100-350 With Single Fuel Tank:

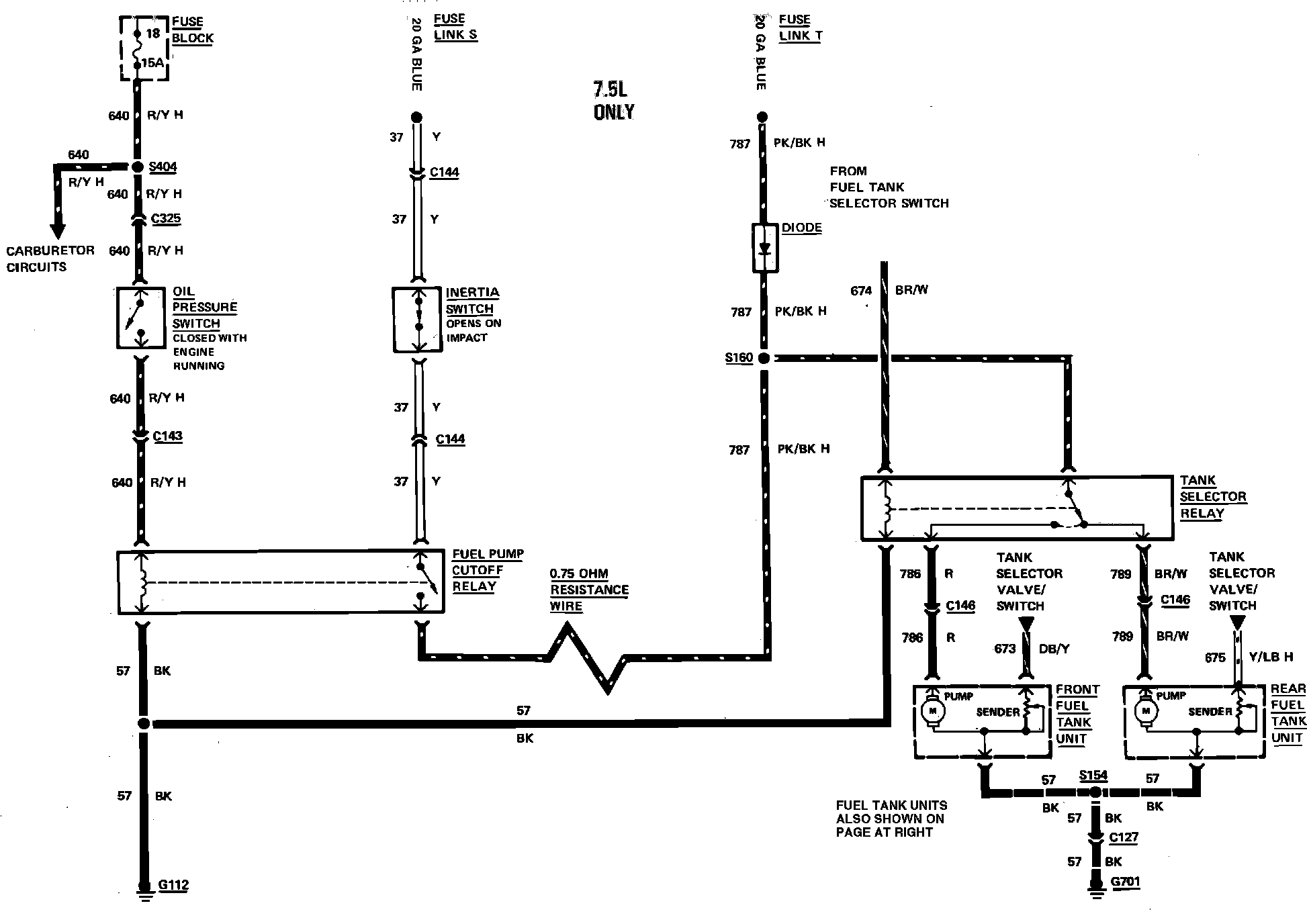

Fig. 44 Electric fuel pump wiring circuit (Part 1 of 2). 1983 Bronco & F100-350 with dual fuel tank:

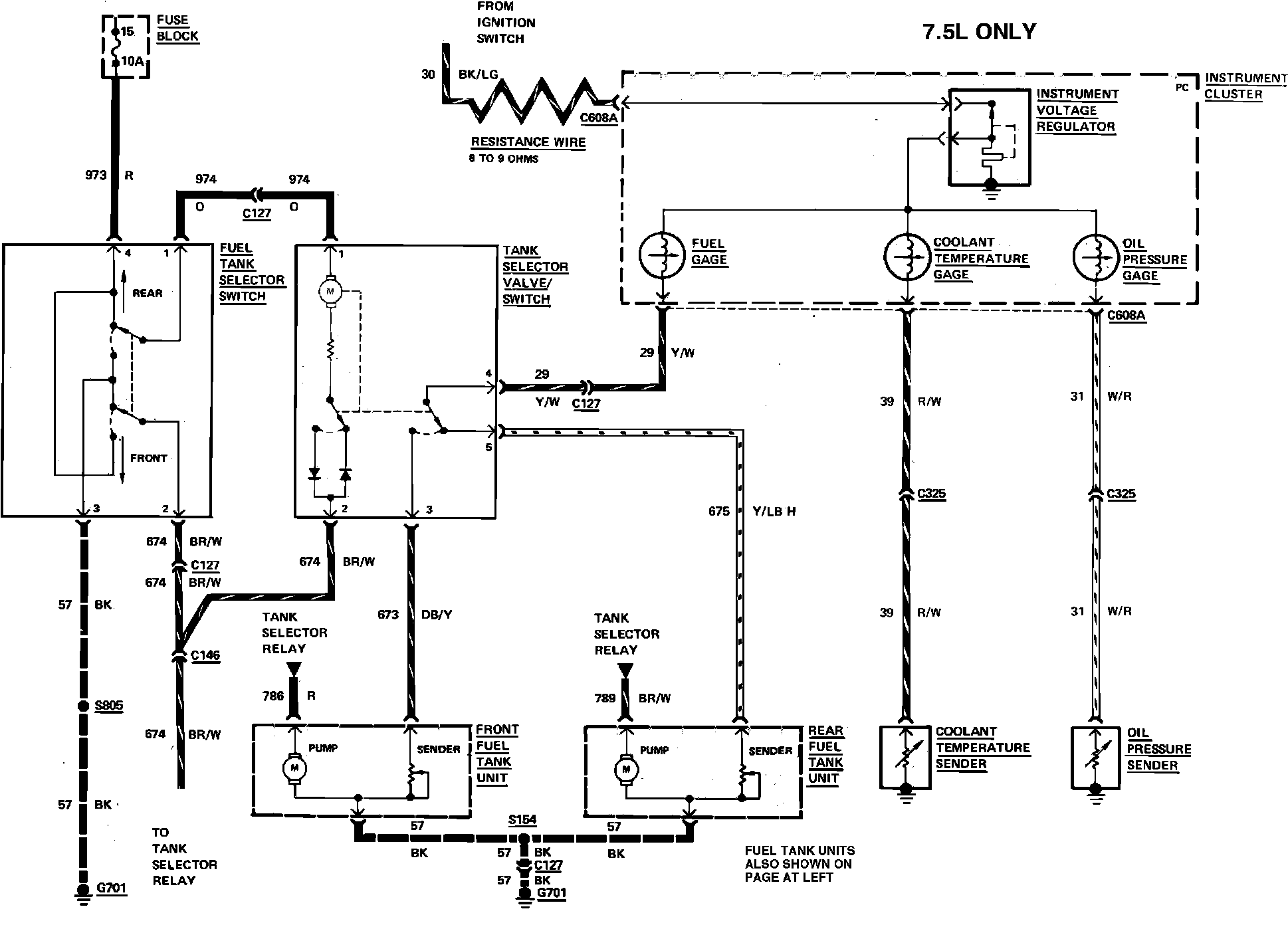

Fig. 44 Electric fuel pump wiring circuit (Part 2 of 2). 1983 Bronco & F100-350 with dual fuel tank:
