System Diagram
System Diagram

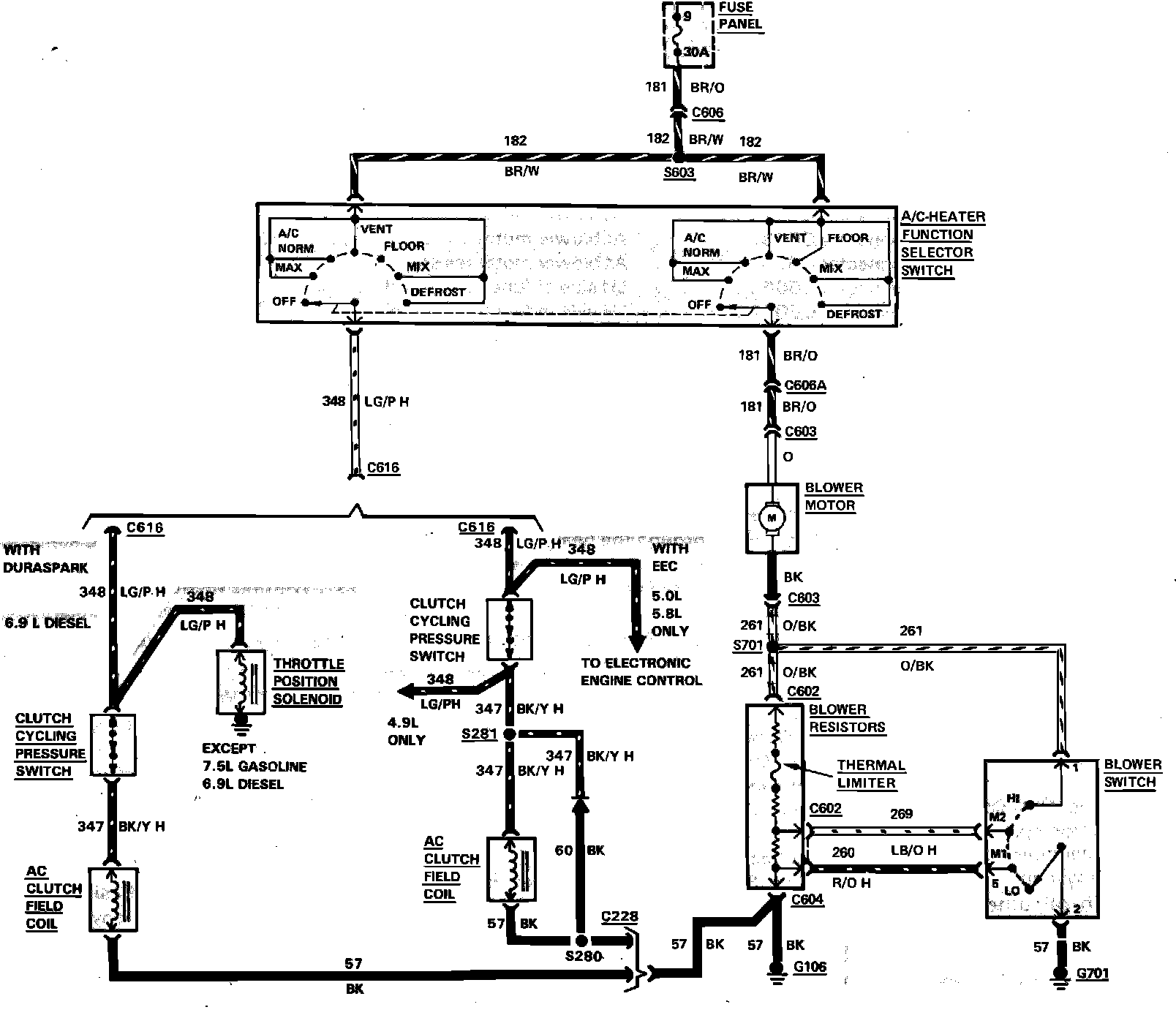

Fig. 11 Air conditioning & heater wiring circuit. 1984 Bronco & F100-350:
