Engine Controls

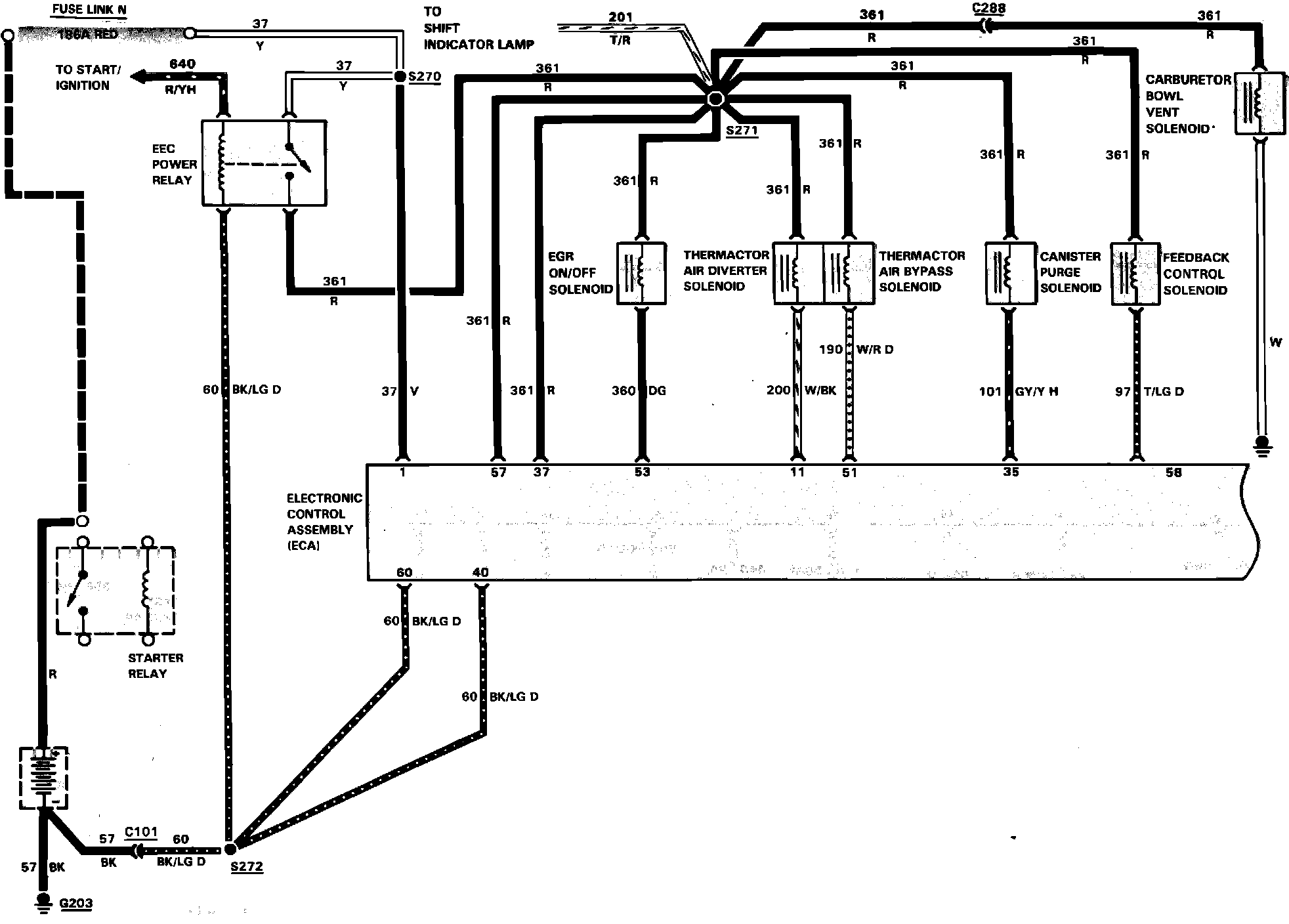

Fig. 55 Electronic engine control wiring circuit (Part 1 of 2). 1984 Bronco & F100-350 with 6-300 engine:






Fig. 55 Electronic engine control wiring circuit (Part 2 of 2). 1984 Bronco & F100-350 with 6-300 engine:
