Ford Truck
>>
1984
>>
E 350 Van V8-6.9L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Battery
Battery

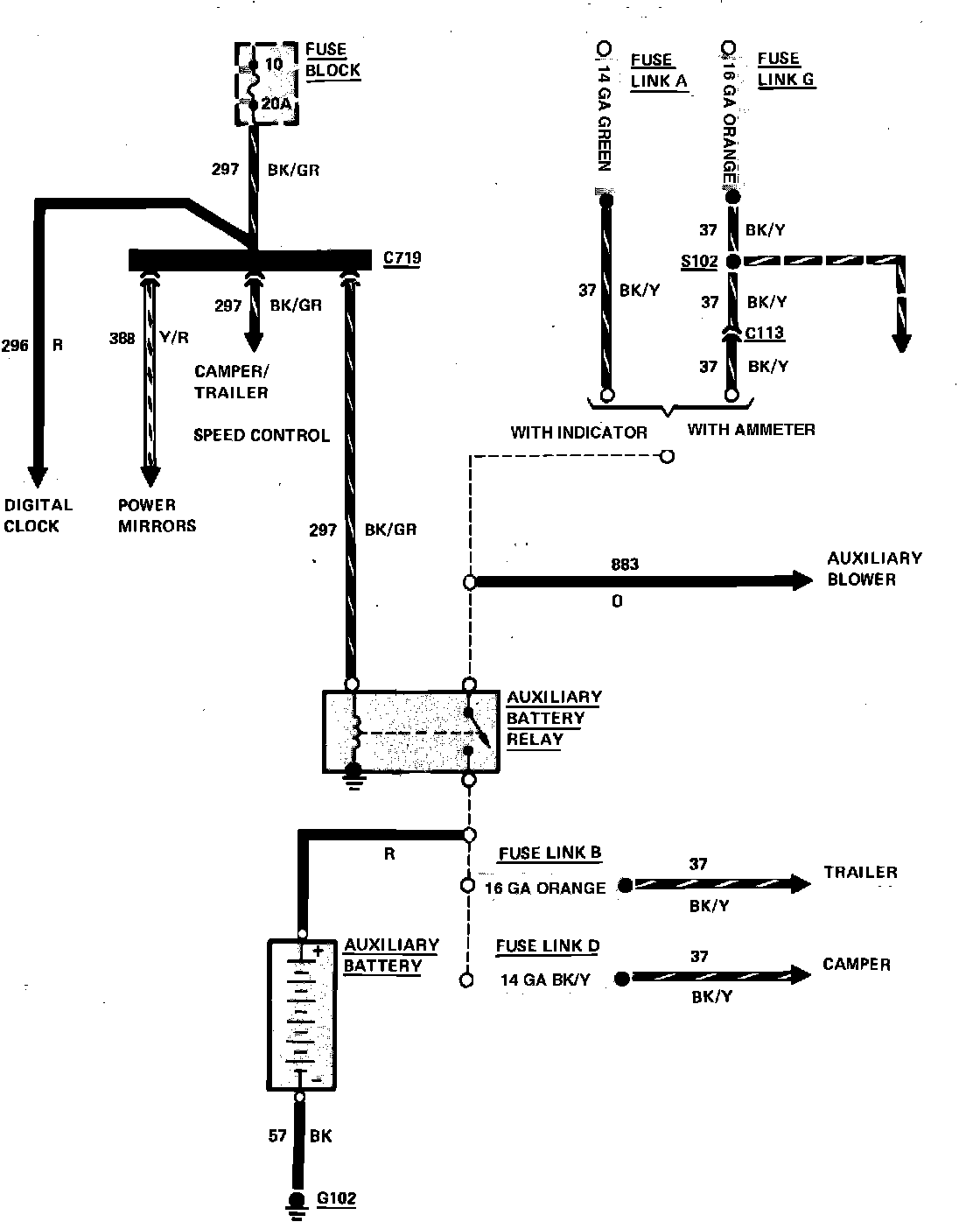

Fig. 16 Auxiliary battery wiring circuit. 1984 Econoline:
