Emissions Decal - Information Revision

84ford18

Article No. 84-4-28


EMISSIONS - DECAL - VEHICLE EMISSION CONTROL INFORMATION REVISION - VEHICLES EQUIPPED WITH

5.8L W/EEC IV ENGINE (50S AND ALTITUDE ONLY)


LIGHT TRUCKS 1984 F-150/250, E-150/250 AND BRONCO

CALIBRATIONS: 4-63H-R00, 4-64H-R00, 4-64Y-R00, 4-64T-R00

This article revises the vehicle emission control diagram of early 1984 production units to include the air cleaner bi-metal symbol.

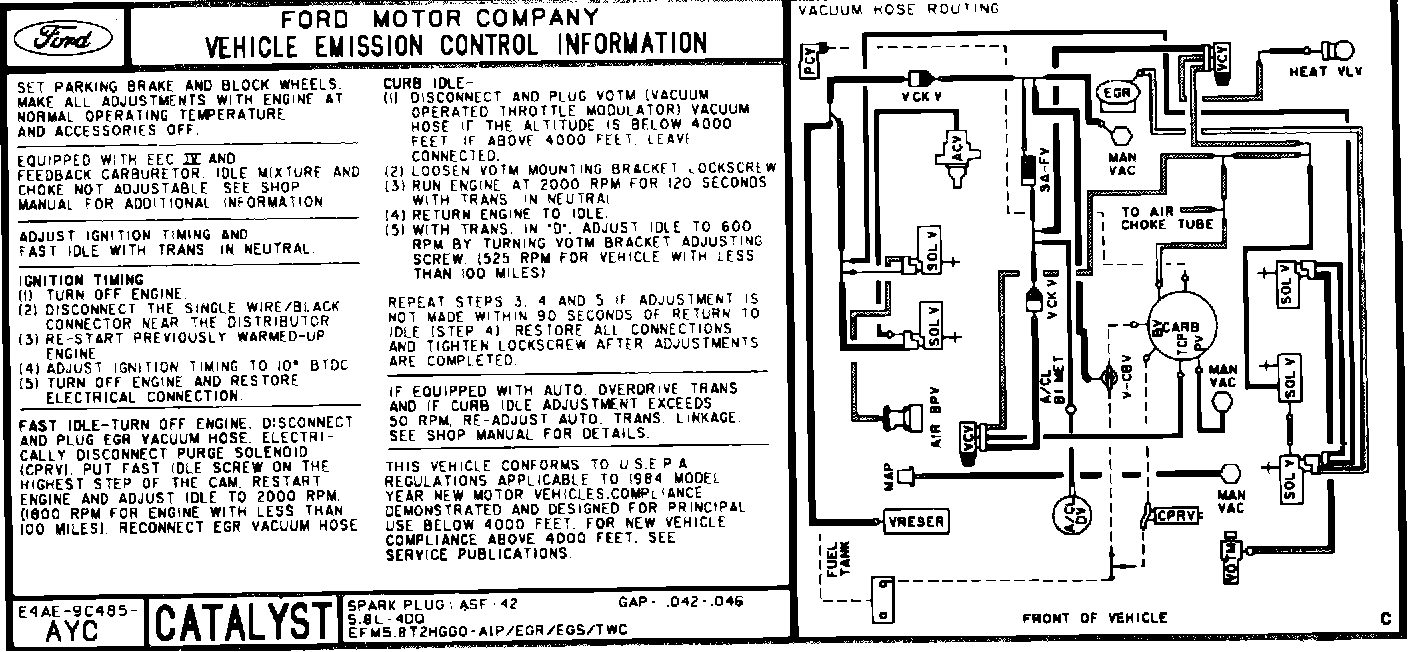

FIGURE 32:

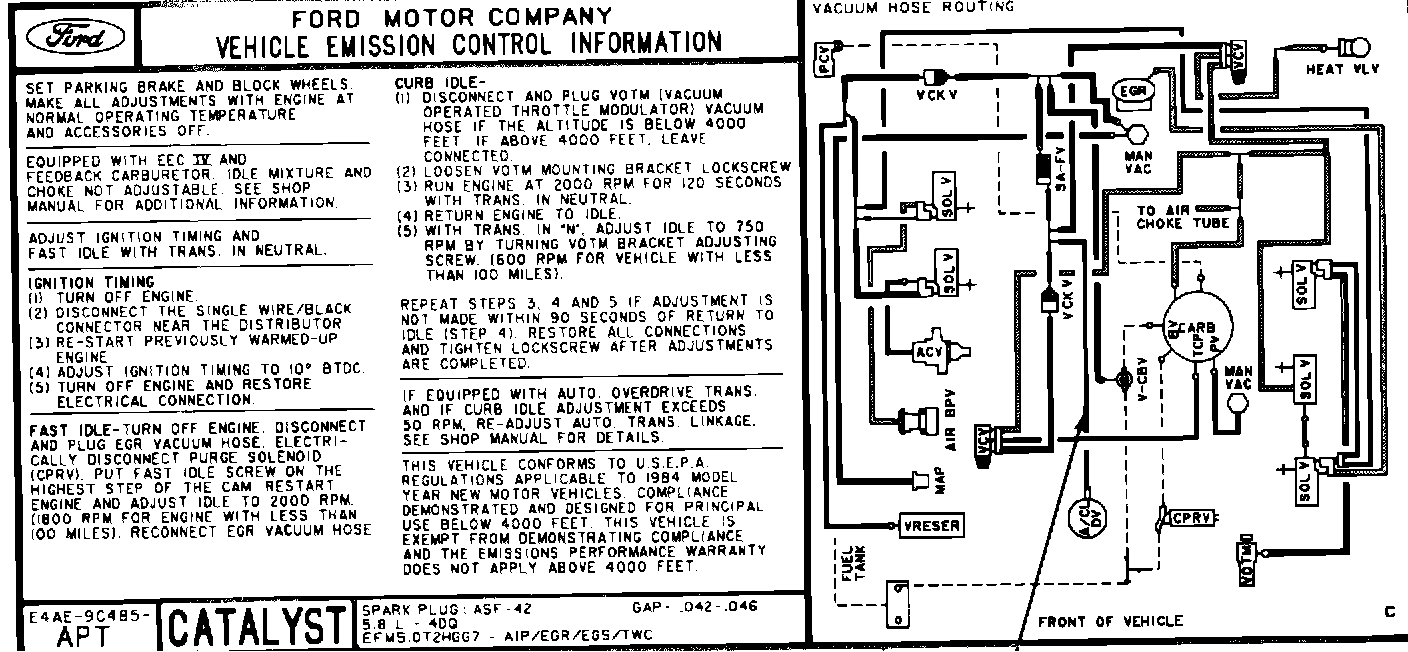

FIGURE 33:

Some early production (Job #1) vehicles may have been built with the emission control information decal not reflecting the air cleaner bi-metal symbol (A/CL BI-MET) (Figure 32). It should be noted that the engine is correctly built. Using a Sharpie #49 pen, add the air cleaner bimetal sensor symbol to the emission control diagram as shown in Figure 32. Vehicles built after February 1, 1984 should have emission control diagrams that include the air cleaner bi-metal symbol as shown in Figure 33.

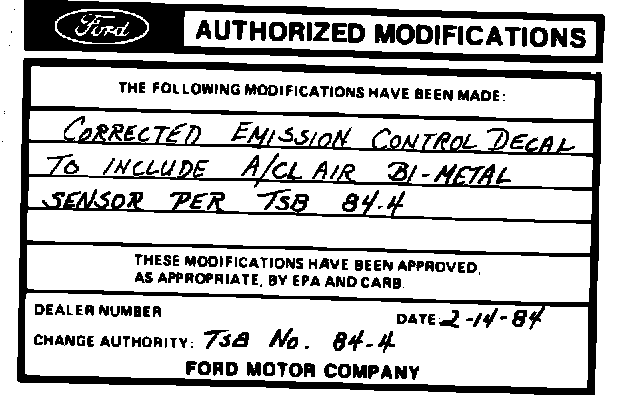

Obtain an Authorized Modifications decal and list the date, dealer number and summary of alterations performed. Select a prominent place adjacent to the Vehicle Emission Control Information decal suitable for installing the Authorized Modifications decal. Clean the area, install the decal and cover it with a clear plastic decal shield.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Reimbursable within the provisions of the Warranty and Policy Manual.
OPERATION: SP9485A84
TIME: 0.2 Hr. DLR. CODING: Basic Part No. 9C485 Code: 82
