Fig. 140 Calib. Code 4-64Y-R0
Fig. 140 Calib. Code 4-64Y-R0

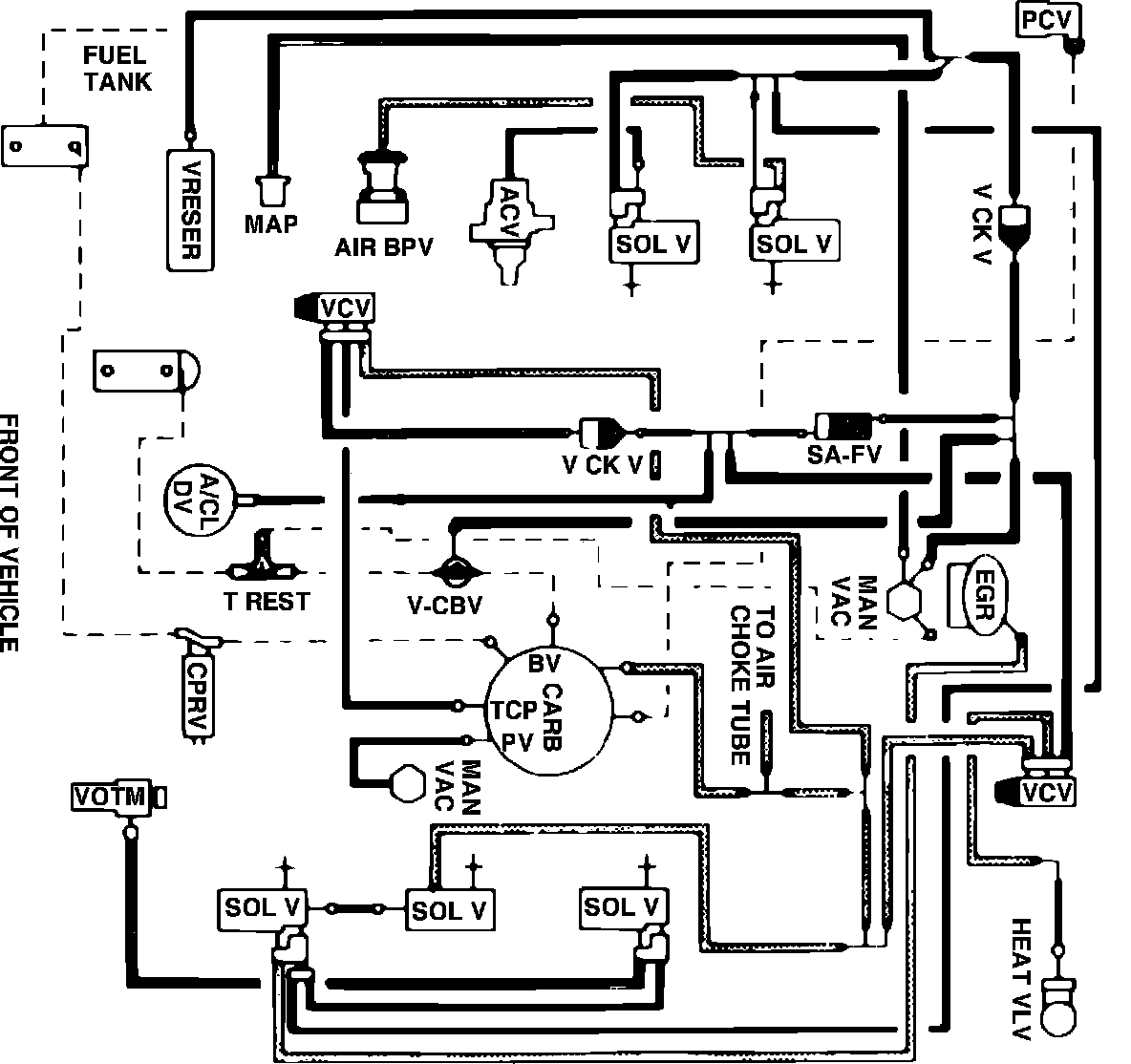

Fig. 140 Vacuum hose routing. 1984 V8-351 Calib. code 4-64Y-R0:
