Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Fig. 131 Calib. Code 4-63H-R0
Fig. 131 Calib. Code 4-63H-R0

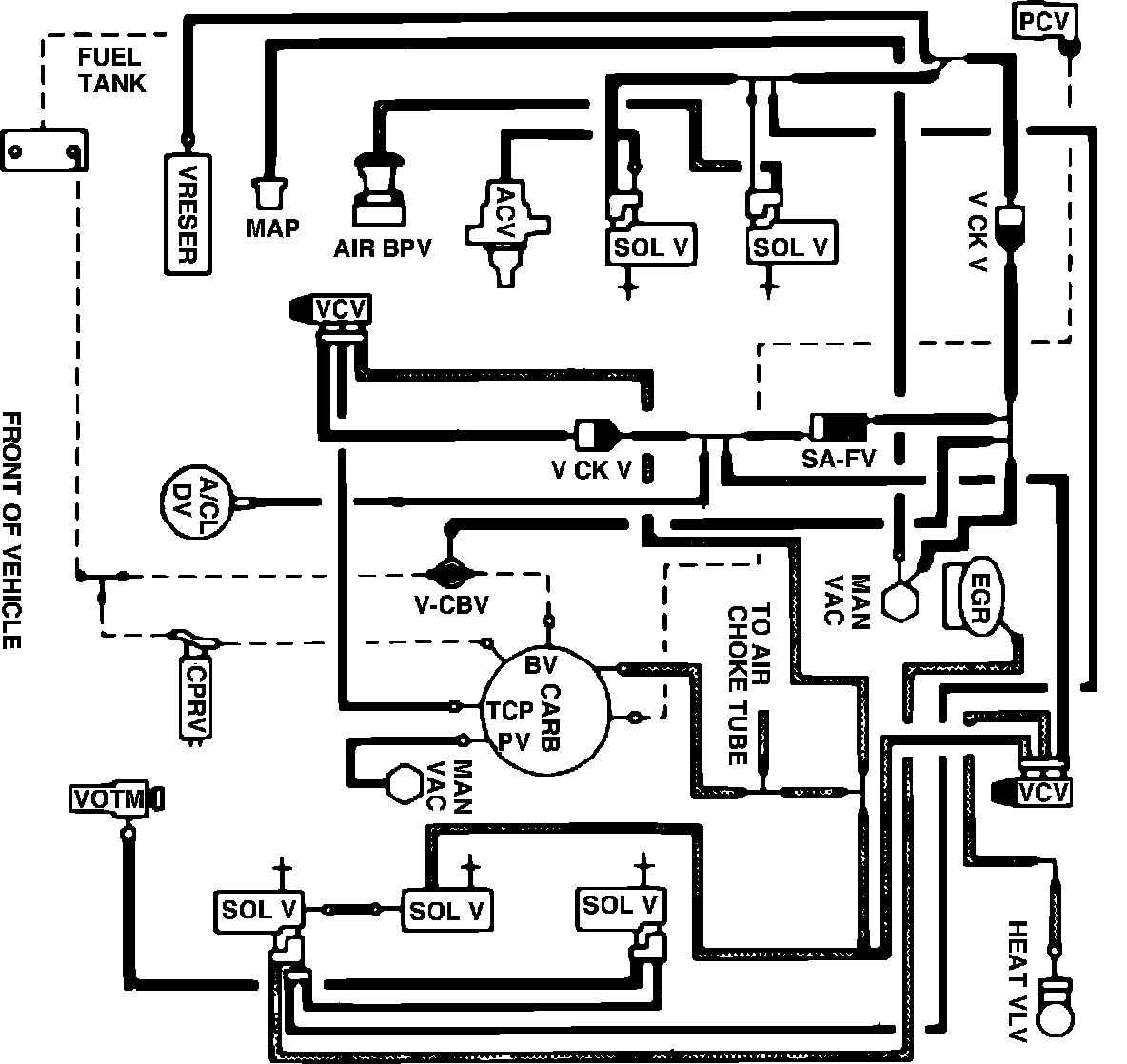

Fig. 131 Vacuum hose routing. 1984 V8-351 Calib. code 4-63H-R0:
